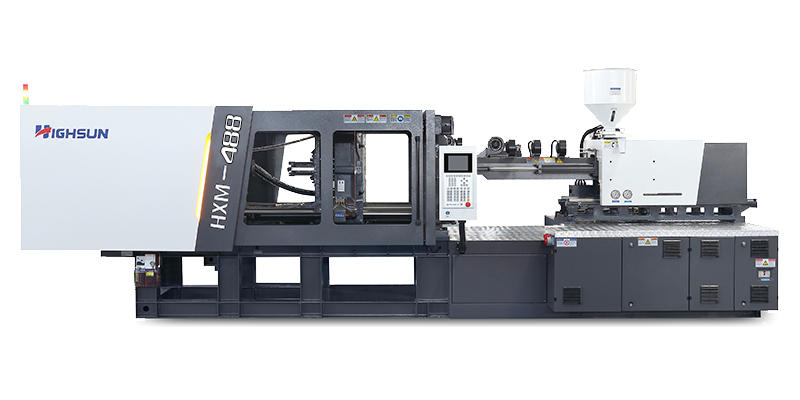

HIGHSUN PVC fitting machine, clamping force:218-1100T
1.Adopt the special design of screw & barrel for PVC material, install the air fan for cooling barrel to avoid the material overheating and coking;
2. Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding;
3.Extended width of security door for making PVC fitting mould with better installation, to suit PVC fitting molds (core puller cylinder) installation convenience;
4.Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution with complete hydraulic system and injection unit.
HX(*)470PVC |
||
Injection Unit |
||
Screw diameter |
mm |
75 |
Screw L/D ratio |
L/D |
20 |
Injection capacity in theory |
cm³ |
1634 |
Injection weight(PVC) |
g |
1961 |
Injection pressure |
MPa |
173 |
Injection rate |
g/s |
474 |
Plasticizing capacity |
g/s |
78 |
Screw speed |
rpm |
160 |
Clamping Unit |
||
Clamping force |
KN |
4700 |
Moving mould-plate stroke |
mm |
780 |
Max.Mould height |
mm |
820 |
Min.Mould height |
mm |
300 |
Space between tie-bars |
mm |
820x770 |
Hydraulic ejector force |
KN |
120 |
Hydraulic ejector stroke |
mm |
200 |
Ejector number |
n |
13 |
Other |
||
Pump pressure |
MPa |
16 |
Motor/Driving power |
KW |
30+23 |
Heating capacity |
KW |
23.15 |
Machine dimension |
m |
7.85x2.5x2.4 |
Machine weight |
t |
16.4 |
Oil tank capacity |
L |
687 |
