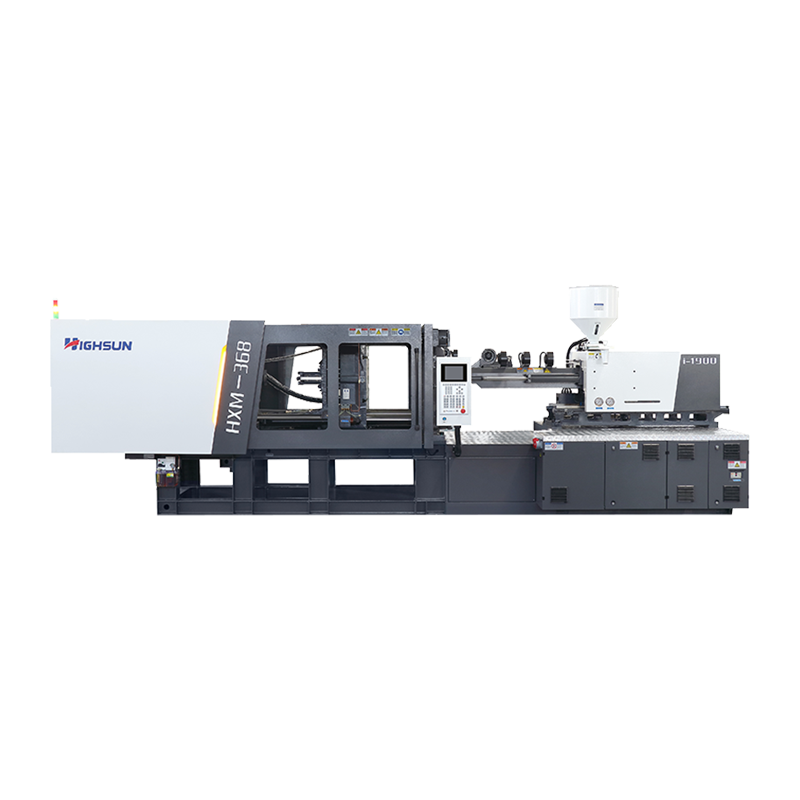

HXM368-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM368-PVC: PVC injection molding machine

The appearance of the equipment is meticulously designed in accordance with the principles of ergonomics. The operation interface is simple and intuitive, which enables operators to quickly and accurately set various process parameters and monitor the running status of the equipment in real time. This greatly improves the convenience of operation and production efficiency.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM368-PVC: PVC injection molding machine
PREV：HXM318-PVC: PVC injection molding machine
NEXT：HXM428-PVC: PVC injection molding machine

  • MODEL: HXM368PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    65

    SCREW L/D RATIO

    L/D

    21

    INJECTION CAPACITY IN THEORY

    cm3

    1161

    INJECTION WEIGHT(PVC)

    g

    1478

    INJECTION PRESSURE

    MPa

    204

    INJECTION RATE

    g/s

    375

    PLASTICIZING CAPACITY

    g/s

    59

    SCREW SPEED

    rpm

    160

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    3680

    MOVING MOULD-PLATE STROKE

    mm

    710

    MAX. MOULD HEIGHT

    mm

    750

    MIN. MOULD HEIGHT

    mm

    250

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    720*690

    HYDRAULIC EJECTOR FORCE

    KN

    134

    HYDRAULIC EJECTOR STROKE

    mm

    180

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40

    HEATING CAPACITY

    KW

    27.3

    MACHINE DIMENSION (L*W*H)

    m

    687*2.3*2.16

    MACHINE WEIGHT

    t

    12.92

    OIL TANK CAPACITY

    L

    420
