HXM488I/3300: HXM servo injection molding machine
HXM Servo Machine

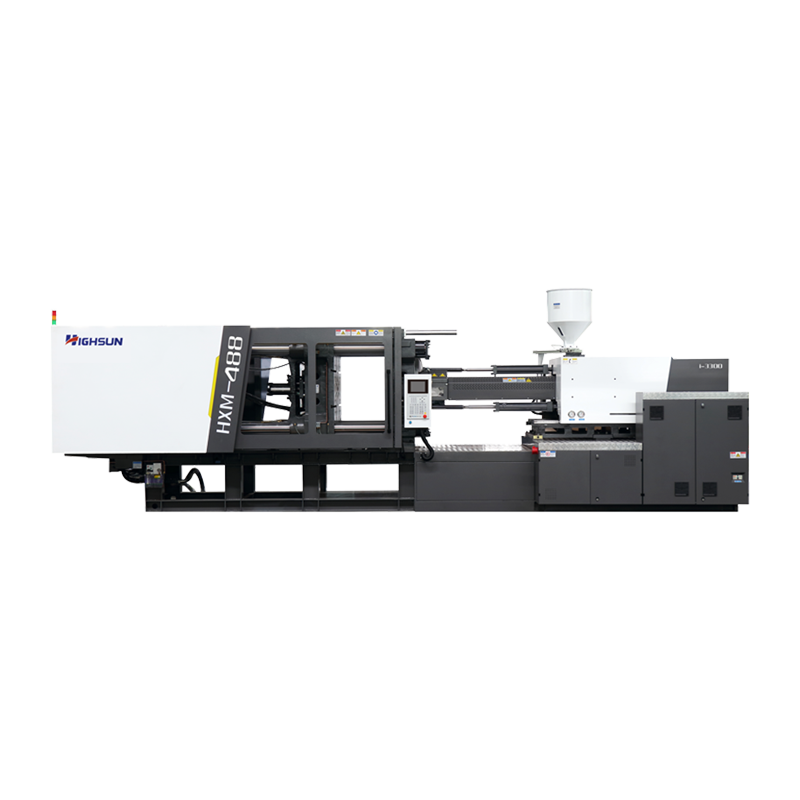

HXM488I/3300: HXM servo injection molding machine

The 488T Injection Molding Machine falls into the medium-to-large clamping force category, designed for producing medium-to-large plastic products such as industrial containers, automotive components, and home appliance housings. It combines high efficiency, stability, and precision to meet demanding manufacturing requirements.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM488I/3300: HXM servo injection molding machine
PREV：HXM428II/3300: HXM servo injection molding machine
NEXT：HXM488II/3800: HXM servo injection molding machine

  • MODEL: HXM488-I/i3300

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    70

    75

    SCREW L/D RATIO

    L/D

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    1539

    1767

    INJECTION WEIGHT(PS)

    g

    1400

    1608



    oz

    49.3

    56.7

    INJECTION PRESSURE

    MPa

    217

    189

    INJECTION RATE

    g/s

    387

    444

    PLASTICIZING CAPACITY

    g/s

    50

    55

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4880

    MOVING MOULD-PLATE STROKE

    mm

    830

        MAX. MOULD HEIGHT

    mm

    820

    MIN. MOULD HEIGHT

    mm

    300

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*800

    HYDRAULIC EJECTOR FORCE

    KN

    134

    HYDRAULIC EJECTOR STROKE

    mm

    210

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+30

    HEATING CAPACITY

    KW

    35.55

    MACHINE DIMENSION (L*W*H)

    m

    7.77*2.02*2.36

    MACHINE WEIGHT

    t

    17.3

    OIL TANK CAPACITY

    L

    530
