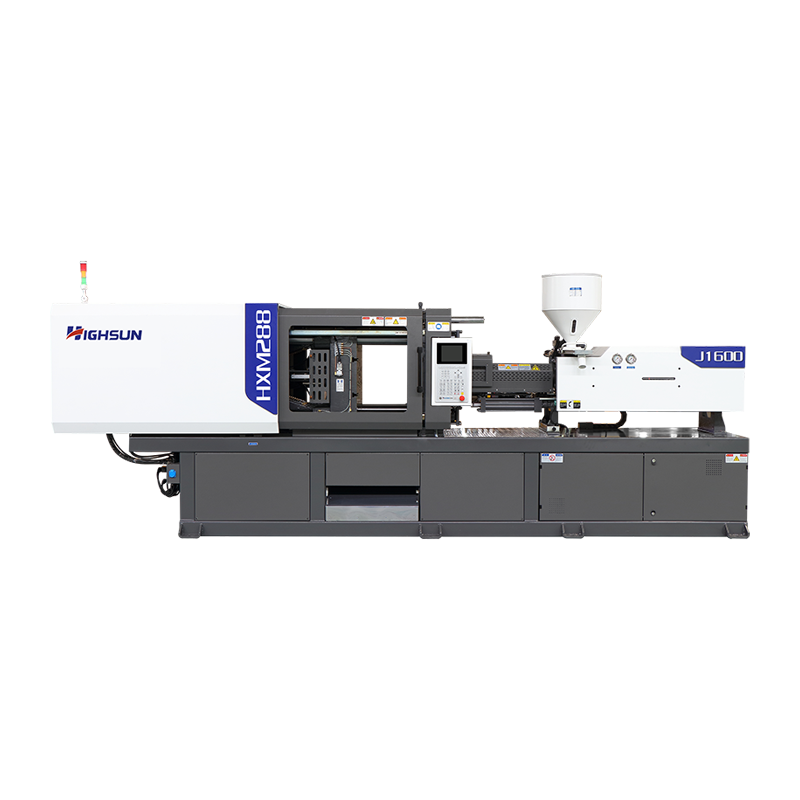

HXM288-II: HXM servo injection molding machine
HXM Servo Machine

HXM288-II: HXM servo injection molding machine

The 288-ton servo injection molding machine is a molding device based on high-precision servo drive technology, which is suitable for the efficient production of precision plastic products. Its core feature lies in the realization of energy output on demand through a servo motor, which significantly improves energy-saving effects and dynamic response speed. At the same time, it has high repeatability accuracy and stability.
Optimized energy efficiency ratio: The servo system reduces the standby energy consumption, and the comprehensive energy efficiency ratio is more than 40% higher than that of traditional hydraulic presses.
Low-noise operation: Driven by a servo motor, it reduces mechanical vibration, and the working noise is ≤70 decibels.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM288-II: HXM servo injection molding machine
PREV：HXM288-I: HXM servo injection molding machine
NEXT：HXM328: HXM servo injection molding machine

  • MODEL: HXM288/ii1600

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    D

    INJECTION UNIT

    SCREW DIAMETER

    mm

    55

    60

    65

    70

    SCREW L/D RATIO

    L/D

    23

    21.1

    19.5

    19.4

    INJECTION CAPACITY IN THEORY

    cm³

    736

    876

    1028

    1193

    INJECTION WEIGHT(PS)

    g

    670

    797

    936

    1085

    oz

    23.6

    28.7

    33.0

    38.2

    INJECTION PRESSURE

    MPa

    218

    183

    156

    135

    INJECTION RATE

    g/s

    251

    299

    350

    406

    PLASTICIZING CAPACITY

    g/s

    33

    40

    45

    50

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2880

    MOVING MOULD-PLATE STROKE

    mm

    600

        MAX. MOULD HEIGHT

    mm

    630

    MIN. MOULD HEIGHT

    mm

    230

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    620*580

    HYDRAULIC EJECTOR FORCE

    KN

    86

    HYDRAULIC EJECTOR STROKE

    mm

    170

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40

    HEATING CAPACITY

    KW

    24.15

    MACHINE DIMENSION (L*W*H)

    m

    6.38*1.49*2.15

    MACHINE WEIGHT

    t

    8.6

    OIL TANK CAPACITY

    L

    320
