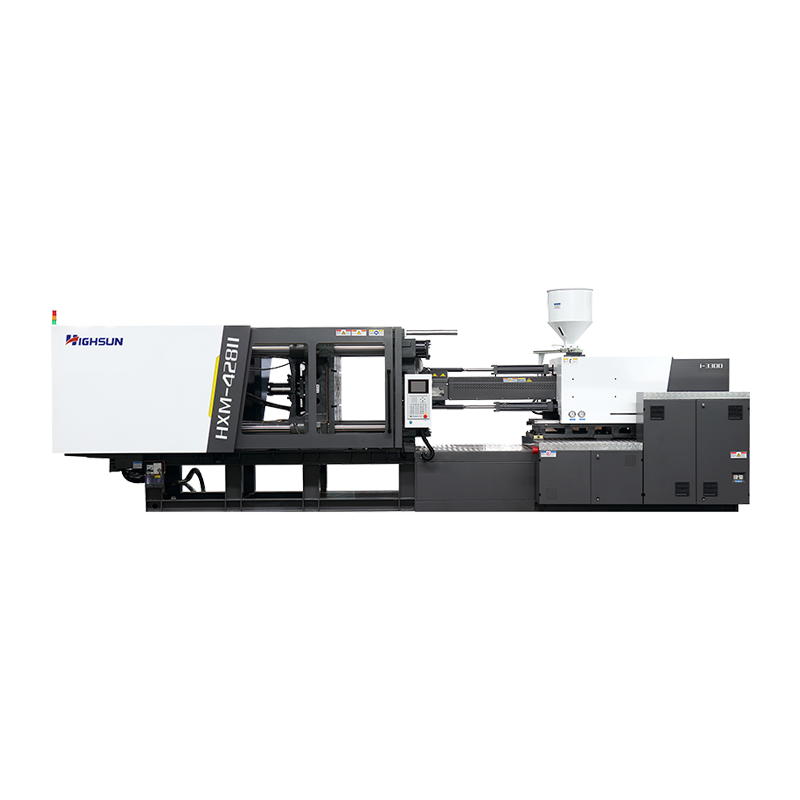

HXM428II/3300: HXM servo injection molding machine

MODEL: HXM428-II/i3300

TECHNICAL PARAMETER TABLE

A

B

C

INJECTION UNIT

SCREW DIAMETER

mm

70

75

80

SCREW L/D RATIO

L/D

21

20

19

INJECTION CAPACITY IN THEORY

cm³

1539

1767

2010

INJECTION WEIGHT(PS)

g

1400

1608

1829

oz

49.3

56.7

64.5

INJECTION PRESSURE

MPa

217

189

166

INJECTION RATE

g/s

387

444

505

PLASTICIZING CAPACITY

g/s

50

55

65

SCREW SPEED

rpm

190

CLAMPING UNIT

CLAMPING FORCE

KN

4280

MOVING MOULD-PLATE STROKE

mm

770

    MAX. MOULD HEIGHT

mm

800

MIN. MOULD HEIGHT

mm

280

SPACE BWTWEEN TIE-BARS (W*H)

mm

770*740

HYDRAULIC EJECTOR FORCE

KN

134

HYDRAULIC EJECTOR STROKE

mm

210

EJECTOR NUMBER

n

13

OTHERS

PUMP PRESSURE

MPa

17.5

DRIVING POWER

KW

30+30

HEATING CAPACITY

KW

35.55

MACHINE DIMENSION (L*W*H)

m

7.63*2.02*2.32

MACHINE WEIGHT

t

15.2

OIL TANK CAPACITY

L

530
