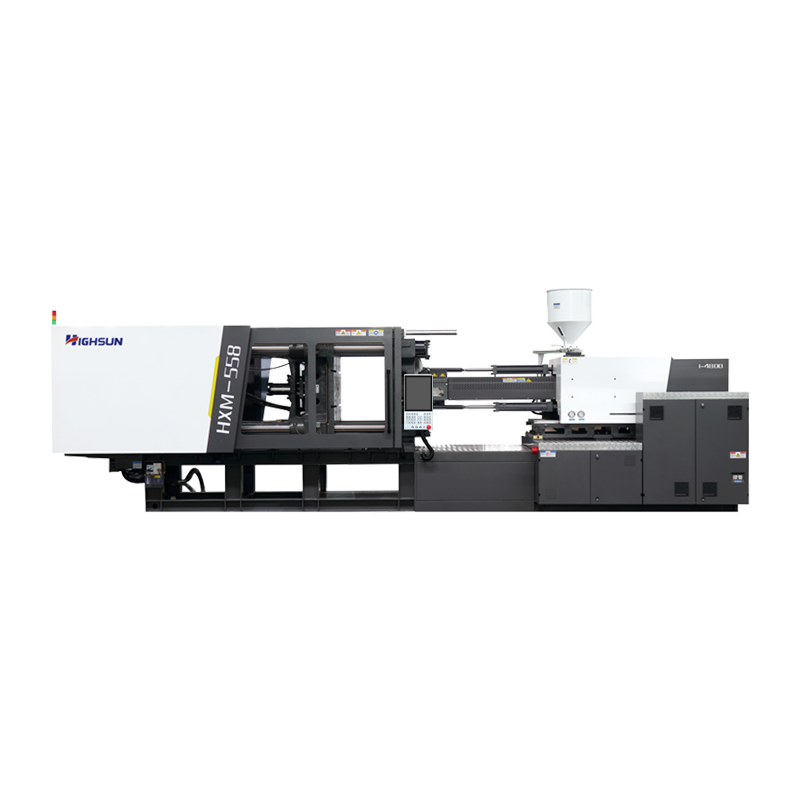

HXM558II/4800: HXM servo injection molding machine
HXM Servo Machine

HXM558II/4800: HXM servo injection molding machine

The Highsun558 is equipped with a high-performance screw and precision-engineered injection cylinder, enabling rapid and stable injection processes. Its wide injection capacity range allows precise control over material volume, effortlessly handling plastic products from a few grams to multiple kilograms, adapting to diverse production needs.

Additionally, the machine features ultra-high precision in speed and pressure adjustments, meeting stringent requirements for complex plastic components. This ensures crisp detailing and flawless surface finishes, making it ideal for manufacturing high-precision parts such as medical devices, micro-electronic housings, and optical lenses.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM558II/4800: HXM servo injection molding machine
PREV：HXM558I/3800: HXM servo injection molding machine
NEXT：HXM658I/4800: HXM servo injection molding machine

  • MODEL: HXM558-II/i4800

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    80

    85

    90

    SCREW L/D RATIO

    L/D

    21

    20

    19

    INJECTION CAPACITY IN THEORY

    cm³

    2362

    2667

    2990

    INJECTION WEIGHT(PS)

    g

    2149

    2426

    2720



    oz

    75.8

    85.5

    95.9

    INJECTION PRESSURE

    MPa

    206

    182

    162

    INJECTION RATE

    g/s

    488

    551

    618

    PLASTICIZING CAPACITY

    g/s

    65

    70

    80

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5580

    MOVING MOULD-PLATE STROKE

    mm

    870

        MAX. MOULD HEIGHT

    mm

    830

    MIN. MOULD HEIGHT

    mm

    330

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    870*840

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    230

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+40

    HEATING CAPACITY

    KW

    42.45

    MACHINE DIMENSION (L*W*H)

    m

    8.35*2.19*2.47

    MACHINE WEIGHT

    t

    22.3

    OIL TANK CAPACITY

    L

    750
