Home / Products / HXM Servo Machine / HXM658I/4800: HXM servo injection molding machine
HXM658I/4800: HXM servo injection molding machine
HXM Servo Machine

HXM658I/4800: HXM servo injection molding machine

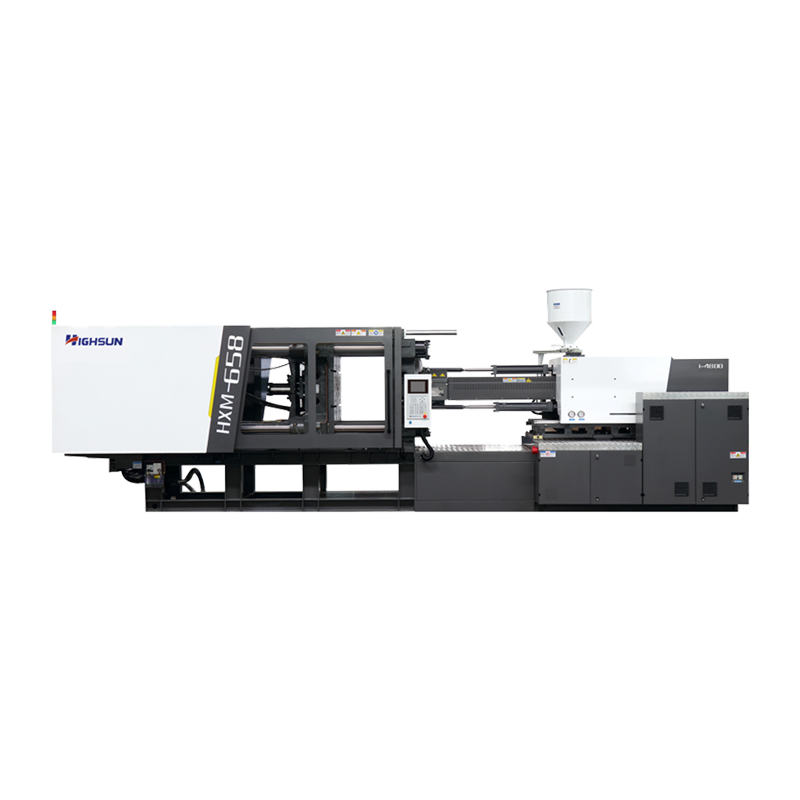

The 658T servo injection molding machine, with a locking force of up to 658 tons, is an ideal choice for the production of large and ultra-large plastic products. Compared to conventional equipment, its locking system has been optimized to achieve and maintain a huge locking force in a very short period of time, ensuring a tight fit of large molds and eliminating the risk of plastic overflow, laying a solid foundation for high-precision molding of products. Whether it is large-sized industrial plastic components or structurally complex customized plastic products, they can be easily handled, accurately presenting the original design appearance, ensuring product size accuracy and quality stability. ​

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM658I/4800: HXM servo injection molding machine
PREV：HXM558II/4800: HXM servo injection molding machine
NEXT：HXM658II/5700: HXM servo injection molding machine

  • MODEL: HXM658-I/i4800

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    75

    80

    SCREW L/D RATIO

    L/D

    22

    21

    INJECTION CAPACITY IN THEORY

    cm³

    2076

    2362

    INJECTION WEIGHT(PS)

    g

    1889

    2149



    oz

    66.6

    75.8

    INJECTION PRESSURE

    MPa

    234

    206

    INJECTION RATE

    g/s

    429

    488

    PLASTICIZING CAPACITY

    g/s

    55

    65

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    6580

    MOVING MOULD-PLATE STROKE

    mm

    970

        MAX. MOULD HEIGHT

    mm

    950

    MIN. MOULD HEIGHT

    mm

    350

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    970*920

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    260

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+40

    HEATING CAPACITY

    KW

    42.45

    MACHINE DIMENSION (L*W*H)

    m

    9.37*2.19*2.48

    MACHINE WEIGHT

    t

    29.1

    OIL TANK CAPACITY

    L

    750
