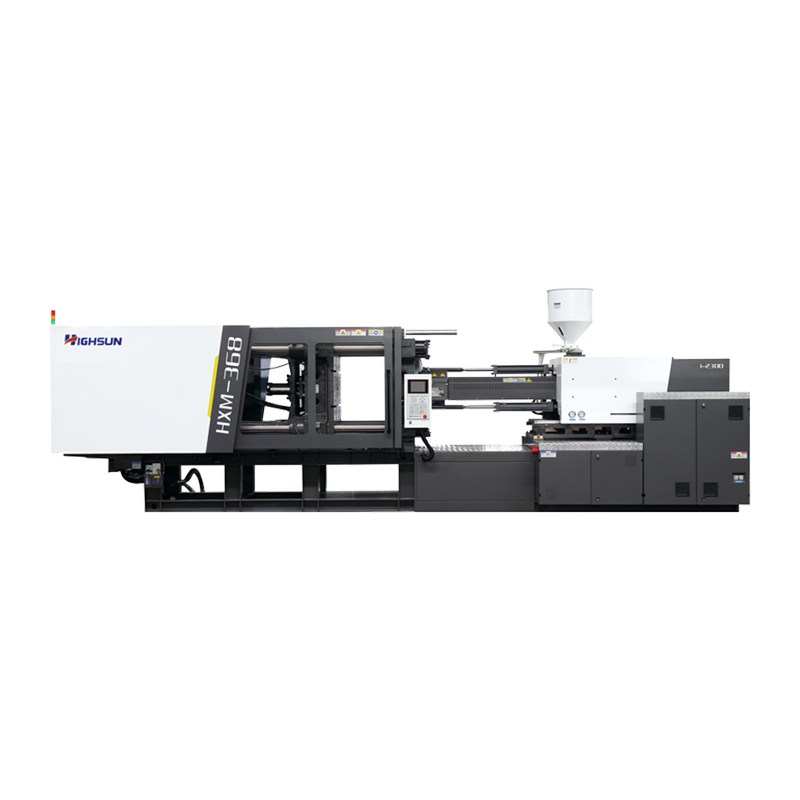

HXM368I/2300: HXM servo injection molding machine
HXM Servo Machine

HXM368I/2300: HXM servo injection molding machine

The 368-i delivers the same 368T clamping force as the standard 360-series machines, effortlessly handling large molds and complex plastic product molding while ensuring stable, precise under high-pressure conditions. However, it excels in cost efficiency—optimized production processes and supply chain management significantly reduce procurement costs, enabling businesses to acquire equally powerful clamping capabilities at a lower investment.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM368I/2300: HXM servo injection molding machine
PREV：HXM328: HXM servo injection molding machine
NEXT：HXM368II/2400: HXM servo injection molding machine

  • MODEL: HXM368-I/i2300

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    60

    65

    70

    SCREW L/D RATIO

    L/D

    22

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    989

    1161

    1346

    INJECTION WEIGHT(PS)

    g

    900

    1056

    1225



    oz

    31.7

    37.2

    43.2

    INJECTION PRESSURE

    MPa

    239

    204

    176

    INJECTION RATE

    g/s

    229

    268

    311

    PLASTICIZING CAPACITY

    g/s

    40

    42

    47

    SCREW SPEED

    rpm

    160

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    3680

    MOVING MOULD-PLATE STROKE

    mm

    710

        MAX. MOULD HEIGHT

    mm

    750

    MIN. MOULD HEIGHT

    mm

    250

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    720*690

    HYDRAULIC EJECTOR FORCE

    KN

    134

    HYDRAULIC EJECTOR STROKE

    mm

    180

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40

    HEATING CAPACITY

    KW

    27.3

    MACHINE DIMENSION (L*W*H)

    m

    6.87*1.89*2.16

    MACHINE WEIGHT

    t

    12.6

    OIL TANK CAPACITY

    L

    420
