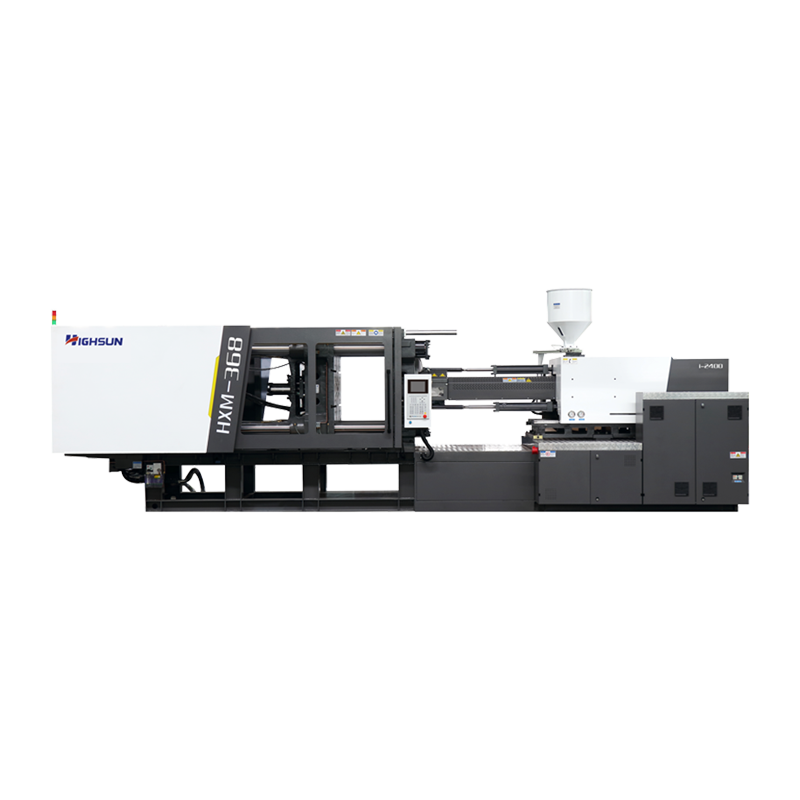

HXM368II/2400: HXM servo injection molding machine
HXM Servo Machine

HXM368II/2400: HXM servo injection molding machine

Amid the injection molding industry's relentless pursuit of excellence and innovation, the 368T Energy-Saving Servo Injection Molding Machine stands out as the ideal choice for large-scale plastic product manufacturing, delivering powerful momentum to modern manufacturing through high efficiency and precision. Notably, its integration of the Taiwan-made Techmation  control system elevates overall machine performance to unprecedented heights.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM368II/2400: HXM servo injection molding machine
PREV：HXM368I/2300: HXM servo injection molding machine
NEXT：HXM428I/2400: HXM servo injection molding machine

  • MODEL: HXM368-II/i2400

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    65

    70

    75

    SCREW L/D RATIO

    L/D

    22

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    1211

    1401

    1612

    INJECTION WEIGHT(PS)

    g

    1102

    1278

    1467



    oz

    38.8

    45.0

    81.7

    INJECTION PRESSURE

    MPa

    198

    171

    149

    INJECTION RATE

    g/s

    307

    356

    408

    PLASTICIZING CAPACITY

    g/s

    42

    47

    52

    SCREW SPEED

    rpm

    160

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    3680

    MOVING MOULD-PLATE STROKE

    mm

    710

        MAX. MOULD HEIGHT

    mm

    750

    MIN. MOULD HEIGHT

    mm

    250

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    720*690

    HYDRAULIC EJECTOR FORCE

    KN

    134

    HYDRAULIC EJECTOR STROKE

    mm

    180

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    DRIVING POWER

    KW

    40

    HEATING CAPACITY

    KW

    32.2

    MACHINE DIMENSION (L*W*H)

    m

    7.4*1.99*2.24

    MACHINE WEIGHT

    t

    13.0

    OIL TANK CAPACITY

    L

    420
