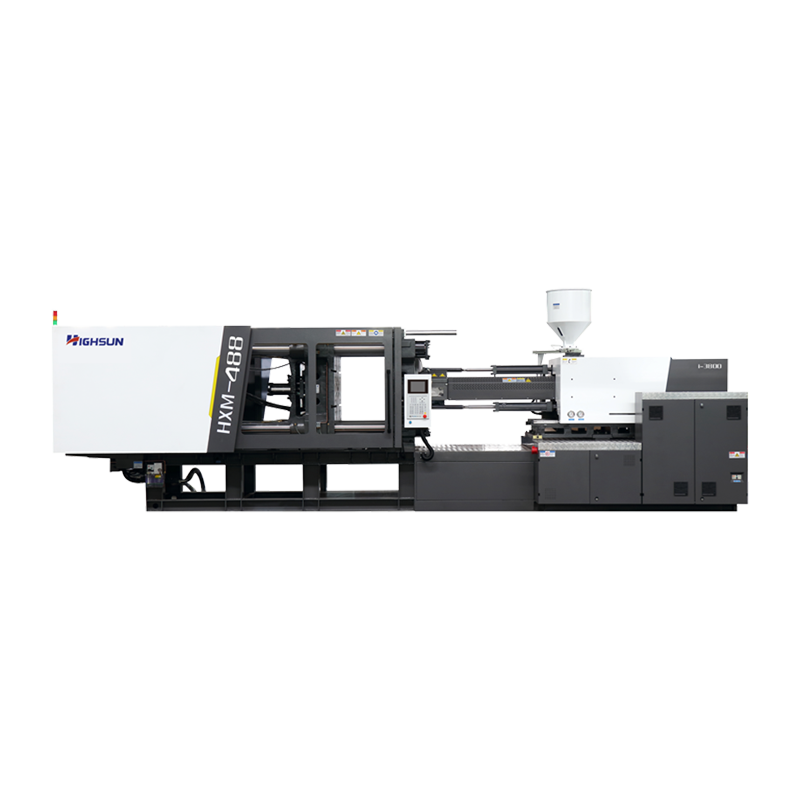

HXM488II/3800: HXM servo injection molding machine

MODEL: HXM488-II/i3800

TECHNICAL PARAMETER TABLE

A

B

C

INJECTION UNIT

SCREW DIAMETER

mm

75

80

85

SCREW L/D RATIO

L/D

21

20

19

INJECTION CAPACITY IN THEORY

cm³

1855

2111

2383

INJECTION WEIGHT(PS)

g

1688

1921

2168

oz

59.5

67.7

76.4

INJECTION PRESSURE

MPa

209

183

162

INJECTION RATE

g/s

437

498

562

PLASTICIZING CAPACITY

g/s

55

65

70

SCREW SPEED

rpm

150

CLAMPING UNIT

CLAMPING FORCE

KN

4880

MOVING MOULD-PLATE STROKE

mm

830

    MAX. MOULD HEIGHT

mm

820

MIN. MOULD HEIGHT

mm

300

SPACE BWTWEEN TIE-BARS (W*H)

mm

820*800

HYDRAULIC EJECTOR FORCE

KN

134

HYDRAULIC EJECTOR STROKE

mm

210

EJECTOR NUMBER

n

13

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR POWER

KW

30+30

HEATING CAPACITY

KW

38.55

MACHINE DIMENSION (L*W*H)

m

8.05*2.07*2.41

MACHINE WEIGHT

t

17.9

OIL TANK CAPACITY

L

630
