Home / Products / HXM Servo Machine / HXM558I/3800: HXM servo injection molding machine

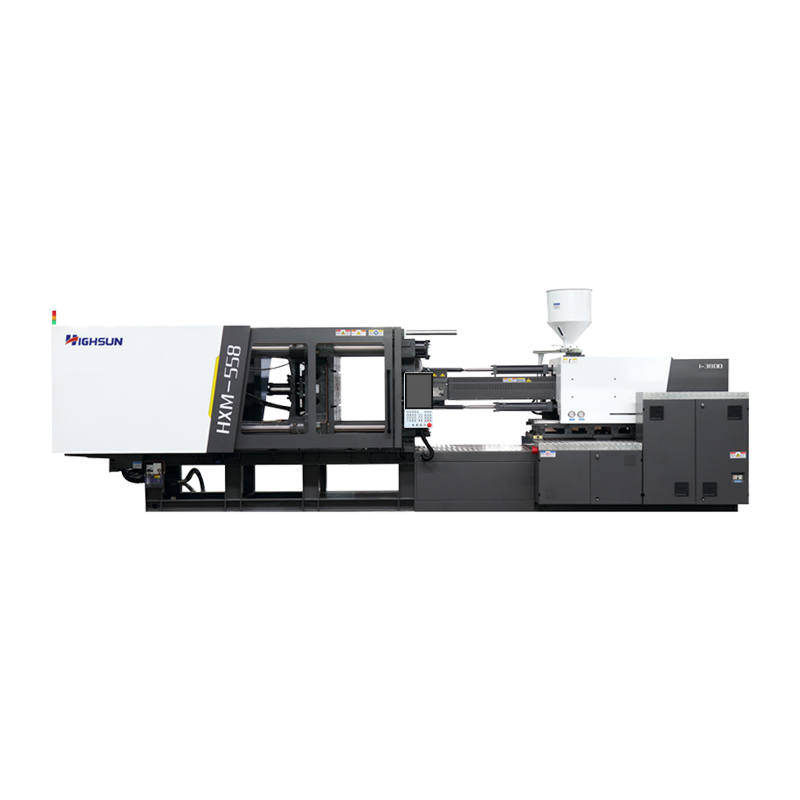

HXM558I/3800: HXM servo injection molding machine
HXM Servo Machine

HXM558I/3800: HXM servo injection molding machine

The HXM558 Injection Molding Machine is engineered to meet the production demands of large-scale plastic products. Whether molding oversized plastic components or manufacturing complex structural plastic parts, this machine ensures tight mold closure through its powerful clamping force, effectively preventing plastic overflow and guaranteeing dimensional accuracy and consistent product quality.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM558I/3800: HXM servo injection molding machine
PREV：HXM488II/3800: HXM servo injection molding machine
NEXT：HXM558II/4800: HXM servo injection molding machine

  • MODEL: HXM558-I/i3800

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    75

    80

    SCREW L/D RATIO

    L/D

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    1855

    2111

    INJECTION WEIGHT(PS)

    g

    1688

    1921



    oz

    59.5

    67.7

    INJECTION PRESSURE

    MPa

    209

    183

    INJECTION RATE

    g/s

    437

    498

    PLASTICIZING CAPACITY

    g/s

    55

    65

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5580

    MOVING MOULD-PLATE STROKE

    mm

    870

        MAX. MOULD HEIGHT

    mm

    830

    MIN. MOULD HEIGHT

    mm

    330

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    870*840

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    230

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+30

    HEATING CAPACITY

    KW

    38.55

    MACHINE DIMENSION (L*W*H)

    m

    8.08*2.07*2.47

    MACHINE WEIGHT

    t

    21.6

    OIL TANK CAPACITY

    L

    630
About Highsun
Ningbo Beilun Highsun Machinery Co., Ltd.
HIGHSUN MACHINERY is located in Beilun Science and Technology Park, Ningbo, Zhejiang province, which is "the capital city of plastic machines" in China. We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand.

We are a professional China HXM558I/3800: HXM servo injection molding machine suppliers and HXM558I/3800: HXM servo injection molding machine company, We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand. has long been dedicated to delicacy management and zero defect production, and has formed a characteristic series represented by small tonnage of hybrid machine, medium tonnage of toggle machine, and large tonnage of two-platen machine.
