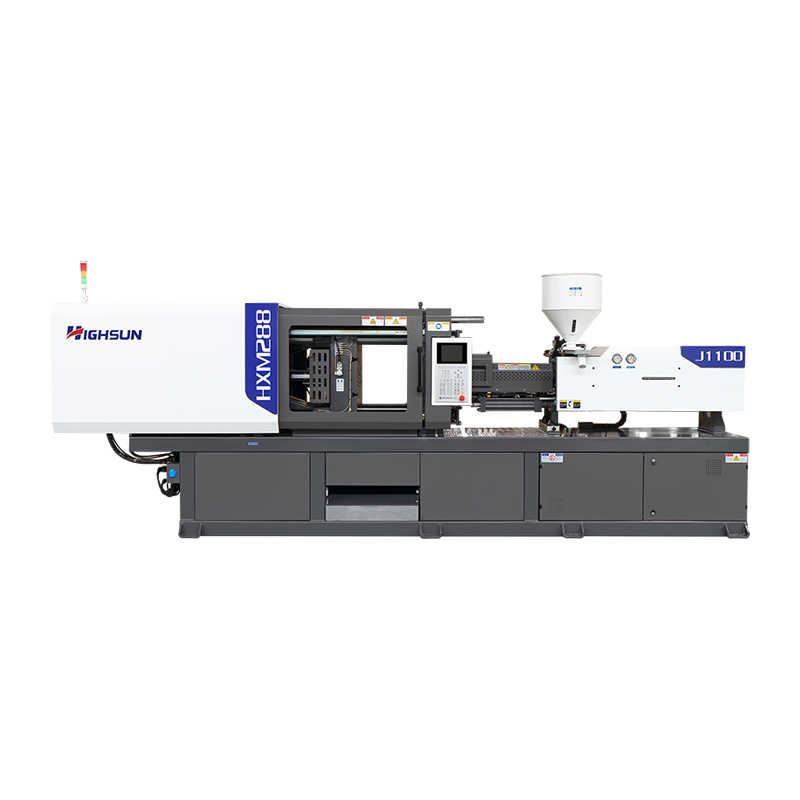

HXM288-I: HXM servo injection molding machine
HXM Servo Machine

HXM288-I: HXM servo injection molding machine

The 288-ton servo injection molding machine is a molding device based on high-precision servo drive technology, which is suitable for the efficient production of precision plastic products. Its core feature lies in the realization of energy output on demand through a servo motor, which significantly improves energy-saving effects and dynamic response speed. At the same time, it has high repeatability accuracy and stability.
Optimized energy efficiency ratio: The servo system reduces the standby energy consumption, and the comprehensive energy efficiency ratio is more than 40% higher than that of traditional hydraulic presses.
Low-noise operation: Driven by a servo motor, it reduces mechanical vibration, and the working noise is ≤70 decibels.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM288-I: HXM servo injection molding machine
PREV：HXM258-II: HXM servo injection molding machine
NEXT：HXM288-II: HXM servo injection molding machine

  • MODEL: HXM288/i1000

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    D

    INJECTION UNIT

    SCREW DIAMETER

    mm

    50

    55

    60

    65

    SCREW L/D RATIO

    L/D

    23.4

    21.5

    19.5

    19.3

    INJECTION CAPACITY IN THEORY

    cm³

    490

    593

    706

    829

    INJECTION WEIGHT(PS)

    g

    446

    540

    643

    754



    oz

    15.7

    19

    22.6

    26.5

    INJECTION PRESSURE

    MPa

    224

    185

    155

    132

    INJECTION RATE

    g/s

    204

    247

    294

    345

    PLASTICIZING CAPACITY

    g/s

    26

    33

    40

    45

    SCREW SPEED

    rpm

    200

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2880

    MOVING MOULD-PLATE STROKE

    mm

    600

        MAX. MOULD HEIGHT

    mm

    630

    MIN. MOULD HEIGHT

    mm

    230

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    620*580

    HYDRAULIC EJECTOR FORCE

    KN

    86

    HYDRAULIC EJECTOR STROKE

    mm

    170

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30

    HEATING CAPACITY

    KW

    22.55

    MACHINE DIMENSION (L*W*H)

    m

    6.10*1.45*2.15

    MACHINE WEIGHT

    t

    8.4

    OIL TANK CAPACITY

    L

    320
