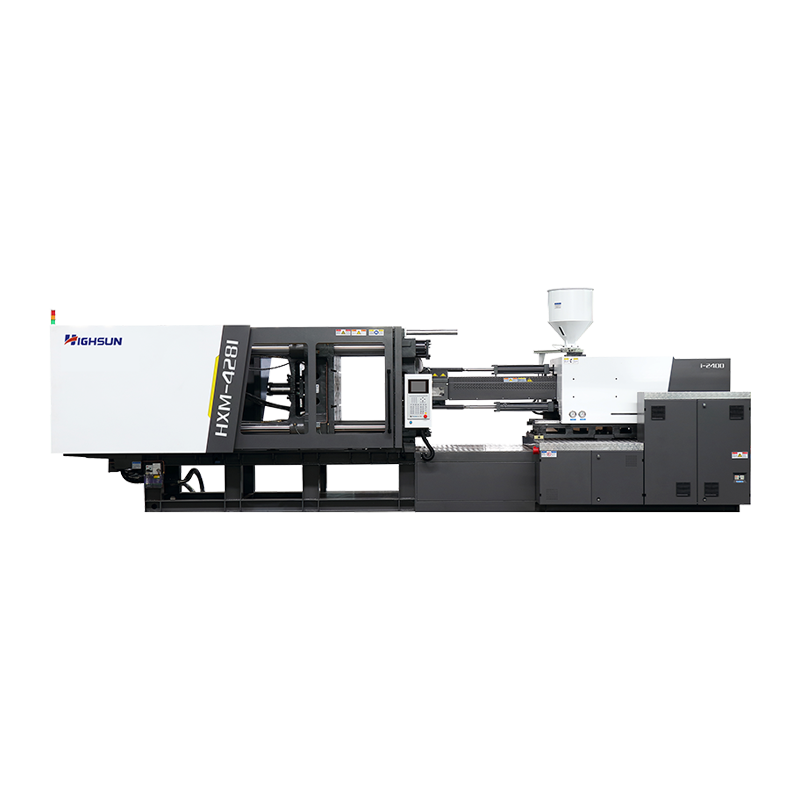

HXM428I/2400: HXM servo injection molding machine

MODEL: HXM428-I/i2400

TECHNICAL PARAMETER TABLE

A

B

INJECTION UNIT

SCREW DIAMETER

mm

65

70

SCREW L/D RATIO

L/D

22

21

INJECTION CAPACITY IN THEORY

cm³

1211

1401

INJECTION WEIGHT(PS)

g

1102

1278

oz

38.8

45.0

INJECTION PRESSURE

MPa

198

171

INJECTION RATE

g/s

307

356

PLASTICIZING CAPACITY

g/s

42

47

SCREW SPEED

rpm

160

CLAMPING UNIT

CLAMPING FORCE

KN

4280

MOVING MOULD-PLATE STROKE

mm

770

    MAX. MOULD HEIGHT

mm

800

MIN. MOULD HEIGHT

mm

280

SPACE BWTWEEN TIE-BARS (W*H)

mm

770*740

HYDRAULIC EJECTOR FORCE

KN

134

HYDRAULIC EJECTOR STROKE

mm

210

EJECTOR NUMBER

n

13

OTHERS

PUMP PRESSURE

MPa

17.5

MOTOR POWER

KW

40

HEATING CAPACITY

KW

32.2

MACHINE DIMENSION (L*W*H)

m

7.43*1.93*2.25

MACHINE WEIGHT

t

14.6

OIL TANK CAPACITY

L

420
