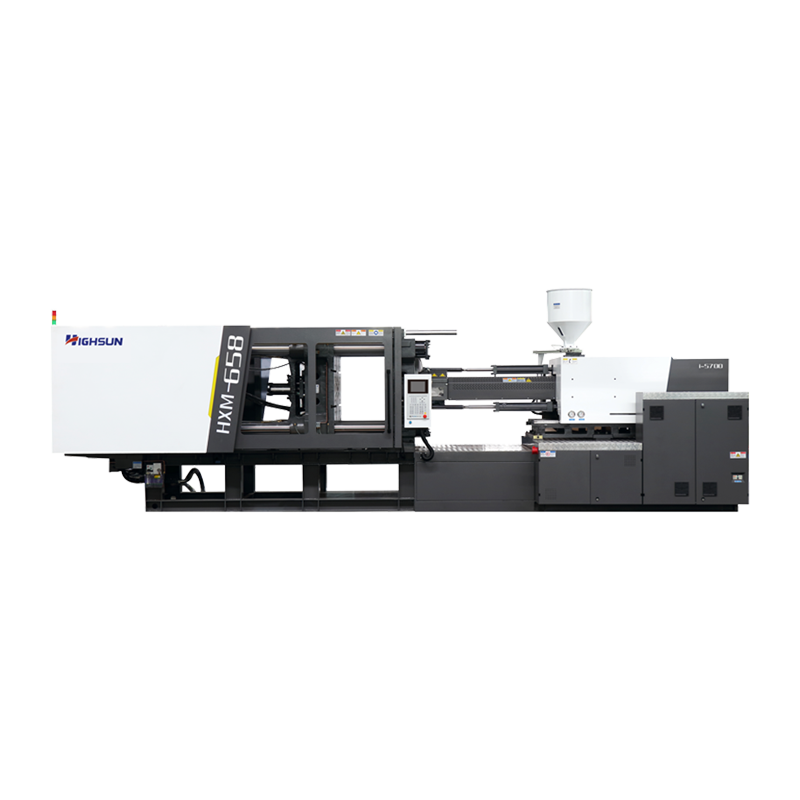

HXM658II/5700: HXM servo injection molding machine
HXM Servo Machine

HXM658II/5700: HXM servo injection molding machine

The injection system excels with its large-diameter, high-precision screw and high-thrust injection cylinder, maintaining stable injection pressure and flow even at high speeds. Its industry-leading resolution in speed and pressure adjustment ensures precise control over every injection cycle, delivering mirror-smooth surfaces and intricate detailing on finished products. This capability makes it ideal for high-precision molding tasks such as precision electronic components and premium optical devices, where micron-level accuracy is critical.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM658II/5700: HXM servo injection molding machine
PREV：HXM658I/4800: HXM servo injection molding machine
NEXT：HXM750-I: HXM servo injection molding machine

  • MODEL: HXM658-II/i5700

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    D

    INJECTION UNIT

    SCREW DIAMETER

    mm

    85

    90

    95

    100

    SCREW L/D RATIO

    L/D

    22

    21

    20

    19

    INJECTION CAPACITY IN THEORY

    cm³

    2610

    2926

    3260

    3612

    INJECTION WEIGHT(PS)

    g

    2375

    2663

    2967

    3287



    oz

    83.7

    93.9

    104.6

    115.9

    INJECTION PRESSURE

    MPa

    221

    197

    177

    159

    INJECTION RATE

    g/s

    496

    556

    620

    687

    PLASTICIZING CAPACITY

    g/s

    70

    80

    85

    90

    SCREW SPEED

    rpm

    145

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    6580

    MOVING MOULD-PLATE STROKE

    mm

    970

        MAX. MOULD HEIGHT

    mm

    950

    MIN. MOULD HEIGHT

    mm

    350

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    970*920

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    260

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    53.7

    MACHINE DIMENSION (L*W*H)

    m

    9.52*2.27*2.65

    MACHINE WEIGHT

    t

    30.8

    OIL TANK CAPACITY

    L

    850
