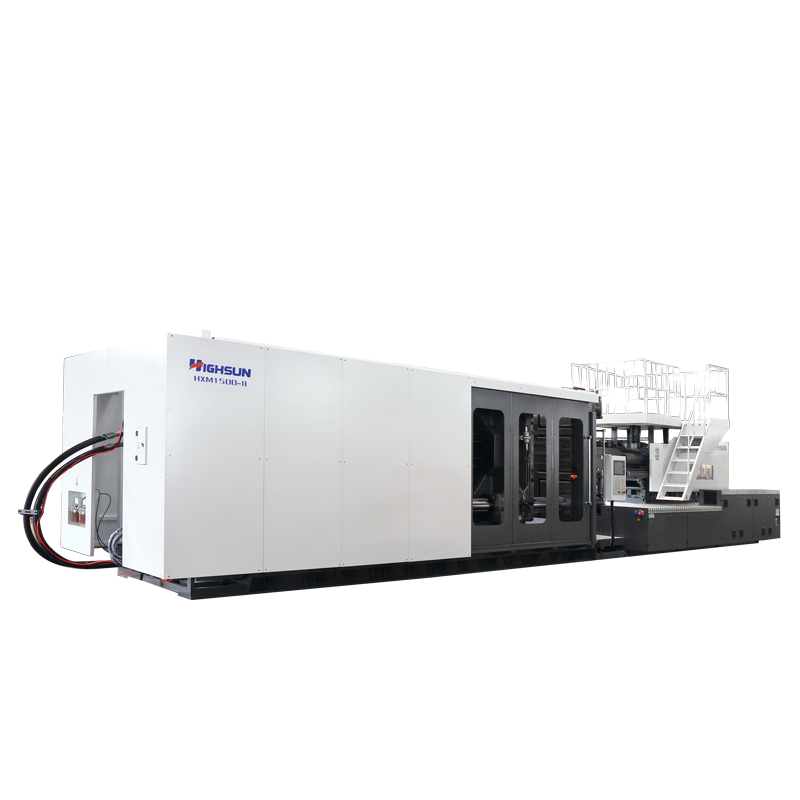

HXM1500-II: HXM servo injection molding machine
HXM Servo Machine

HXM1500-II: HXM servo injection molding machine

HXM1500 Servo Energy-Saving Injection Molding Machine is a cutting-edge equipment designed for the production of oversized and highly complex plastic products. It integrates servo drive technology, intelligent control, and modular design, achieving a comprehensive energy-saving rate of 70%-85%. Specifically engineered for large-scale, high-efficiency production in sectors such as the automotive industry, home appliance manufacturing, and industrial packaging.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM1500-II: HXM servo injection molding machine
PREV：HXM1500-I: HXM servo injection molding machine
NEXT：HXM2000: HXM servo injection molding machine

  • MODEL: HXM1500-II/15500

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    130

    140

    150

    SCREW L/D RATIO

    L/D

    23

    22

    21

    INJECTION CAPACITY IN THEORY

    cm3

    8627

    10005

    11486

    INJECTION WEIGHT(PS)

    g

    7851

    9105

    10452

    oz

    276.9

    321.1

    368.8

    INJECTION PRESSURE

    MPa

    180

    155

    135

    INJECTION RATE

    g/s

    1240

    1438

    1651

    PLASTICIZING CAPACITY

    g/s

    120

    140

    160

    SCREW SPEED

    rpm

    100

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    15000

    MOVING MOULD-PLATE STROKE

    mm

    1500

        MAX. MOULD HEIGHT

    mm

    1500

    MIN. MOULD HEIGHT

    mm

    700

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1450x1350

    HYDRAULIC EJECTOR FORCE

    KN

    380

    HYDRAULIC EJECTOR STROKE

    mm

    400

    EJECTOR NUMBER

    n

    25

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40+40+40

    HEATING CAPACITY

    KW

    118.25

    MACHINE DIMENSION (L*W*H)

    m

    14.00*3.30*4.00

    MACHINE WEIGHT

    t

    93.6

    OIL TANK CAPACITY

    L

    1600
