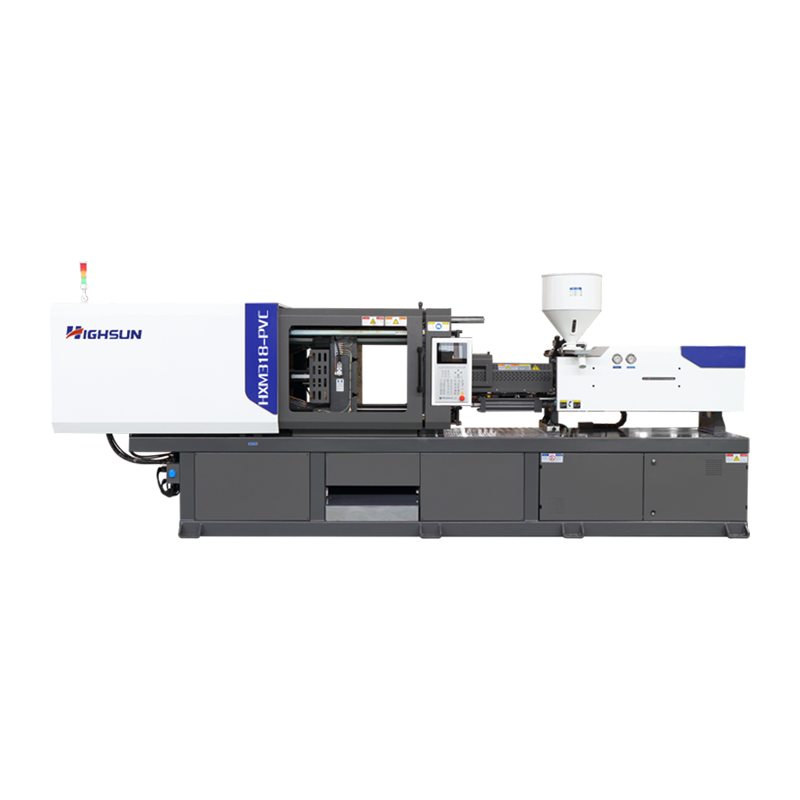

HXM318-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM318-PVC: PVC injection molding machine

Energy-saving and efficient operation: This model is equipped with a servo motor system. The servo motor can precisely adjust the motor speed and power according to the actual operating requirements of the equipment, avoiding energy waste of traditional motors during operation and significantly reducing the energy consumption of the equipment. At the same time, the efficient operation of the equipment also reduces the time cost in the production process, lowers the operating costs of enterprises, and enhances the market competitiveness of enterprises.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM318-PVC: PVC injection molding machine
PREV：HXM268-PVC: PVC injection molding machine
NEXT：HXM368-PVC: PVC injection molding machine

  • MODEL: HXM318PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    60

    SCREW L/D RATIO

    L/D

    21

    INJECTION CAPACITY IN THEORY

    cm³

    820

    INJECTION WEIGHT(PVC)

    g

    1012

    INJECTION PRESSURE

    MPa

    183

    INJECTION RATE

    g/s

    403

    PLASTICIZING CAPACITY

    g/s

    54

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    3180

    MOVING MOULD-PLATE STROKE

    mm

    600

    MAX. MOULD HEIGHT

    mm

    690

    MIN. MOULD HEIGHT

    mm

    230

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    660*590

    HYDRAULIC EJECTOR FORCE

    KN

    86

    HYDRAULIC EJECTOR STROKE

    mm

    170

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40

    HEATING CAPACITY

    KW

    18.15

    MACHINE DIMENSION (L*W*H)

    m

    6.31*1.82*2.20

    MACHINE WEIGHT

    t

    9

    OIL TANK CAPACITY

    L

    415
