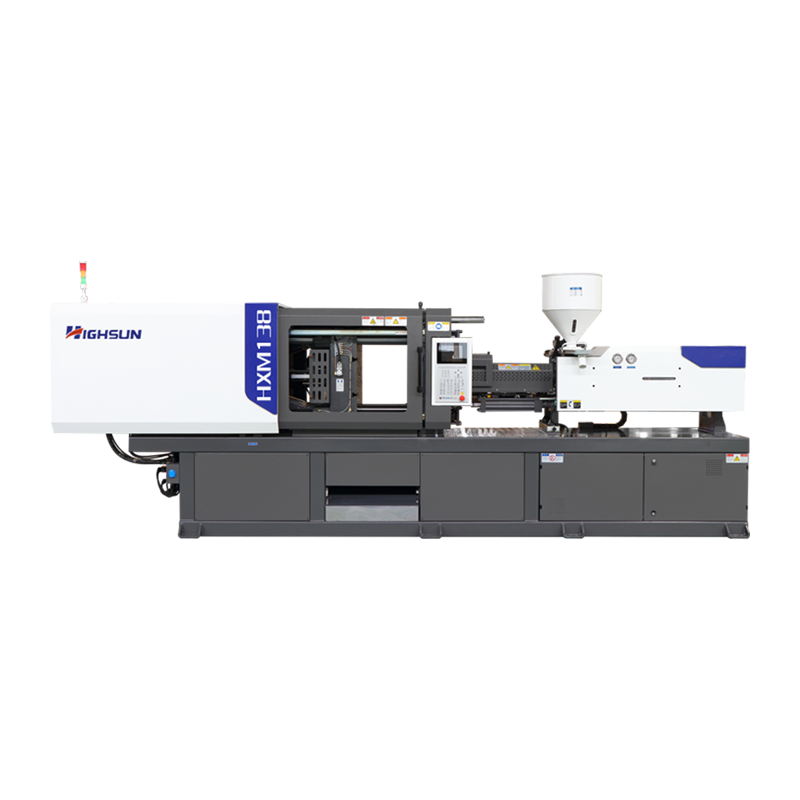

HXM138: HXM servo injection molding machine
HXM Servo Machine

HXM138: HXM servo injection molding machine

A specialized solution for small-to-medium-sized precision plastic products, combining servo motor drive technology and an intelligent control system. Designed for high-precision, high-stability production scenarios such as electronic components, medical consumables, and automotive accessories, it excels in balancing production efficiency with energy consumption control, making it a top-tier choice for precision molding.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM138: HXM servo injection molding machine
PREV：HXM108: HXM servo injection molding machine
NEXT：HXM168: HXM servo injection molding machine

  • MODEL: HXM138

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    35

    38

    42

    SCREW L/D RATIO

    L/D

    23

    22

    20

    INJECTION CAPACITY IN THEORY

    cm³

    192

    226

    277

    INJECTION WEIGHT(PS)

    g

    175

    206

    252



    oz

    6.1

    7.2

    8.8

    INJECTION PRESSURE

    MPa

    240

    203

    166

    INJECTION RATE

    g/s

    101

    119

    146

    PLASTICIZING CAPACITY

    g/s

    12

    15

    15

    SCREW SPEED

    rpm

    265

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1380

    MOVING MOULD-PLATE STROKE

    mm

    390

        MAX. MOULD HEIGHT

    mm

    450

    MIN. MOULD HEIGHT

    mm

    150

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    420*370

    HYDRAULIC EJECTOR FORCE

    KN

    56

    HYDRAULIC EJECTOR STROKE

    mm

    120

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    16

    HEATING CAPACITY

    KW

    13.25

    MACHINE DIMENSION (L*W*H)

    m

    4.28*1.05*1.86

    MACHINE WEIGHT

    t

    3.9

    OIL TANK CAPACITY

    L

    160
