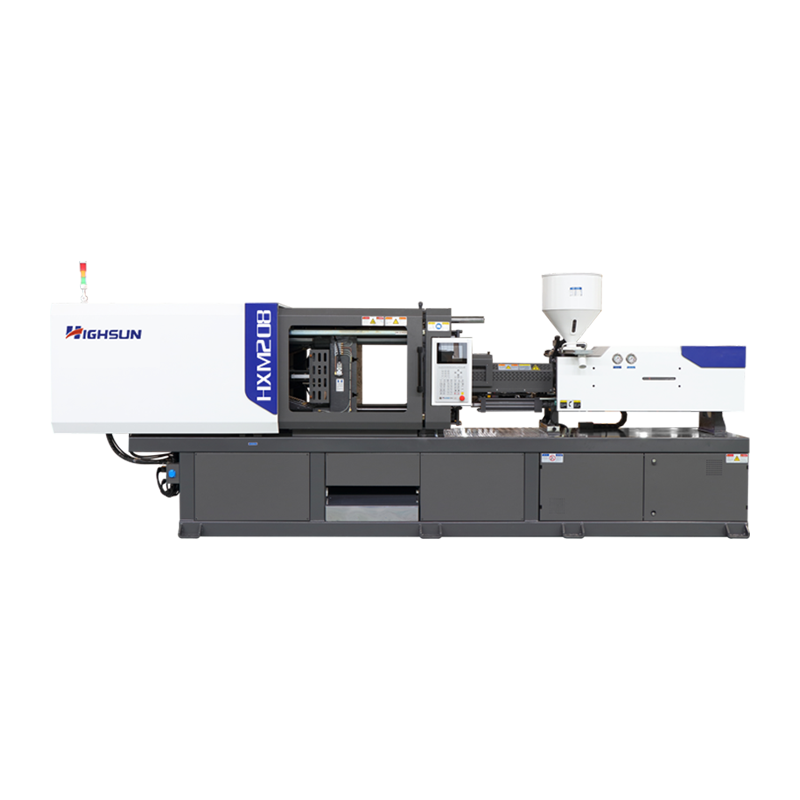

HXM208: HXM servo injection molding machine
HXM Servo Machine

HXM208: HXM servo injection molding machine

The energy-saving servo injection molding machine with a clamping force of 208 tons, as an advanced equipment in the injection molding field, integrates cutting-edge technology and exquisite craftsmanship. Its intelligent servo power system can sense and adapt to the energy consumption throughout the entire injection molding process in real time. Compared with traditional injection molding machines, it can save 45%-75% of energy, significantly reducing energy consumption costs and implementing green manufacturing.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM208: HXM servo injection molding machine
PREV：HXM168: HXM servo injection molding machine
NEXT：HXM258-I: HXM servo injection molding machine

  • MODEL: HXM208

    TECHNICAL PARAMETER TABLE

    a

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    40

    42

    45

    48

    SCREW L/D RATIO

    L/D

    22

    23

    22

    21

    INJECTION CAPACITY IN THEORY

    cm3

    320

    353

    405

    461

    INJECTION WEIGHT(PS)

    g

    291

    321

    369

    419



    oz

    10.2

    11.3

    13.0

    14.7

    INJECTION PRESSURE

    MPa

    234

    212

    185

    163

    INJECTION RATE

    g/s

    130

    143

    164

    187

    PLASTICIZING CAPACITY

    g/s

    14

    15

    20

    23

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2080

    MOVING MOULD-PLATE STROKE

    mm

    500

        MAX. MOULD HEIGHT

    mm

    550

    MIN. MOULD HEIGHT

    mm

    200

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    530*480

    HYDRAULIC EJECTOR FORCE

    KN

    56

    HYDRAULIC EJECTOR STROKE

    mm

    140

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    21

    HEATING CAPACITY

    KW

    16.85

    MACHINE DIMENSION (L*W*H)

    m

    5.38*1.28*2.04

    MACHINE WEIGHT

    t

    6.0

    OIL TANK CAPACITY

    L

    200
