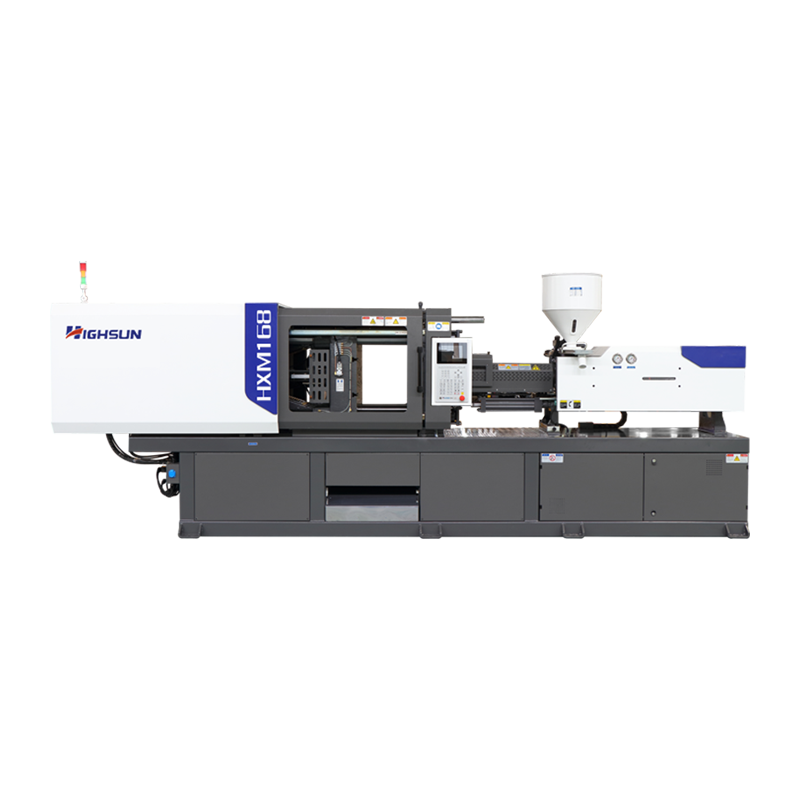

HXM168: HXM servo injection molding machine
HXM Servo Machine

HXM168: HXM servo injection molding machine

A cutting-edge industrial injection molding system that integrates advanced technology with exceptional performance. The machine frame is constructed from premium high-strength alloy steel, refined through multiple rounds of simulation optimization and finite element analysis (FEA) to ensure structural stability and exceptional rigidity.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM168: HXM servo injection molding machine
PREV：HXM138: HXM servo injection molding machine
NEXT：HXM208: HXM servo injection molding machine

  • MODEL: HXM168

    TECHNICAL PARAMETER TABLE

    a

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    38

    42

    45

    48

    SCREW L/D RATIO

    L/D

    24

    22

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    260

    318

    365

    416

    INJECTION WEIGHT(PS)

    g

    237

    289

    332

    378



    oz

    8.3

    10.1

    11.7

    13.3

    INJECTION PRESSURE

    MPa

    260

    212

    185

    163

    INJECTION RATE

    g/s

    117

    143

    164

    187

    PLASTICIZING CAPACITY

    g/s

    13

    15

    20

    23

    SCREW SPEED

    rpm

    220

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1680

    MOVING MOULD-PLATE STROKE

    mm

    450

        MAX. MOULD HEIGHT

    mm

    500

    MIN. MOULD HEIGHT

    mm

    150

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    470*430

    HYDRAULIC EJECTOR FORCE

    KN

    56

    HYDRAULIC EJECTOR STROKE

    mm

    130

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    21

    HEATING CAPACITY

    KW

    15.65

    MACHINE DIMENSION (L*W*H)

    m

    4.93*1.31*1.93

    MACHINE WEIGHT

    t

    5.1

    OIL TANK CAPACITY

    L

    200
