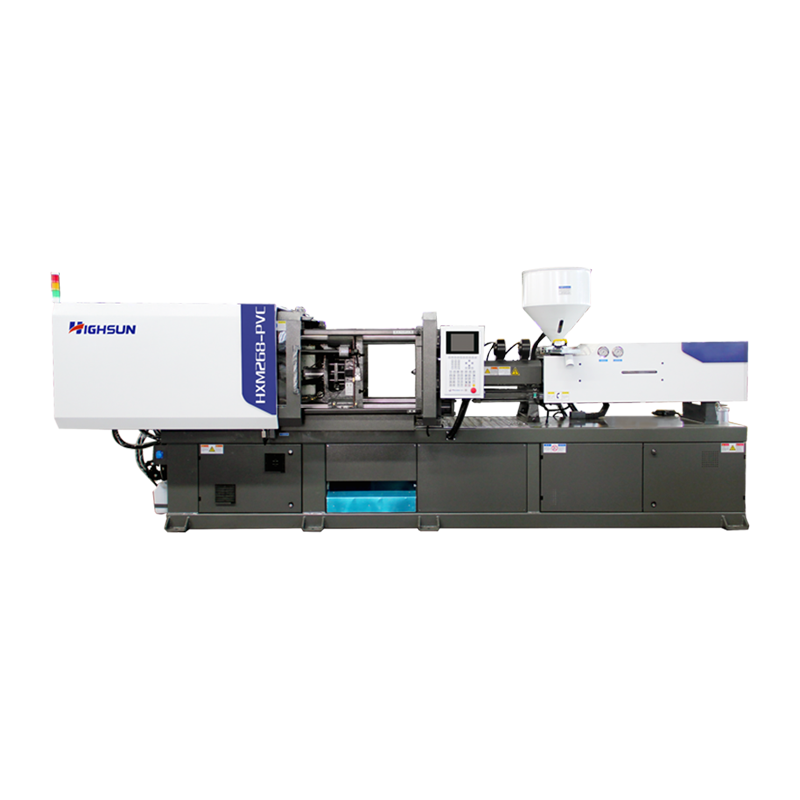

HXM268-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM268-PVC: PVC injection molding machine

The 268PVC injection molding machine boasts exceptionally versatile mold compatibility, capable of accommodating molds of various sizes and structures. It is suitable for producing a wide range of PVC plastic products, including large-diameter PVC pipes and fittings, PVC plastic sheets, PVC packaging containers, and PVC housings for electronic components. Whether manufacturing standard-sized products or customized items for specialized requirements, the machine demonstrates seamless adaptability. This flexibility allows enterprises to dynamically adjust production strategies according to market demands, effectively meeting diverse client needs while significantly enhancing corporate competitiveness in the marketplace.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM268-PVC: PVC injection molding machine
PREV：HXM228-PVC: PVC injection molding machine
NEXT：HXM318-PVC: PVC injection molding machine

  • MODEL: HXM268PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    55

    SCREW L/D RATIO

    L/D

    20

    INJECTION CAPACITY IN THEORY

    cm³

    546

    INJECTION WEIGHT(PVC)

    g

    685

    INJECTION PRESSURE

    MPa

    185

    INJECTION RATE

    g/s

    333

    PLASTICIZING CAPACITY

    g/s

    45

    SCREW SPEED

    rpm

    200

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2680

    MOVING MOULD-PLATE STROKE

    mm

    550

    MAX. MOULD HEIGHT

    mm

    600

    MIN. MOULD HEIGHT

    mm

    230

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    620*570

    HYDRAULIC EJECTOR FORCE

    KN

    86

    HYDRAULIC EJECTOR STROKE

    mm

    170

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30

    HEATING CAPACITY

    KW

    16.83

    MACHINE DIMENSION (L*W*H)

    m

    5.88*1.71 *2.15

    MACHINE WEIGHT

    t

    8.5

    OIL TANK CAPACITY

    L

    311
