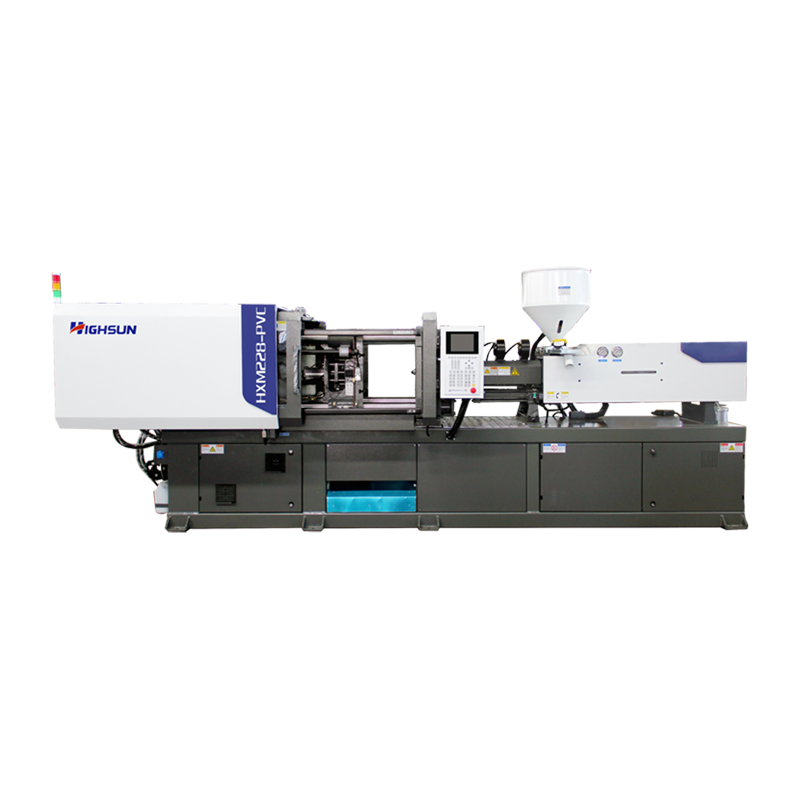

HXM228-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM228-PVC: PVC injection molding machine

A comprehensive optimization and upgrade has been carried out on the mold clamping system. The diameter of the tie bars has been increased and the thickness of the mold plates has been thickened, significantly enhancing the mold clamping rigidity. When injecting PVC products, the strong mold clamping rigidity can ensure that the mold closes tightly, effectively preventing the mold expansion phenomenon caused by the high-pressure injection of the PVC melt and eliminating defects such as burrs and dimensional deviations in the products. At the same time, the optimized mold clamping mechanism operates more smoothly, greatly reducing the vibration and noise of the equipment, prolonging the overall service life of the equipment, and reducing the probability of equipment failures.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM228-PVC: PVC injection molding machine
PREV：HXM198-PVC: PVC injection molding machine
NEXT：HXM268-PVC: PVC injection molding machine

  • MODEL: HXM228PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    50

    SCREW L/D RATIO

    L/D

    20

    INJECTION CAPACITY IN THEORY

    cm³

    431

    INJECTION WEIGHT(PVC)

    g

    540

    INJECTION PRESSURE

    MPa

    186

    INJECTION RATE

    g/s

    278

    PLASTICIZING CAPACITY

    g/s

    35

    SCREW SPEED

    rpm

    200

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2280

    MOVING MOULD-PLATE STROKE

    mm

    520

    MAX. MOULD HEIGHT

    mm

    580

    MIN. MOULD HEIGHT

    mm

    200

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    570*520

    HYDRAULIC EJECTOR FORCE

    KN

    86

    HYDRAULIC EJECTOR STROKE

    mm

    150

    EJECTOR NUMBER

    n

    9

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30

    HEATING CAPACITY

    KW

    13.55

    MACHINE DIMENSION (L*W*H)

    m

    5.64*1.64*2.10

    MACHINE WEIGHT

    t

    7.5

    OIL TANK CAPACITY

    L

    281
