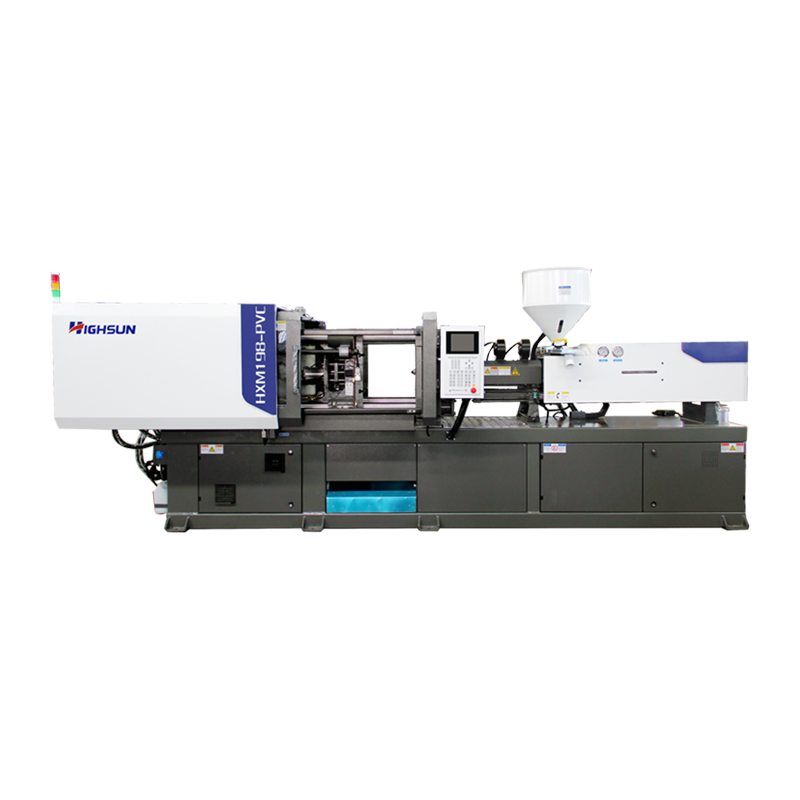

HXM198-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM198-PVC: PVC injection molding machine

The HXM198-PVC injection molding machine is equipped with a high-precision temperature control system, which can precisely adjust the temperature of each section of the barrel to ensure that the PVC raw materials are always plasticized within the optimal temperature range. This effectively avoids product quality problems such as bubbles and discoloration caused by temperature fluctuations. The hydraulic system uses high-performance hydraulic components from internationally renowned brands, which have an extremely fast response speed and precise pressure control. During the injection molding process, it can precisely control the injection pressure and speed in strict accordance with the preset parameters, ensuring that the PVC melt is injected into the mold cavity in a stable state, thus producing PVC products with high dimensional accuracy and excellent surface quality.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM198-PVC: PVC injection molding machine
PREV：HXM168-PVC: PVC injection molding machine
NEXT：HXM228-PVC: PVC injection molding machine

  • MODEL: HXM198PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    45

    SCREW L/D RATIO

    L/D

    22

    INJECTION CAPACITY IN THEORY

    cm³

    405

    INJECTION WEIGHT(PVC)

    g

    485

    INJECTION PRESSURE

    MPa

    185

    INJECTION RATE

    g/s

    210

    PLASTICIZING CAPACITY

    g/s

    26

    SCREW SPEED

    rpm

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1980

    MOVING MOULD-PLATE STROKE

    mm

    500

    MAX. MOULD HEIGHT

    mm

    550

    MIN. MOULD HEIGHT

    mm

    200

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    530*480

    HYDRAULIC EJECTOR FORCE

    KN

    67

    HYDRAULIC EJECTOR STROKE

    mm

    140

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    21

    HEATING CAPACITY

    KW

    12.95

    MACHINE DIMENSION (L*W*H)

    m

    5.48*1.58*2.04

    MACHINE WEIGHT

    t

    5.9

    OIL TANK CAPACITY

    L

    272
