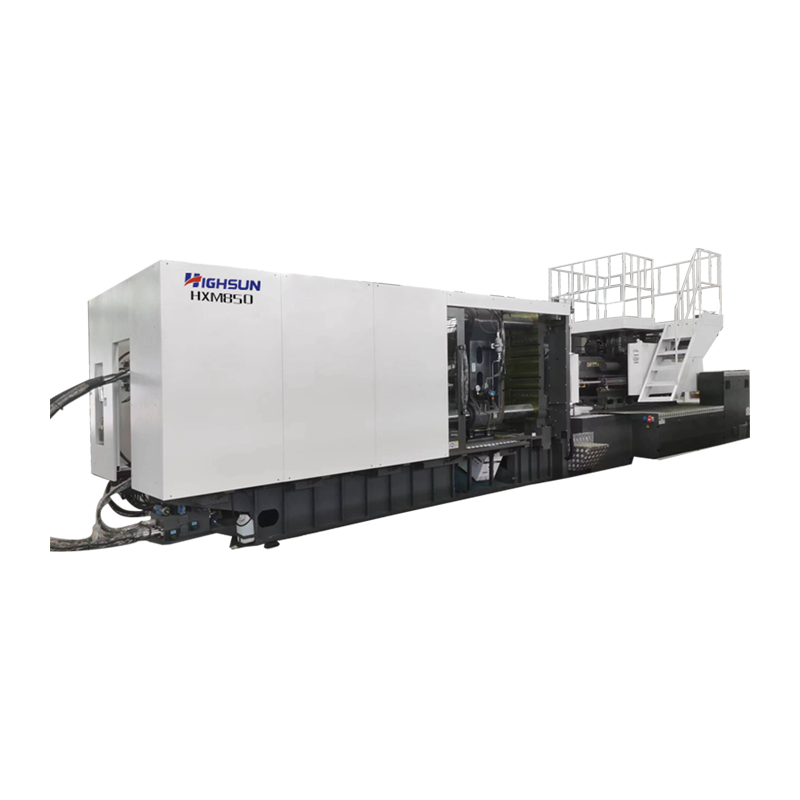

HXM850-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM850-PVC: PVC injection molding machine

The thermal stability of PVC raw materials is not good, and the melt viscosity is high and it is prone to decomposition. Therefore, precise control of the temperature is the key to the injection molding process. The 850PVC pipe fitting injection molding machine is equipped with an intelligent multi-stage temperature control system, which can precisely set the temperature of the screw barrel according to different stages of injection molding. Through this precise temperature control, it is ensured that the PVC raw materials are always in the best melting state. It can not only prevent the decomposition of the raw materials due to excessive temperature, which generates harmful gases and affects the service life of the equipment and the product quality, but also prevent poor fluidity of the material caused by too low a temperature, resulting in injection molding defects.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM850-PVC: PVC injection molding machine
PREV：HXM730-PVC: PVC injection molding machine
NEXT：No next article

  • MODEL: HXM850PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    100

    SCREW L/D RATIO

    L/D

    21

    INJECTION CAPACITY IN THEORY

    cm3

    4264

    INJECTION WEIGHT(PVC)

    g

    5432

    INJECTION PRESSURE

    MPa

    173

    INJECTION RATE

    g/s

    943

    PLASTICIZING CAPACITY

    g/s

    126

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    8500

    MOVING MOULD-PLATE STROKE

    mm

    1120

    MAX. MOULD HEIGHT

    mm

    1050

    MIN. MOULD HEIGHT

    mm

    4000

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1070*1020

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    300

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    62.2

    MACHINE DIMENSION (L*W*H)

    m

    12.18*3.0*2.74

    MACHINE WEIGHT

    t

    40.9

    OIL TANK CAPACITY

    L

    1000
