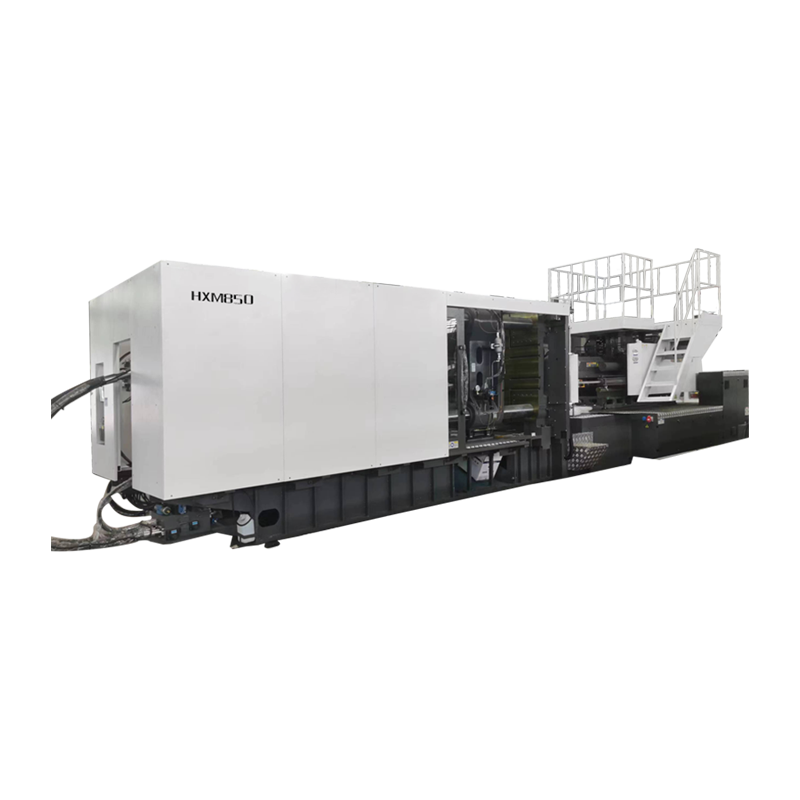

HXM850: HXM servo injection molding machine
HXM Servo Machine

HXM850: HXM servo injection molding machine

HXM850 Servo Injection Molding Machine demonstrates exceptional performance with its core injection system. Equipped with an oversized-diameter, high-wear-resistant screw and a high-thrust injection cylinder, it delivers stable, powerful injection pressure and flow even during high-speed operation. Designed for large plastic products such as automotive headlights and oversized home appliance housings, it ensures efficient, high-quality molding with superior precision and consistency.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM850: HXM servo injection molding machine
PREV：HXM750-II: HXM servo injection molding machine
NEXT：HXM1100-I: HXM servo injection molding machine

  • MODEL: HXM850/7300

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    95

    100

    105

    SCREW L/D RATIO

    L/D

    22

    21

    20

    INJECTION CAPACITY IN THEORY

    cm3

    3849

    4264

    4701

    INJECTION WEIGHT(PS)

    g

    3502

    3880

    4278

    oz

    123.5

    136.8

    150.8

    INJECTION PRESSURE

    MPa

    191

    173

    157

    INJECTION RATE

    g/s

    608

    674

    743

    PLASTICIZING CAPACITY

    g/s

    85

    90

    98

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    8500

    MOVING MOULD-PLATE STROKE

    mm

    1120

        MAX. MOULD HEIGHT

    mm

    1050

    MIN. MOULD HEIGHT

    mm

    400

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1070*1020

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    300

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    62.2

    MACHINE DIMENSION (L*W*H)

    m

    12.18*2.40*2.74

    MACHINE WEIGHT

    t

    40.4

    OIL TANK CAPACITY

    L

    1000
