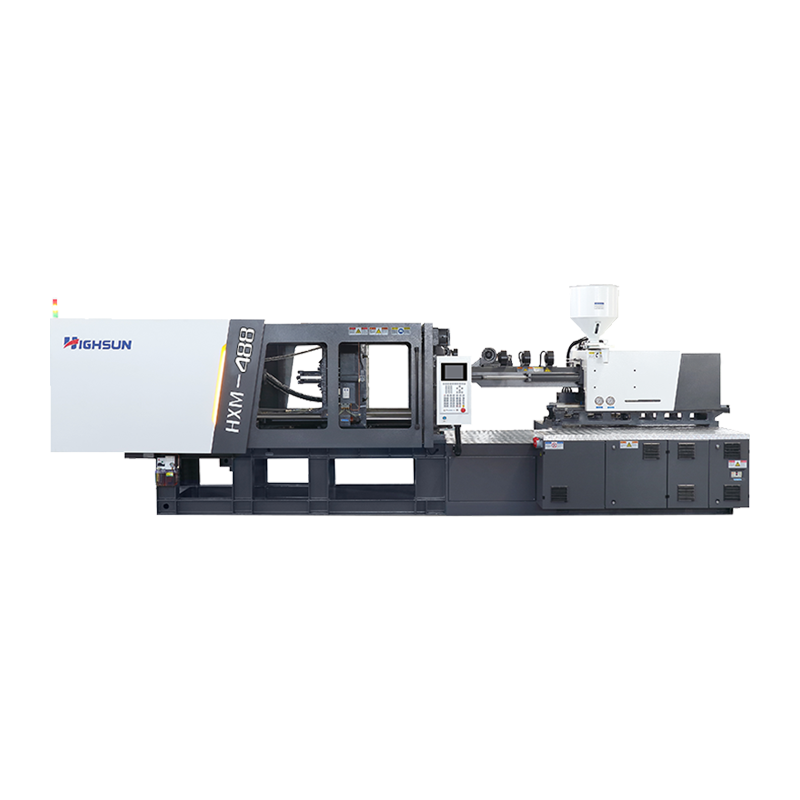

HXM488-PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM488-PVC: PVC injection molding machine

The HXM488T-pvc injection molding machine has an extremely wide mold adaptability. It can be adapted to various molds with different sizes and structures, and is suitable for producing all kinds of PVC pipe fittings, such as large PVC pipe fittings, elbows, tees, etc. Whether it is a standard product of conventional size or a personalized product customized for special needs, it can handle them easily.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM488-PVC: PVC injection molding machine
PREV：HXM428-PVC: PVC injection molding machine
NEXT：HXM558PVC: PVC injection molding machine

  • MODEL: HXM488PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    80

    SCREW L/D RATIO

    L/D

    20

    INJECTION CAPACITY IN THEORY

    cm³

    1860

    INJECTION WEIGHT(PVC)

    g

    2200

    INJECTION PRESSURE

    MPa

    183

    INJECTION RATE

    g/s

    645

    PLASTICIZING CAPACITY

    g/s

    80

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4880

    MOVING MOULD-PLATE STROKE

    mm

    780

    MAX. MOULD HEIGHT

    mm

    820

    MIN. MOULD HEIGHT

    mm

    300

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*770

    HYDRAULIC EJECTOR FORCE

    KN

    134

    HYDRAULIC EJECTOR STROKE

    mm

    200

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+30

    HEATING CAPACITY

    KW

    26.45

    MACHINE DIMENSION (L*W*H)

    m

    8.05*2.67*2.41

    MACHINE WEIGHT

    t

    17

    OIL TANK CAPACITY

    L

    969
