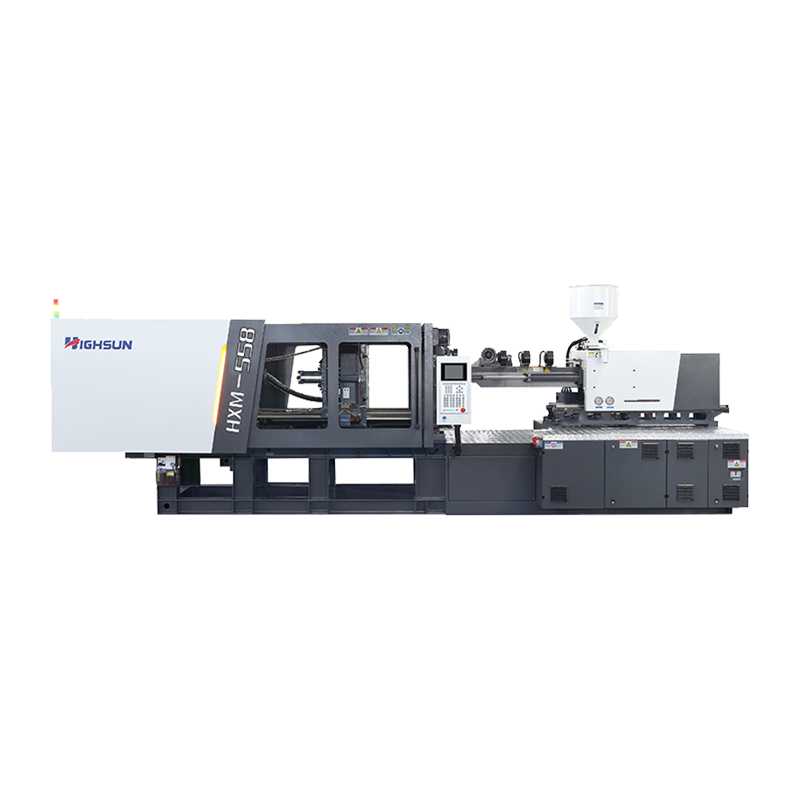

HXM558PVC: PVC injection molding machine
PVC Injection Molding Machine

HXM558PVC: PVC injection molding machine

HXM 558PVC  injection molding machine is equipped with an enhanced hydraulic motor to meet the exceptionally high screw torque demands during PVC plasticization. During injection, the robust power output ensures stable and efficient material conveyance by the screw, enabling uniform mold cavity filling under high pressure. This process guarantees the production of high-quality pipe fittings, meeting the manufacturing demands for PVC pipe fittings of diverse specifications and varying complexities.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM558PVC: PVC injection molding machine
PREV：HXM488-PVC: PVC injection molding machine
NEXT：HXM658-PVC: PVC injection molding machine

  • MODEL: HXM558PVC

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    85

    SCREW L/D RATIO

    L/D

    20

    INJECTION CAPACITY IN THEORY

    cm³

    2382

    INJECTION WEIGHT(PVC)

    g

    2810

    INJECTION PRESSURE

    MPa

    182

    INJECTION RATE

    g/s

    710

    PLASTICIZING CAPACITY

    g/s

    90

    SCREW SPEED

    rpm

    150

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5580

    MOVING MOULD-PLATE STROKE

    mm

    870

    MAX. MOULD HEIGHT

    mm

    830

    MIN. MOULD HEIGHT

    mm

    330

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    870*840

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    230

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+40

    HEATING CAPACITY

    KW

    28.85

    MACHINE DIMENSION (L*W*H)

    m

    9.37*2.79*2.47

    MACHINE WEIGHT

    t

    21

    OIL TANK CAPACITY

    L

    1156
About Highsun
Ningbo Beilun Highsun Machinery Co., Ltd.
HIGHSUN MACHINERY is located in Beilun Science and Technology Park, Ningbo, Zhejiang province, which is "the capital city of plastic machines" in China. We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand.

We are a professional China HXM558PVC: PVC injection molding machine suppliers and HXM558PVC: PVC injection molding machine company, We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand. has long been dedicated to delicacy management and zero defect production, and has formed a characteristic series represented by small tonnage of hybrid machine, medium tonnage of toggle machine, and large tonnage of two-platen machine.
