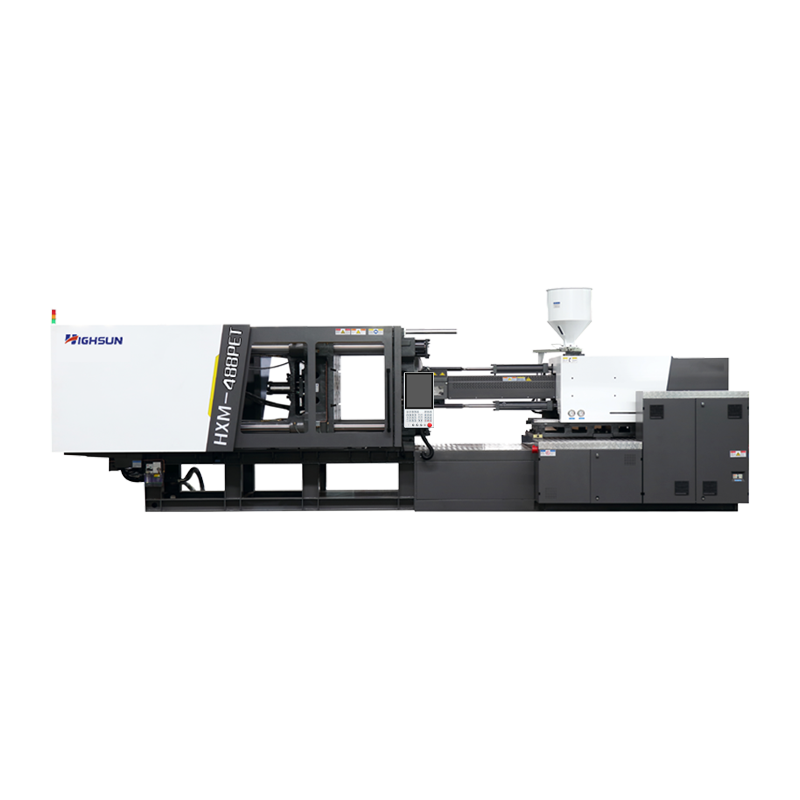

HXM488-PET: PET-preform injection molding machine
PET Preform Injection Molding Machine

HXM488-PET: PET-preform injection molding machine

A brand-new intelligent hydraulic oil circuit design is adopted. By introducing advanced flow adaptive control technology and intelligent pressure regulation technology, it can automatically and precisely adjust the flow and pressure of the hydraulic oil according to the requirements of different working stages of the equipment, leading to a qualitative leap in the stability and reliability of the whole machine's operation. At the same time, the operation noise of the equipment is reduced by 20 to 25 decibels compared with the past, creating a quieter and more comfortable working environment for the operators.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM488-PET: PET-preform injection molding machine
PREV：HXM428-PET: PET-preform injection molding machine
NEXT：HXM558-PET: PET-preform injection molding machine

  • MODEL: HX(*)488PET

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    95

    SCREW L/D RATIO

    L/D

    24

    INJECTION CAPACITY (THEORETICAL)

    cm³

    2977

    INJECTION WEIGHT(PET)

    g

    3453

    INJECTION PRESSURE

    MPa

    130

    INJECTION RATE

    g/s

    918

    PLASTICIZING CAPACITY

    g/s

    95

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4880

    MOVING MOULD-PLATE STROKE

    mm

    830

    MAX. MOULD HEIGHT

    mm

    820

    MIN. MOULD HEIGHT

    mm

    300

    SPACE BETWEEN TIE-BARS (W×H)

    mm

    820*800

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    210

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+30

    HEATING POWER

    KW

    66.75

    MACHINE DIMENSION (L×W×H)

    m

    8.55*2.07*2.41

    MACHINE WEIGHT

    t

    16.5

    OIL TANK

    L

    630
