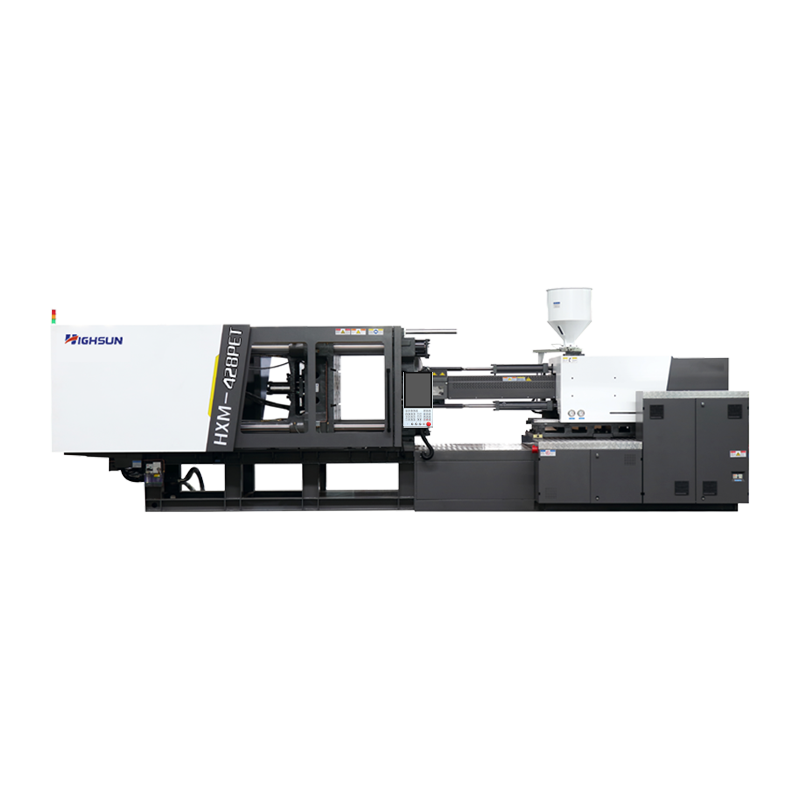

HXM428-PET: PET-preform injection molding machine
PET Preform Injection Molding Machine

HXM428-PET: PET-preform injection molding machine

The power system selects motors with greater power and higher efficiency, and in conjunction with the optimally designed transmission device, it provides a continuous and powerful source of power for the key actions of the injection molding machine, such as high-speed injection and high-pressure mold clamping. While ensuring the efficient operation of the equipment, it can further reduce the energy consumption during the operation of the equipment, achieving a perfect balance between power and energy conservation, and providing strong support for enterprises to reduce production costs.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM428-PET: PET-preform injection molding machine
PREV：HXM368-PET: PET-preform injection molding machine
NEXT：HXM488-PET: PET-preform injection molding machine

  • MODEL: HX(*)428PET/3800

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    95

    SCREW L/D RATIO

    L/D

    24

    INJECTION CAPACITY (THEORETICAL)

    cm³

    2977

    INJECTION WEIGHT(PET)

    g

    3453

    INJECTION PRESSURE

    MPa

    130

    INJECTION RATE

    g/s

    895

    PLASTICIZING CAPACITY

    g/s

    95

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4280

    MOVING MOULD-PLATE STROKE

    mm

    770

    MAX. MOULD HEIGHT

    mm

    800

    MIN. MOULD HEIGHT

    mm

    280

    SPACE BETWEEN TIE-BARS (W×H)

    mm

    770*740

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    210

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+30

    HEATING POWER

    KW

    66.75

    MACHINE DIMENSION (L×W×H)

    m

    8.72*2.02*2.37

    MACHINE WEIGHT

    t

    16.2

    OIL TANK

    L

    530
