Home / Products / PET Preform Injection Molding Machine / HXM558-PET: PET-preform injection molding machine

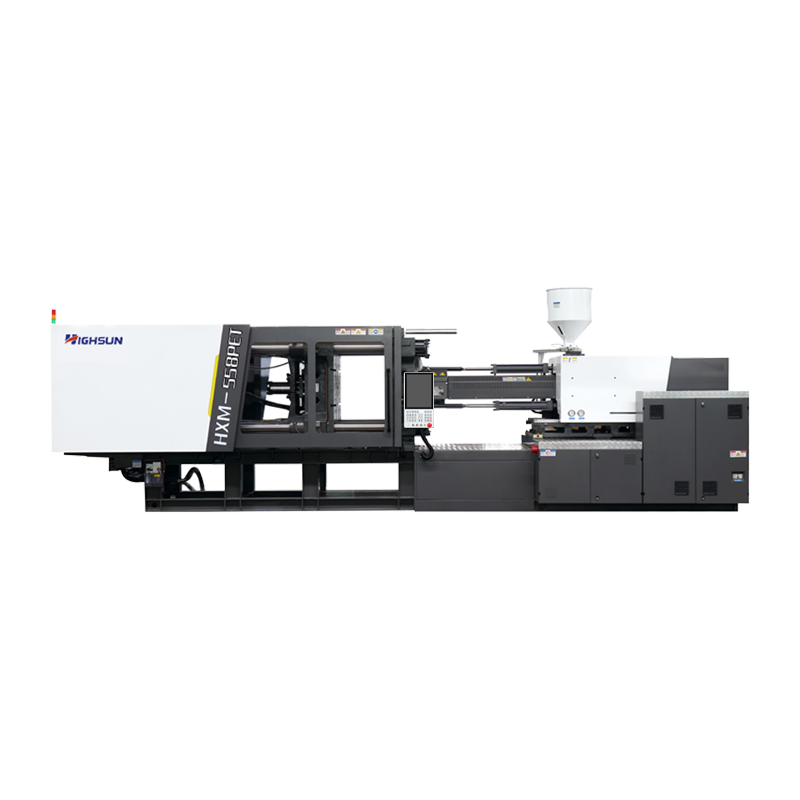

HXM558-PET: PET-preform injection molding machine
PET Preform Injection Molding Machine

HXM558-PET: PET-preform injection molding machine

During the research and development as well as production process of the HXM558T PET injection molding machine, the technological advantages in intelligent and high-precision manufacturing are fully leveraged. Advanced production processes and stringent quality control systems are adopted to ensure that each piece of equipment boasts excellent performance and stable quality, providing customers with comprehensive and one-stop PET injection molding solutions. Meanwhile, a complete after-sales service system is also in place, capable of providing customers with timely and efficient technical support and service guarantees to ensure the stable operation of the equipment.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM558-PET: PET-preform injection molding machine
PREV：HXM488-PET: PET-preform injection molding machine
NEXT：No next article

  • MODEL: HX(*)558PET/4800

    TECHNICAL PARAMETER TABLE

    INJECTION UNIT

    SCREW DIAMETER

    mm

    105

    SCREW L/D RATIO

    L/D

    24

    INJECTION CAPACITY (THEORETICAL)

    cm³

    4069

    INJECTION WEIGHT(PET)

    g

    4720

    INJECTION PRESSURE

    MPa

    119

    INJECTION RATE

    g/s

    1072

    PLASTICIZING CAPACITY

    g/s

    124

    SCREW SPEED

    rpm

    100

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5580

    MOVING MOULD-PLATE STROKE

    mm

    870

    MAX. MOULD HEIGHT

    mm

    830

    MIN. MOULD HEIGHT

    mm

    330

    SPACE BETWEEN TIE-BARS (W×H)

    mm

    870*840

    HYDRAULIC EJECTOR FORCE

    KN

    193

    HYDRAULIC EJECTOR STROKE

    mm

    230

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    30+40

    HEATING POWER

    KW

    42.45

    MACHINE DIMENSION (L×W×H)

    m

    8.54*2.04*2.64

    MACHINE WEIGHT

    t

    22.3

    OIL TANK

    L

    750
About Highsun
Ningbo Beilun Highsun Machinery Co., Ltd.
HIGHSUN MACHINERY is located in Beilun Science and Technology Park, Ningbo, Zhejiang province, which is "the capital city of plastic machines" in China. We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand.

We are a professional China HXM558-PET: PET-preform injection molding machine suppliers and HXM558-PET: PET-preform injection molding machine company, We specialise in producing and marketing high-grade precision plastic injection molding machines under the "HIGHSUN" brand. has long been dedicated to delicacy management and zero defect production, and has formed a characteristic series represented by small tonnage of hybrid machine, medium tonnage of toggle machine, and large tonnage of two-platen machine.
