HXDY 160

HXDY 160

Location:China
Business Type:Manufacturer, Exporter
Brands:HIGHSUN
Certificate:CE
Model:/
Terms of payment and delivery:T/T or L/C at sight
Minimum order quantity:1 set
Price:Consultation
Packing details:Export standard
Delivery time:7-15 Days
Payment method:T/T or L/C at sight
0
Views: 185
E-mail : haixiong@highsun-machinery.com

Product Details

HXYD hybrid series of injection molding machine is a new solution for high-endpacking industry, high-end household wares and medical suppliers industry, which was researching and developing on base of fully-electric(injection speed:500mm/
s, start producing since 2009) and high-speed series(start producing since
2012), combined with the clamping unit of high-speed series and injection unit of fully-electric series, considerated with both of energy saving and environment protection. It satisfies the needs of stronger clamping force and higher performance of injection unit, provide more energy saving and higher efficience(simultaneously mold opening and charging).

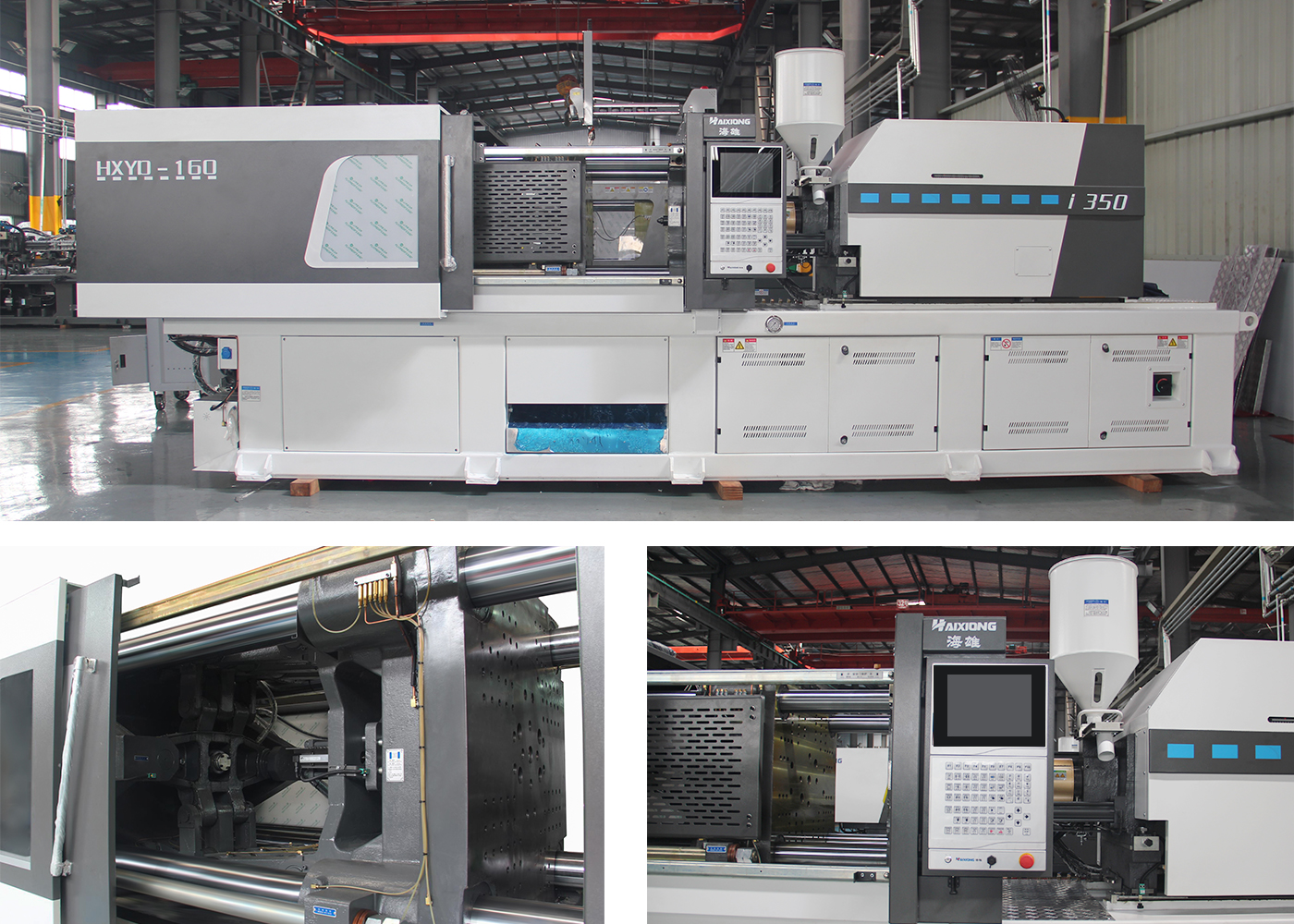

HXYD160
Technical Parameter Table i350 i450 i650
Injection Unit  Screw diameter mm 32 36 40 36 40 45 40 45 50
Screw L/D ratio L/D 23.6 21 18.9 23.3 21 18.6 22.5 20 18
Injection capacity in theory cm3 144 183 226 183 226 286 263 334 412
Injection weight(ps) g 131 166 205 166 205 260 240 303 375
Injection pressure MPa 2531 2000 1620 2469 2000 1580 2531 2000 1620
Injection velocity mm/s 350
Plasticizing capacity g/s 16 22 30 20 30 42 30 42 50
Screw speed rpm 400
Clamping Unit Clamping force KN 1600
Moving mould-plate stroke mm 420
Max.Mould height mm 530
Min.Mould height mm 150
Space between tie-bars(W×H) mm 520×470
Hydraulic ejector force KN 68
Hydraulic ejector stroke mm 130
Ejector number n 5
Other Pump pressure MPa 17.5
Motor/Driving power KW 37(注)+23(熔)+18.5(油) 37(注)+23(熔)+18.5(油) 37(注)+23(熔)+18.5(油)
Heating capacity KW 8.2 10.5 13.55
Machine dimension m 5.2×1.49×1.61 5.42×1.49×1.72 5.61×1.49×1.82
Machine weight t 6.5 6.83 7.1
Oil tank capacity L 190

















Highsun plastic injecdtion molding machine
