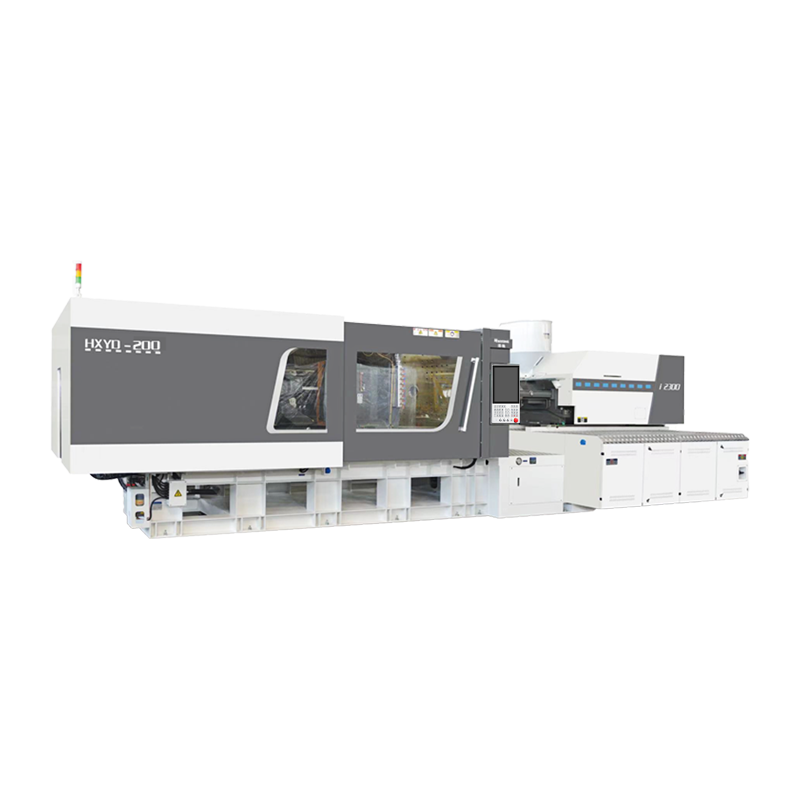

HXYD-200: HXYD hybrid injection molding machine

Product Details

HXYD Series – Hybrid Injection Molding Machine is a new solution scheme for high-end packaging industry, high-end daily necessities industry and medical supply industry, which is based on full-electric machine(Injection rate: 500mm/s; production was started in 2009) and high-speed machine (production was started in 2012). It is combined with the clamping parts of high-speed machine and injection parts of full-electric machine, taking into account the demand of energy saving and environmental protection. It meets the requirement of large clamping force and high performance injection unit for this kind of product. (Mould Open&Charge Simultaneously.)

Product Introduction:
1. Modular Injection Unit with Excellent Acceleration Performance
2. High-stiffness Clamping Unit for High-speed Machine.
3. Hydraulic System with High Response and Low Noise.
4. Optimized Control System Excellent in Response and Accuration for Hybrid Machine

HXYD200

Clamping Unit



Clamping force

kN

2000

Moving mould-plate stroke

mm

500

Max.Mould height

mm

580

Min.Mould height

mm

200

Space between tie-bars

mm

570x520

Hydraulic ejector force

kN

83

Hydraulic ejector stroke

mm

150

Ejector number

n

9



Injection Unit

I450

I650

I900

Screw diameter

mm

36

40

45

40

45

50

45

50

55

Screw LD ratio

LD

23.3

21

21

22.5

20

20

22.2

20

20

lnjection capacity in theory

Cm³

183

226

286

263

334

412

381

471

570

Injection weight(PS)

g

166

205

260

240

303

375

347

428

518

Injection pressure

bar

2612

2000

1580

2531

2000

1620

2469

2000

1653

Injection velocity

mm/s

350

350

350

Plasticizing capacity

g/s

20

30

42

30

42

50

42

50

60

Screw speed

rpm

400

400

400











Other





Pump pressure

MPa

17.5

Motor/Driving power

kW

37(注)+23(熔)+23(油)

37(注)+23(熔)+30(油)

37(注)+23(熔)+30(油)

Heating capacity

kW

8.2

10.5

13.55

Machine dimension

m

5.7 x1.759 x 1.97

5.8x 1.759x 2.05

5.8x 1.759x 2.05

Machine weight

t

7.8

9.1

8.1

oil tank capacity

L

240
