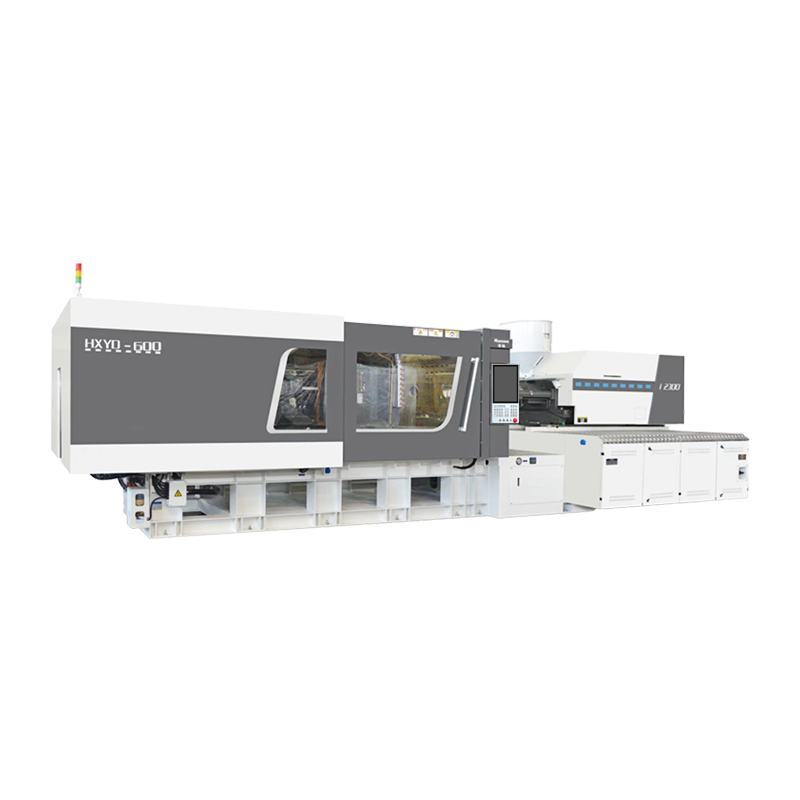

HXYD-600: HXYD hybrid injection molding machine
HXM Servo Machine

HXYD-600: HXYD hybrid injection molding machine

This injection molding machine is equipped with a meticulously designed and optimized high-precision screw and advanced drive mechanisms. The screw’s parameters, including thread pitch and compression ratio, are precisely calibrated to achieve uniform plasticization and stable material conveyance. During the injection process, leveraging advanced sensors and a precision control system, it enables precise regulation of shot volume, injection speed, and injection pressure. With a shot repeat accuracy of ±0.5%, it ensures highly consistent weight and dimensional precision for every molded product.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXYD-600: HXYD hybrid injection molding machine
PREV：HXYD-520: HXYD hybrid injection molding machine
NEXT：HXYD-700: HXYD hybrid injection molding machine

  • MODEL: HXYD 600/i2700H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    70

    75

    80

    SCREW L/D RATIO

    L/D

    21.4

    20

    20

    INJECTION CAPACITY IN THEORY

    cm3

    1308.47

    1502.07

    1709.03

    INJECTION WEIGHT(PS)

    g

    1190.71

    1366.89

    1555.21

    INJECTION PRESSURE

    MPa

    2066.33

    1800

    1582.03

    PLASTICIZING CAPACITY

    g/s

    112

    125

    145

    SCREW SPEED

    rpm

    400

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    67+67(注)+62(熔)+38+38(油)

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    6000

    MOVING MOULD-PLATE STROKE

    mm

    970

    MAX. MOULD HEIGHT

    mm

    950

    MIN. MOULD HEIGHT

    mm

    350

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    970*920

    HYDRAULIC EJECTOR FORCE

    KN

    200

    HYDRAULIC EJECTOR STROKE

    mm

    260

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    34

    MACHINE DIMENSION (L*W*H)

    m

    9.61*3.34*2.83

    MACHINE WEIGHT

    t

    29

    OIL TANK CAPACITY

    L

    969
