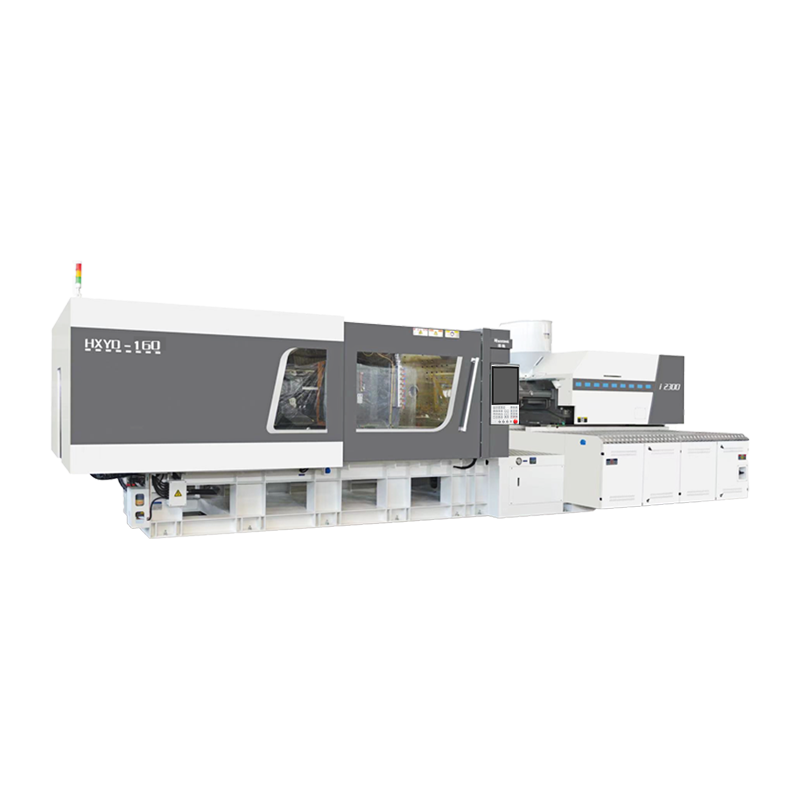

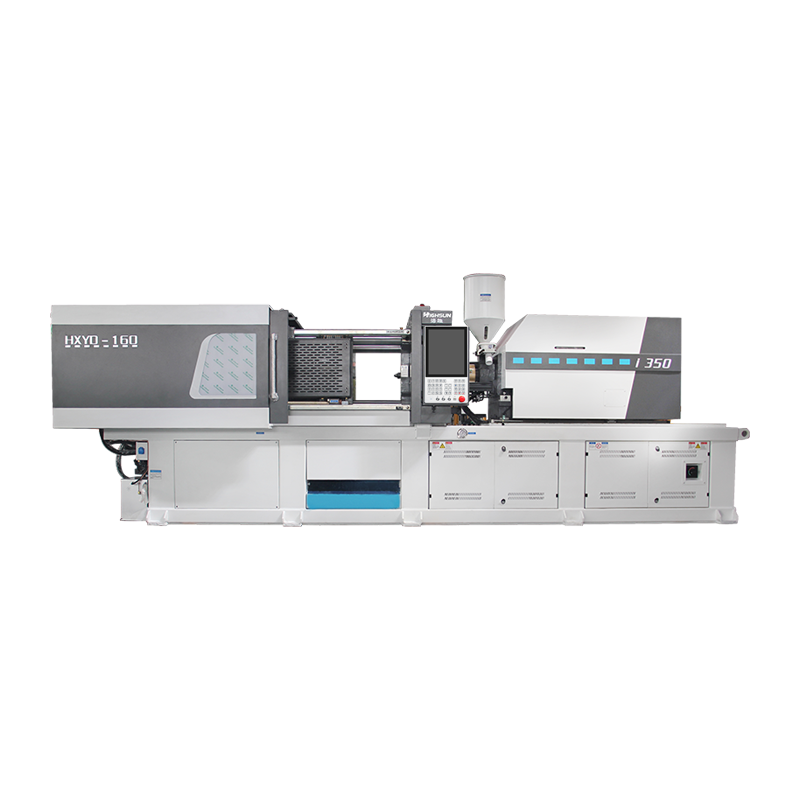

HXYD-160: HXYD hybrid injection molding machine

Product Details

HXYD Series – Hybrid Injection Molding Machine is a new solution scheme for high-end packaging industry, high-end daily necessities industry and medical supply industry, which is based on full-electric machine(Injection rate: 500mm/s; production was started in 2009) and high-speed machine (production was started in 2012). It is combined with the clamping parts of high-speed machine and injection parts of full-electric machine, taking into account the demand of energy saving and environmental protection. It meets the requirement of large clamping force and high performance injection unit for this kind of product. (Mould Open&Charge Simultaneously.)

Product Introduction:
1. Modular Injection Unit with Excellent Acceleration Performance
2. High-stiffness Clamping Unit for High-speed Machine.
3. Hydraulic System with High Response and Low Noise.
4. Optimized Control System Excellent in Response and Accuration for Hybrid Machine

HXYD160

Clamping Unit



Clamping force

kN

1600

Moving mould-plate stroke

mm

420

Max.Mould height

mm

530

Min.Mould height

mm

150

Space between tie-bars

mm

520x470

Hydraulic ejector force

kN

68

Hydraulic ejector stroke

mm

130

Ejector number

n

5



Injection Unit

i350

i450

i650

Screw diameter

mm

32

36

40

36

40

45

40

45

50

Screw LD ratio

LD

23.6

21

21

23.3

21

21

22.5

20

20

lnjection capacity in theory

Cm³

144

183

226

183

226

286

263

334

412

Injection weight(PS)

g

131

166

205

166

205

260

240

303

375

Injection pressure

bar

2531

2000

1620

2469

2000

1580

2531

2000

1620

Injection velocity

mm/s

350

350

350

Plasticizing capacity

g/s

16

22

30

20

30

42

30

42

50

Screw speed

rpm

400

400

400



Other



Pump pressure

MPa

17.5

Motor/Driving power

kW

37(注)+23(熔)+18.5(油)

37(注)+23(熔)+18.5(油)

37(注)+23(熔)+18.5(油)

Heating capacity

kW

8.2

10.5

13.55

Machine dimension

m

5.2x1.49x1.61

5.90x1.49x1.72

5.61x1.49x1.82

Machine weight

t

6.5

7.8

7.1

oil tank capacity

L

190
