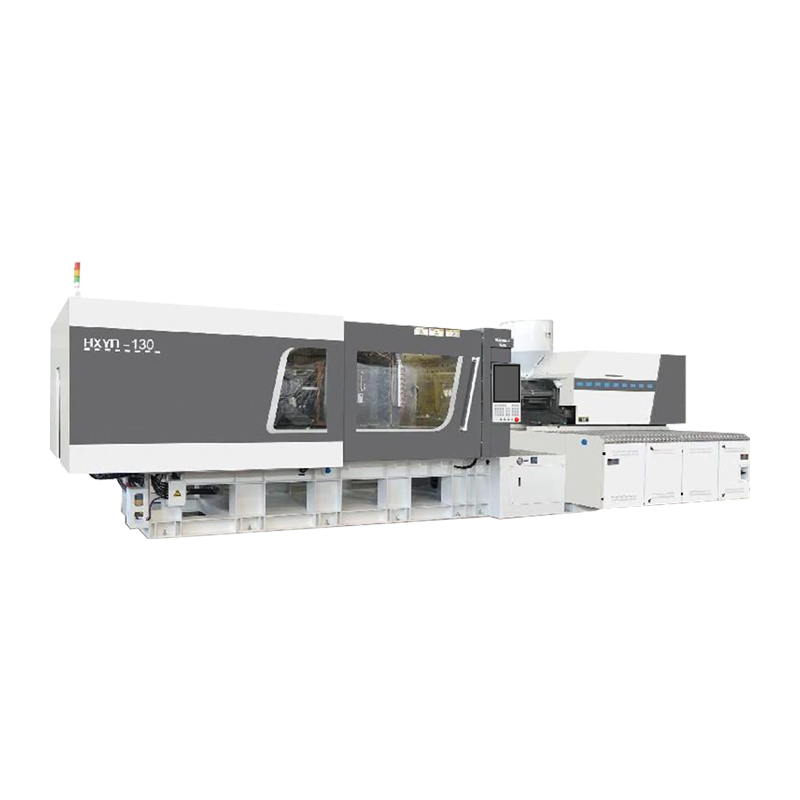

HXYD-130: HXYD hybrid injection molding machine

The advanced hybrid oil-electric drive system intelligently and precisely allocates power based on the varying demands of different stages in medium-sized injection molding processes. During high-speed mold opening/closing and high-pressure injection phases requiring substantial power, the hydraulic system fully leverages its robust power advantages to ensure swift and stable machine movements. Conversely, during phases requiring extreme precision, such as pressure holding and metering, the electric system excels with its accurate control capabilities while effectively minimizing energy consumption. Verified in real-world production, this optimization achieves significant energy savings compared to traditional fully hydraulic injection molding machines, substantially reducing operational costs for enterprises.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-100: HXYD hybrid injection molding machine
NEXT：HXYD-160: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 130/i350H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	32	36	40
	SCREW L/D RATIO	L/D	23.6	21	21
	INJECTION CAPACITY IN THEORY	cm³	144	183	226
	INJECTION WEIGHT(PS)	g	131	166	205
	INJECTION PRESSURE	MPa	2531	2000	1620
	PLASTICIZING CAPACITY	g/s	16	22	30
	SCREW SPEED	rpm	400
	INJECTION UNIT		i350H
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	38(pour)+17(melt)+21(oil)
	INJECTION UNIT
	INJECTION VELOCITY	mm/s
	MOTOR POWER	KW
CLAMPING UNIT	CLAMPING FORCE	KN	1300
	MOVING MOULD-PLATE STROKE	mm	470
	MAX. MOULD HEIGHT	mm	550
	MIN. MOULD HEIGHT	mm	180
	SPACE BWTWEEN TIE-BARS (W*H)	mm	470*470
	HYDRAULIC EJECTOR FORCE	KN	61
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	5
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	10.5
	MACHINE DIMENSION (LWH)	m	5.41.42.1
	MACHINE WEIGHT	t	4.5
	OIL TANK CAPACITY	L	180

MODEL: HXYD 130/i280H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	28	32	36
	SCREW L/D RATIO	L/D	22	23.6	21
	INJECTION CAPACITY IN THEORY	cm³	110	144	183
	INJECTION WEIGHT(PS)	g	100	131	166
	INJECTION PRESSURE	MPa	2612	2000	1580
	PLASTICIZING CAPACITY	g/s	10	16	22
	SCREW SPEED	rpm	400
	INJECTION UNIT		i280H
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	33(pour)+17(melt)+21(oil)
	INJECTION UNIT
	INJECTION VELOCITY	mm/s
	MOTOR POWER	KW
CLAMPING UNIT	CLAMPING FORCE	KN	1300
	MOVING MOULD-PLATE STROKE	mm	470
	MAX. MOULD HEIGHT	mm	550
	MIN. MOULD HEIGHT	mm	180
	SPACE BWTWEEN TIE-BARS (W*H)	mm	470*470
	HYDRAULIC EJECTOR FORCE	KN	61
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	5
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	10.5
	MACHINE DIMENSION (LWH)	m	5.41.42.1
	MACHINE WEIGHT	t	4.5
	OIL TANK CAPACITY	L	180

MODEL: HXYD 130/i180H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	22	25	28
	SCREW L/D RATIO	L/D	22	22	22
	INJECTION CAPACITY IN THEORY	cm³	49	63	80
	INJECTION WEIGHT(PS)	g	44	58	72
	INJECTION PRESSURE	MPa	2841	2200	1754
	PLASTICIZING CAPACITY	g/s	5	7	10
	SCREW SPEED	rpm	400
	INJECTION UNIT		i180H
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	21(pour)+8(melt)+21(oil)
	INJECTION UNIT		i180HS
	INJECTION VELOCITY	mm/s	500
	MOTOR POWER	KW	27(pour)+14(melt)+21(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	1300
	MOVING MOULD-PLATE STROKE	mm	470
	MAX. MOULD HEIGHT	mm	550
	MIN. MOULD HEIGHT	mm	180
	SPACE BWTWEEN TIE-BARS (W*H)	mm	470*470
	HYDRAULIC EJECTOR FORCE	KN	61
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	5
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	10.5
	MACHINE DIMENSION (LWH)	m	5.41.42.1
	MACHINE WEIGHT	t	4.5
	OIL TANK CAPACITY	L	180
