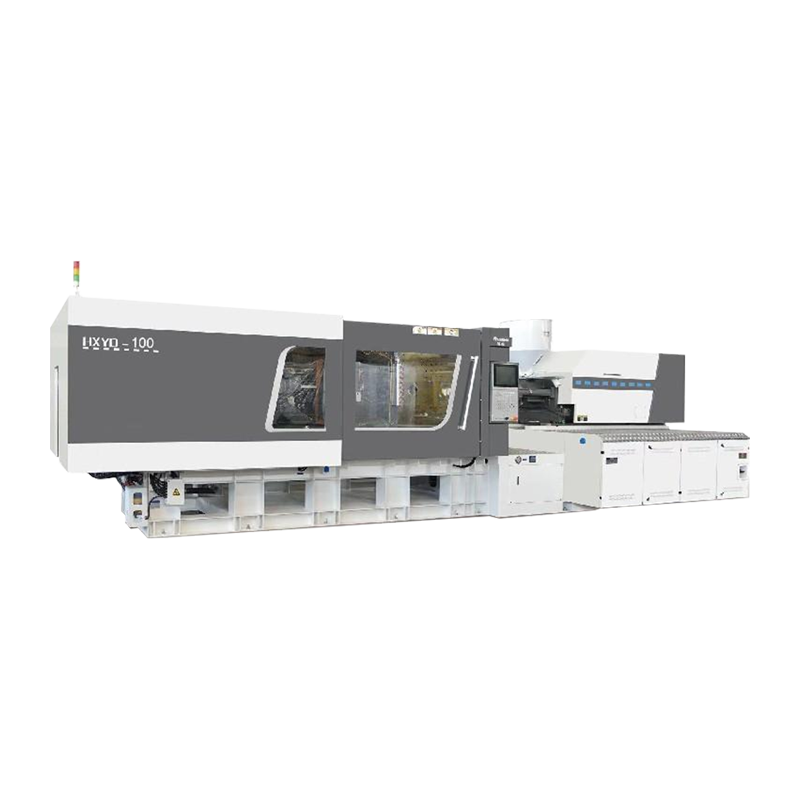

HXYD-100: HXYD hybrid injection molding machine
HXYD Hybrid Machine

HXYD-100: HXYD hybrid injection molding machine

The machine incorporates high-quality hydraulic and electrical components from globally renowned brands, all rigorously inspected and screened to ensure exceptional reliability and stability. The proven technology of the hydraulic system works in tandem with the precise control of the electric system, significantly reducing operational vibrations and noise while extending the equipment’s service life.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXYD-100: HXYD hybrid injection molding machine
PREV：No previous article
NEXT：HXYD-130: HXYD hybrid injection molding machine

  • MODEL: HXYD 100/i280H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    28

    32

    36

    SCREW L/D RATIO

    L/D

    22

    23

    21

    INJECTION CAPACITY IN THEORY

    cm³

    110

    144

    183

    INJECTION WEIGHT(PS)

    g

    100

    131

    166

    INJECTION PRESSURE

    MPa

    2612

    2000

    1580

    PLASTICIZING CAPACITY

    g/s

    10

    16

    22

    SCREW SPEED

    rpm

    400

    INJECTION UNIT



    I280H

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    33(pour)+17(melt)+16(oil)

    INJECTION UNIT





    INJECTION VELOCITY

    mm/s



    MOTOR POWER

    KW



    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1000

    MOVING MOULD-PLATE STROKE

    mm

    410

    MAX. MOULD HEIGHT

    mm

    460

    MIN. MOULD HEIGHT

    mm

    150

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    420*420

    HYDRAULIC EJECTOR FORCE

    KN

    44

    HYDRAULIC EJECTOR STROKE

    mm

    120

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    10.5

    MACHINE DIMENSION (L*W*H)

    m

    4.9*1.3*2.0

    MACHINE WEIGHT

    t

    4.5

    OIL TANK CAPACITY

    L

    170

    MODEL: HXYD 100/i180H

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    22

    25

    28

    SCREW L/D RATIO

    L/D

    22

    22

    22

    INJECTION CAPACITY IN THEORY

    cm³

    49

    63

    80

    INJECTION WEIGHT(PS)

    g

    44

    58

    72

    INJECTION PRESSURE

    MPa

    2841

    2200

    1754

    PLASTICIZING CAPACITY

    g/s

    5

    7

    10

    SCREW SPEED

    rpm

    400

    INJECTION UNIT



    i180H

    INJECTION VELOCITY

    mm/s

    350

    MOTOR POWER

    KW

    21(pour)+8(melt)+16(oil)

    INJECTION UNIT



    i180HS

    INJECTION VELOCITY

    mm/s

    500

    MOTOR POWER

    KW

    27(pour)+8(melt)+16(oil)

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1000

    MOVING MOULD-PLATE STROKE

    mm

    410

    MAX. MOULD HEIGHT

    mm

    460

    MIN. MOULD HEIGHT

    mm

    150

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    420*420

    HYDRAULIC EJECTOR FORCE

    KN

    44

    HYDRAULIC EJECTOR STROKE

    mm

    120

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    16

    HEATING CAPACITY

    KW

    7

    MACHINE DIMENSION (L*W*H)

    m

    4.9*1.3*2.0

    MACHINE WEIGHT

    t

    3.5

    OIL TANK CAPACITY

    L

    170
