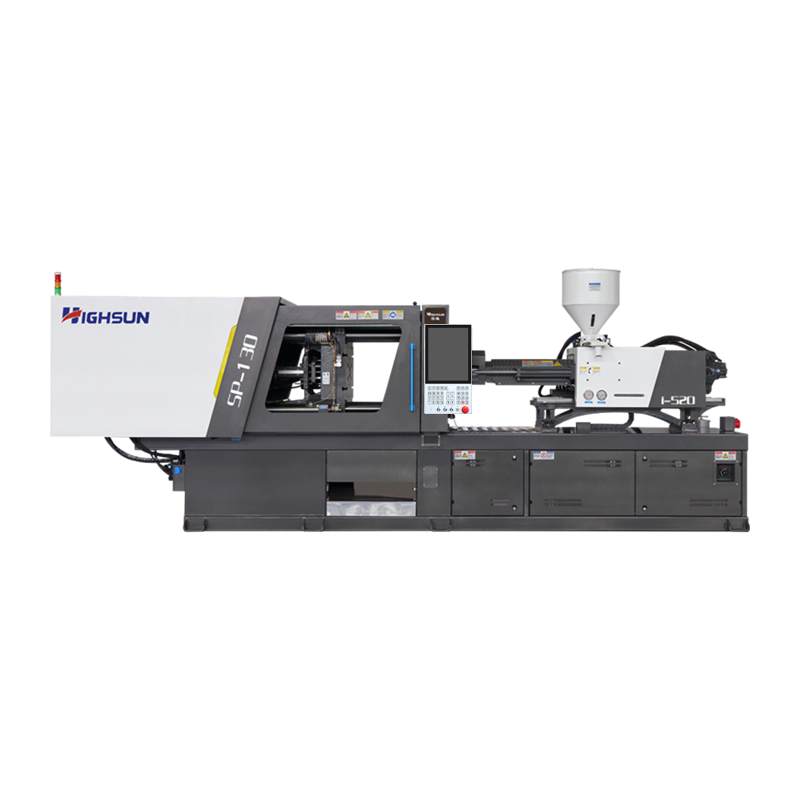

SP130: SP smart power injection molding machine
SP Smart Power High Performance Machine

SP130: SP smart power injection molding machine

The SP130 is equipped with advanced energy consumption monitoring and fault early warning functions, which facilitate enterprises to manage and maintain the equipment, and enhance the equipment's utilization value. When there are potential faults in the equipment, the system can give early warnings and provide fault diagnosis suggestions, helping enterprises to solve problems in a timely manner, reducing downtime and improving the equipment utilization rate.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • SP130: SP smart power injection molding machine
PREV：SP100-i390: SP smart power injection molding machine
NEXT：SP160: SP smart power injection molding machine

  • MODEL: SP130/i520

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    36

    40

    45

    SCREW L/D RATIO

    L/D

    23.3

    21

    21

    INJECTION CAPACITY IN THEORY

    cm³

    203

    251

    318

    INJECTION WEIGHT(PS)

    g

    185

    228

    289

    INJECTION PRESSURE

    MPa

    230

    186

    147

    INJECTION RATE

    g/s

    132

    163

    207

    PLASTICIZING CAPACITY

    g/s

    15

    22

    29

    SCREW SPEED

    rpm

    300

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    1300

    MOVING MOULD-PLATE STROKE

    mm

    410

    MAX. MOULD HEIGHT

    mm

    460

    MIN. MOULD HEIGHT

    mm

    150

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    420*420

    HYDRAULIC EJECTOR FORCE

    KN

    49

    HYDRAULIC EJECTOR STROKE

    mm

    120

    EJECTOR NUMBER

    n

    5

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    21

    HEATING CAPACITY

    KW

    13.75

    MACHINE DIMENSION (L*W*H)

    m

    4.87*1.25*2.00

    MACHINE WEIGHT

    t

    4.6

    OIL TANK CAPACITY

    L

    200
