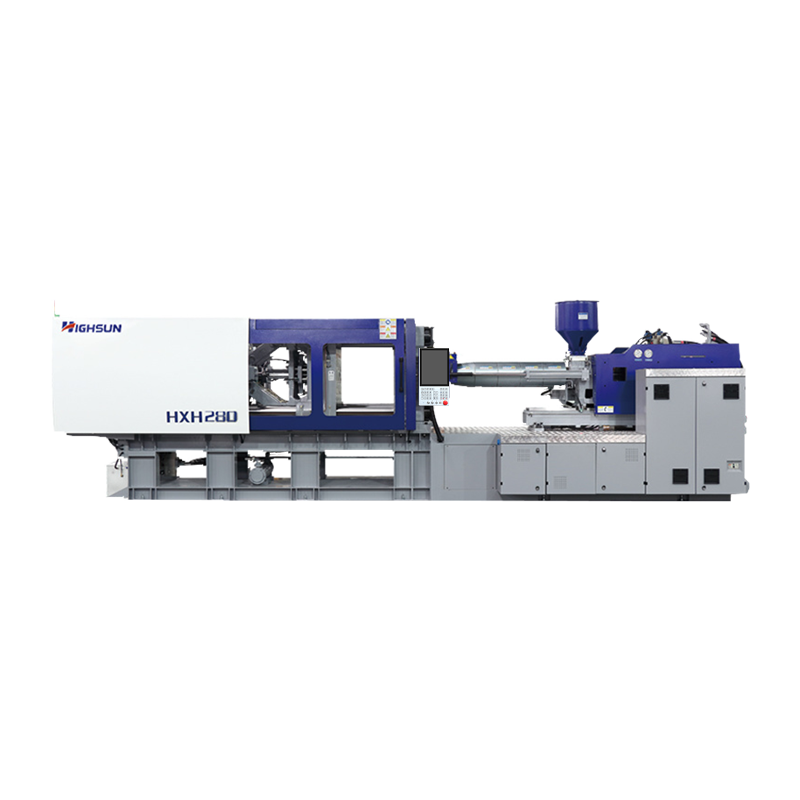

HXH280: HXH high-speed injection molding machine
HXH High-Speed Machine

HXH280: HXH high-speed injection molding machine

It is equipped with an industry-leading intelligent control system, which can achieve full closed-loop precise control of the injection molding process. High-precision sensors are used to monitor key parameters such as pressure, temperature, and position in real time during the injection molding process, and the data is fed back to the control system in real time. The control system automatically and quickly adjusts the operating status of the equipment according to the preset precise parameters to ensure the high precision and stability of the injection molding process. During the injection molding process, once there is a slight fluctuation in pressure, the control system can make precise adjustments within milliseconds to ensure that the pressure always remains stable at the set value, thus ensuring that the product quality is not affected in the slightest.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXH280: HXH high-speed injection molding machine
PREV：HXH260: HXH high-speed injection molding machine
NEXT：HXH300: HXH high-speed injection molding machine

  • MODEL: HXH280

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    50

    55

    SCREW L/D RATIO

    L/D

    24

    22

    INJECTION CAPACITY IN THEORY

    cm3

    422

    510

    INJECTION WEIGHT(PS)

    g

    384

    464

    INJECTION PRESSURE

    MPa

    161

    133

    INJECTION VELOCITY

    mm/s

    400

    PLASTICIZING CAPACITY

    g/s

    57

    80

    SCREW SPEED

    rpm

    400

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    2800

    MOVING MOULD-PLATE STROKE

    mm

    530

    MAX. MOULD HEIGHT

    mm

    600

    MIN. MOULD HEIGHT

    mm

    230

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    610*560

    HYDRAULIC EJECTOR FORCE

    KN

    80

    HYDRAULIC EJECTOR STROKE

    mm

    150

    EJECTOR NUMBER

    n

    9

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR/DRIVING POWER

    KW

    37+37

    HEATING CAPACITY

    KW

    17.8

    MACHINE DIMENSION (L*W*H)

    m

    6.49*1.80*2.11

    MACHINE WEIGHT

    t

    10

    OIL TANK CAPACITY

    L

    420
