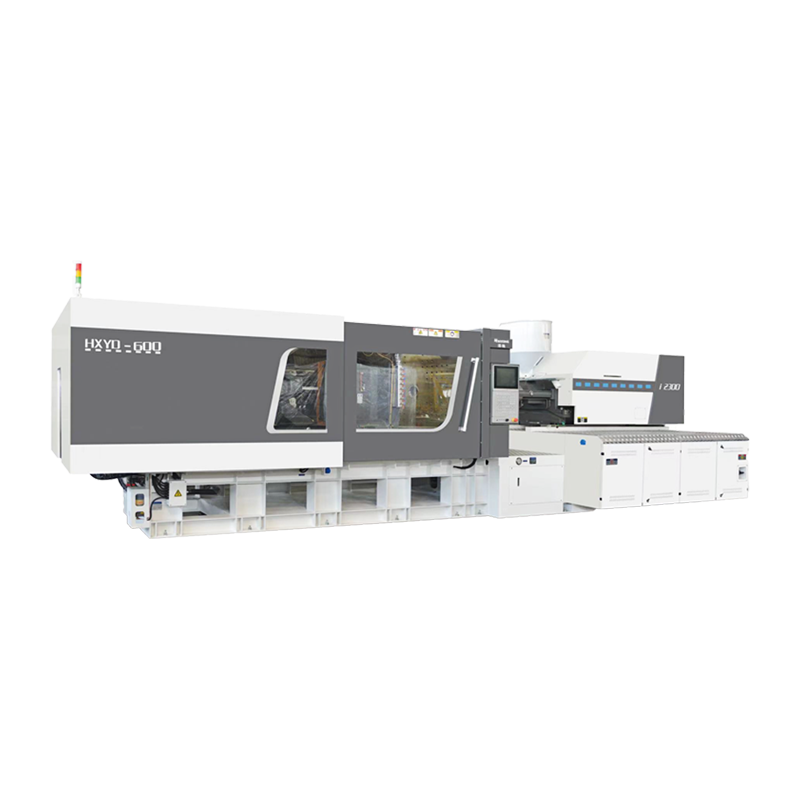

HXYD-600: HXYD hybrid injection molding machine

This injection molding machine is equipped with a meticulously designed and optimized high-precision screw and advanced drive mechanisms. The screw’s parameters, including thread pitch and compression ratio, are precisely calibrated to achieve uniform plasticization and stable material conveyance. During the injection process, leveraging advanced sensors and a precision control system, it enables precise regulation of shot volume, injection speed, and injection pressure. With a shot repeat accuracy of ±0.5%, it ensures highly consistent weight and dimensional precision for every molded product.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-520: HXYD hybrid injection molding machine
NEXT：HXYD-700: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 600/i2700H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	70	75	80
	SCREW L/D RATIO	L/D	21.4	20	20
	INJECTION CAPACITY IN THEORY	cm³	1308.47	1502.07	1709.03
	INJECTION WEIGHT(PS)	g	1190.71	1366.89	1555.21
	INJECTION PRESSURE	MPa	2066.33	1800	1582.03
	PLASTICIZING CAPACITY	g/s	112	125	145
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67+67(pour)+62(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	6000
	MOVING MOULD-PLATE STROKE	mm	970
	MAX. MOULD HEIGHT	mm	950
	MIN. MOULD HEIGHT	mm	350
	SPACE BWTWEEN TIE-BARS (W*H)	mm	970*920
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	260
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	34
	MACHINE DIMENSION (LWH)	m	9.613.342.83
	MACHINE WEIGHT	t	29
	OIL TANK CAPACITY	L	969

MODEL: HXYD 600/i2700H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	70	75	80
	SCREW L/D RATIO	L/D	21.4	20	20
	INJECTION CAPACITY IN THEORY	cm³	1308.47	1502.07	1709.03
	INJECTION WEIGHT(PS)	g	1190.71	1366.89	1555.21
	INJECTION PRESSURE	MPa	2066.33	1800	1582.03
	PLASTICIZING CAPACITY	g/s	112	125	145
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67+67(pour)+62(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	6000
	MOVING MOULD-PLATE STROKE	mm	970
	MAX. MOULD HEIGHT	mm	950
	MIN. MOULD HEIGHT	mm	350
	SPACE BWTWEEN TIE-BARS (W*H)	mm	970*920
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	260
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	34
	MACHINE DIMENSION (LWH)	m	9.613.342.83
	MACHINE WEIGHT	t	29
	OIL TANK CAPACITY	L	969

MODEL: HXYD 600/i1600H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	60	65	70
	SCREW L/D RATIO	L/D	21.6	20	20
	INJECTION CAPACITY IN THEORY	cm³	791	929	1078
	INJECTION WEIGHT(PS)	g	720	845	980
	INJECTION PRESSURE	MPa	2113	1800	1552
	PLASTICIZING CAPACITY	g/s	75	90	105
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	6000
	MOVING MOULD-PLATE STROKE	mm	970
	MAX. MOULD HEIGHT	mm	950
	MIN. MOULD HEIGHT	mm	350
	SPACE BWTWEEN TIE-BARS (W*H)	mm	970*920
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	260
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	28
	MACHINE DIMENSION (LWH)	m	8.792.142.57
	MACHINE WEIGHT	t	26
	OIL TANK CAPACITY	L	969
