HXM2500: HXM servo injection molding machine
HXM Servo Machine

HXM2500: HXM servo injection molding machine

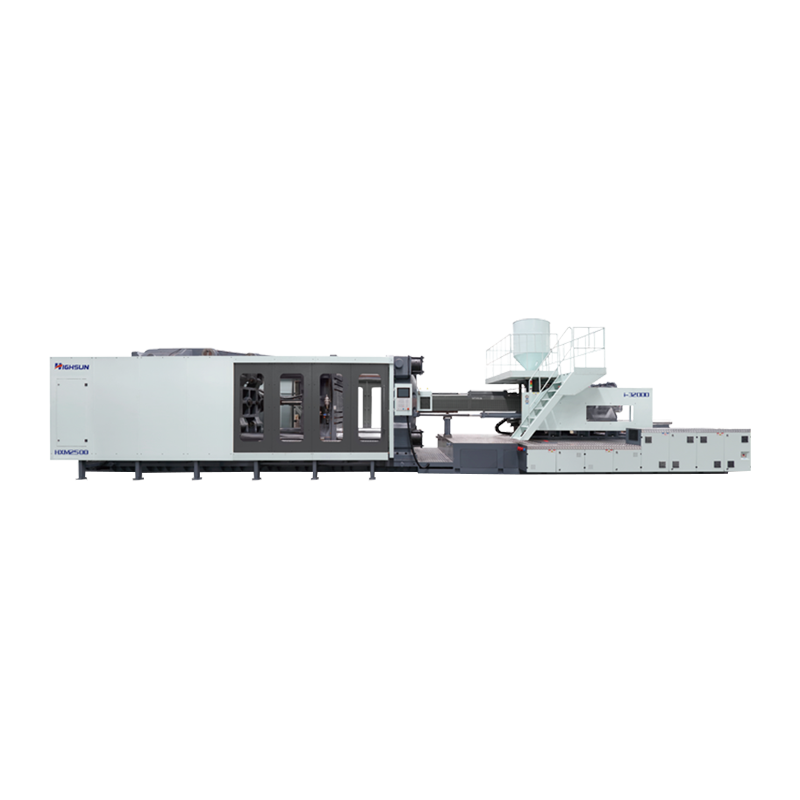

The HXM2500 Servo Energy-Saving Injection Molding Machine is a flagship model in the Haixong Series developed for super-sized plastic products. Building upon the 2200-ton foundation, it features upgraded clamping force and enhanced energy-saving technologies, making it ideal for large-scale production scenarios requiring high tonnage and precision. This machine is particularly suited for manufacturing oversized products such as trash bins and logistics pallets.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM2500: HXM servo injection molding machine
PREV：HXM2200: HXM servo injection molding machine
NEXT：No next article

  • MODEL: HXM2500/44000

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    INJECTION UNIT

    SCREW DIAMETER

    mm

    170

    185

    200

    SCREW L/D RATIO

    L/D

    23

    22

    21

    INJECTION CAPACITY IN THEORY

    cm³

    24059

    28493

    33300

    INJECTION WEIGHT(PS)

    g

    21894

    25928

    30303



    oz

    772.2

    914.5

    1068.8

    INJECTION PRESSURE

    MPa

    186

    157

    134

    INJECTION RATE

    g/s

    1424

    1686

    1970

    PLASTICIZING CAPACITY

    g/s

    127

    170

    220

    SCREW SPEED

    rpm

    65

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    25000

    MOVING MOULD-PLATE STROKE

    mm

    1900

        MAX. MOULD HEIGHT

    mm

    1800

    MIN. MOULD HEIGHT

    mm

    800

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1850*1700

    HYDRAULIC EJECTOR FORCE

    KN

    520

    HYDRAULIC EJECTOR STROKE

    mm

    450

    EJECTOR NUMBER

    n

    33

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    47+47+47+47

    HEATING CAPACITY

    KW

    214.15

    MACHINE DIMENSION (L*W*H)

    m

    19.50*4.00*5.20

    MACHINE WEIGHT

    t

    163.1

    OIL TANK CAPACITY

    L

    2700
