HXYD Hybrid Machine

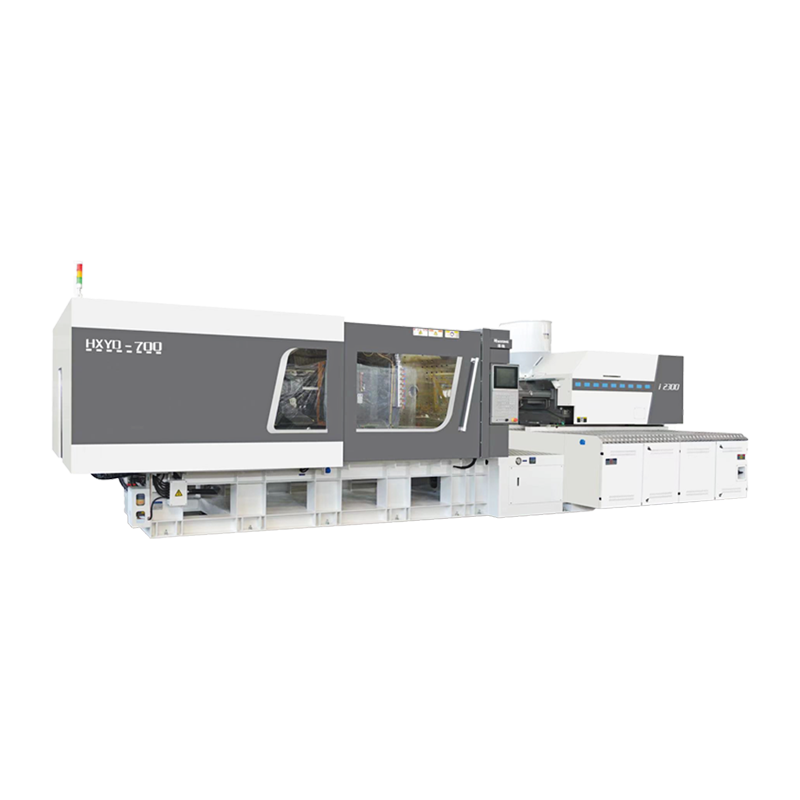

HXYD-700: HXYD hybrid injection molding machine

Our 700-ton hybrid oil-electric injection molding machine adopts cutting-edge hybrid drive technology, ingeniously combining the robust clamping force of hydraulic systems with the precise injection control of electric systems. The electric system, equipped with high-performance motors, delivers swift and precise power for material injection, ensuring rapid and accurate filling of mold cavities, thereby significantly enhancing production efficiency and product quality. Meanwhile, the hydraulic system generates an immense 700-ton clamping force to maintain mold tightness during injection, effectively preventing material overflow. The synergy between these two systems achieves highly efficient power output, surpassing the performance of traditional injection molding machines.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-600: HXYD hybrid injection molding machine
NEXT：No next article

Description
Video

MODEL: HXYD 700/i3300H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	75	80	85
	SCREW L/D RATIO	L/D	21.3	20	20
	INJECTION CAPACITY IN THEORY	cm³	1634.41	1859.82	2099.57
	INJECTION WEIGHT(PS)	g	1487.5	1692.44	1910.6
	INJECTION PRESSURE	MPa	2048	1800	1594.46
	PLASTICIZING CAPACITY	g/s	128	150	162
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67+67(pour)+62(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	7000
	MOVING MOULD-PLATE STROKE	mm	950
	MAX. MOULD HEIGHT	mm	960
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W*H)	mm	1000*950
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	280
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	38.85
	MACHINE DIMENSION (LWH)	m	11.742.453.65
	MACHINE WEIGHT	t	34
	OIL TANK CAPACITY	L	1067

MODEL: HXYD 700/i2700H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	70	75	80
	SCREW L/D RATIO	L/D	21.4	20	20
	INJECTION CAPACITY IN THEORY	cm³	1308.47	1502.07	1709.03
	INJECTION WEIGHT(PS)	g	1190.71	1366.89	1555.21
	INJECTION PRESSURE	MPa	2066.33	1800	1582.03
	PLASTICIZING CAPACITY	g/s	112	125	145
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67+67(pour)+62(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	7000
	MOVING MOULD-PLATE STROKE	mm	950
	MAX. MOULD HEIGHT	mm	960
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W*H)	mm	1000*950
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	280
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	34.85
	MACHINE DIMENSION (LWH)	m	10.792.453.31
	MACHINE WEIGHT	t	33
	OIL TANK CAPACITY	L	1067

MODEL: HXYD 700/i2300H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	65	70	75
	SCREW L/D RATIO	L/D	21.5	20	20
	INJECTION CAPACITY IN THEORY	cm³	1128	1308	1502
	INJECTION WEIGHT(PS)	g	1027	1191	1367
	INJECTION PRESSURE	MPa	2088	1800	1568
	PLASTICIZING CAPACITY	g/s	90	105	120
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60+60(pour)+53(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	7000
	MOVING MOULD-PLATE STROKE	mm	950
	MAX. MOULD HEIGHT	mm	960
	MIN. MOULD HEIGHT	mm	400
	SPACE BWTWEEN TIE-BARS (W*H)	mm	1000*950
	HYDRAULIC EJECTOR FORCE	KN	200
	HYDRAULIC EJECTOR STROKE	mm	280
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	30
	MACHINE DIMENSION (LWH)	m	9.672.452.95
	MACHINE WEIGHT	t	31
	OIL TANK CAPACITY	L	1067
