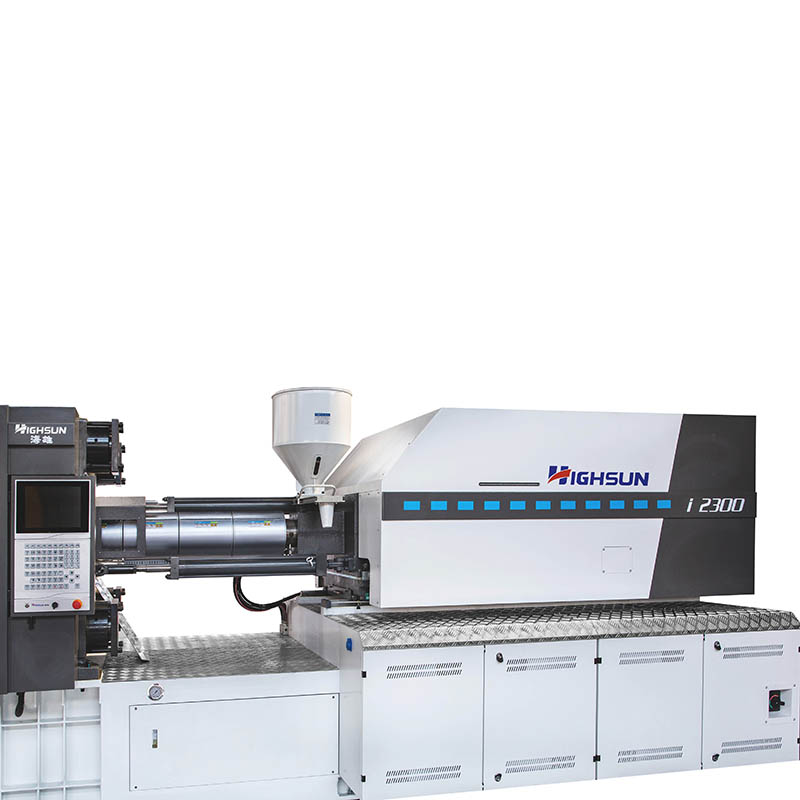

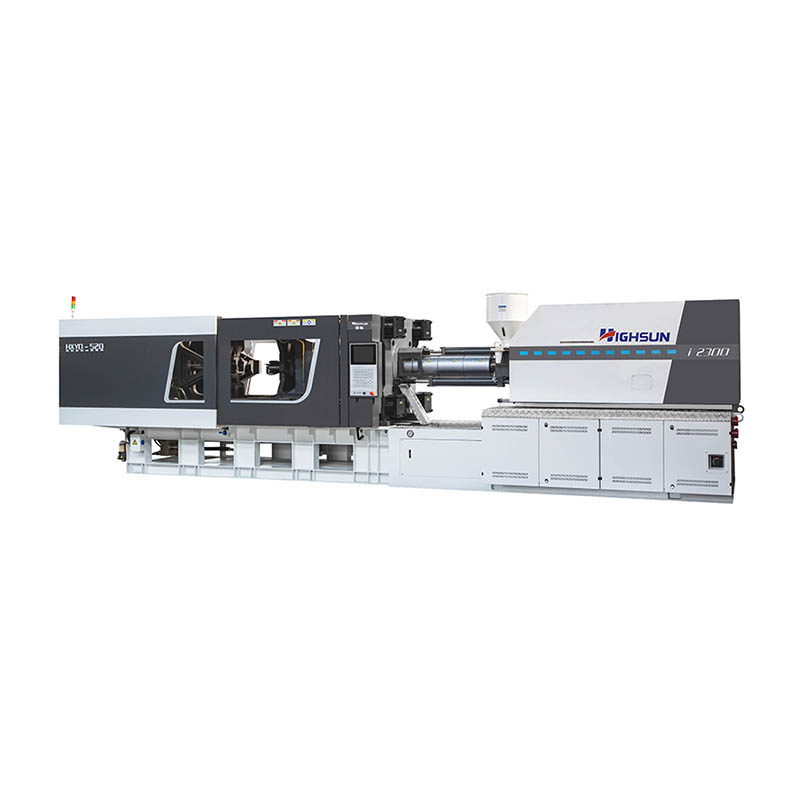

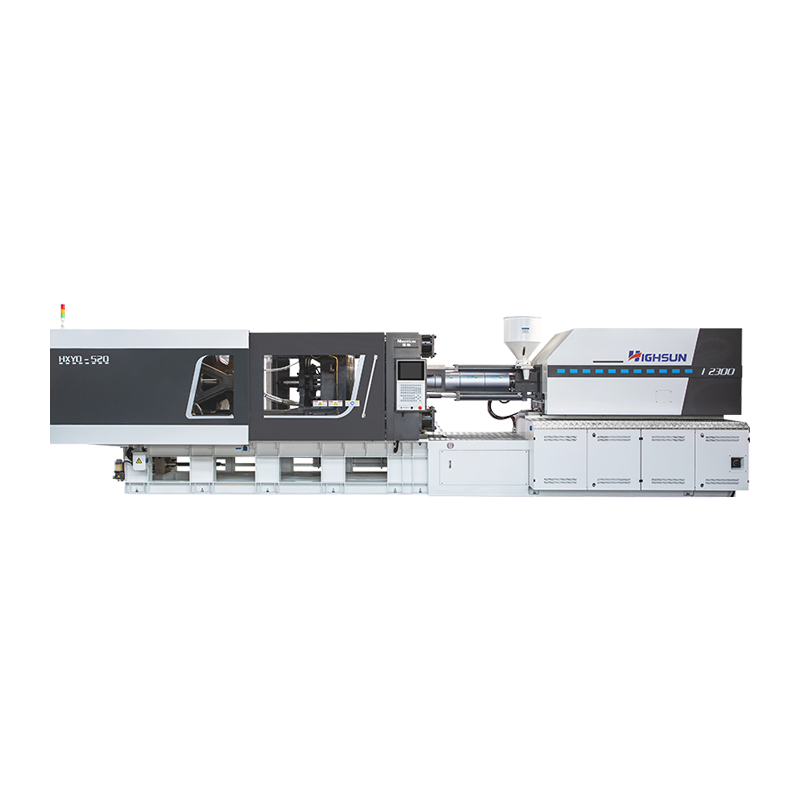

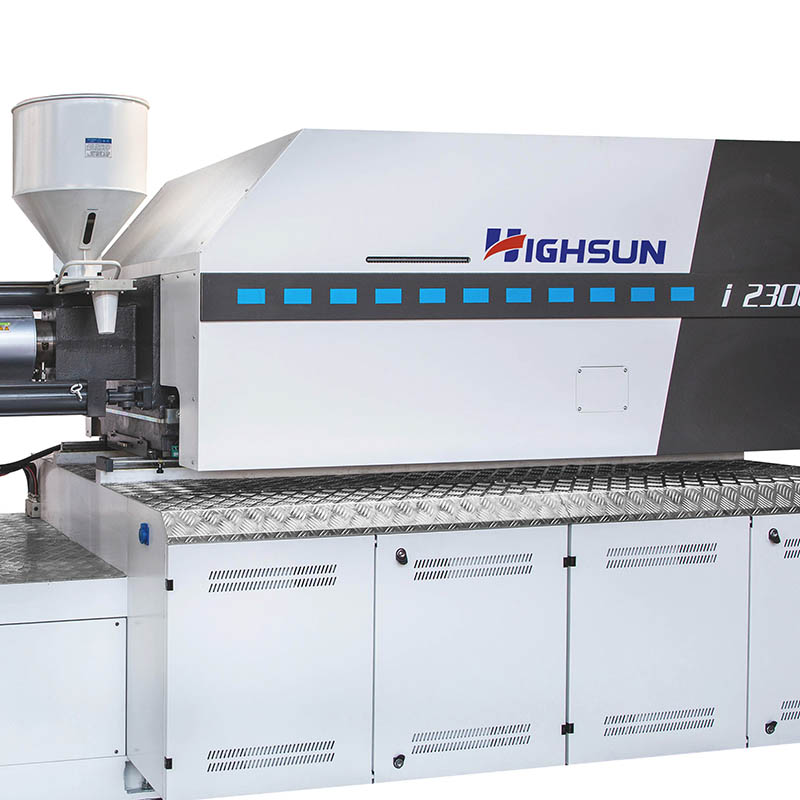

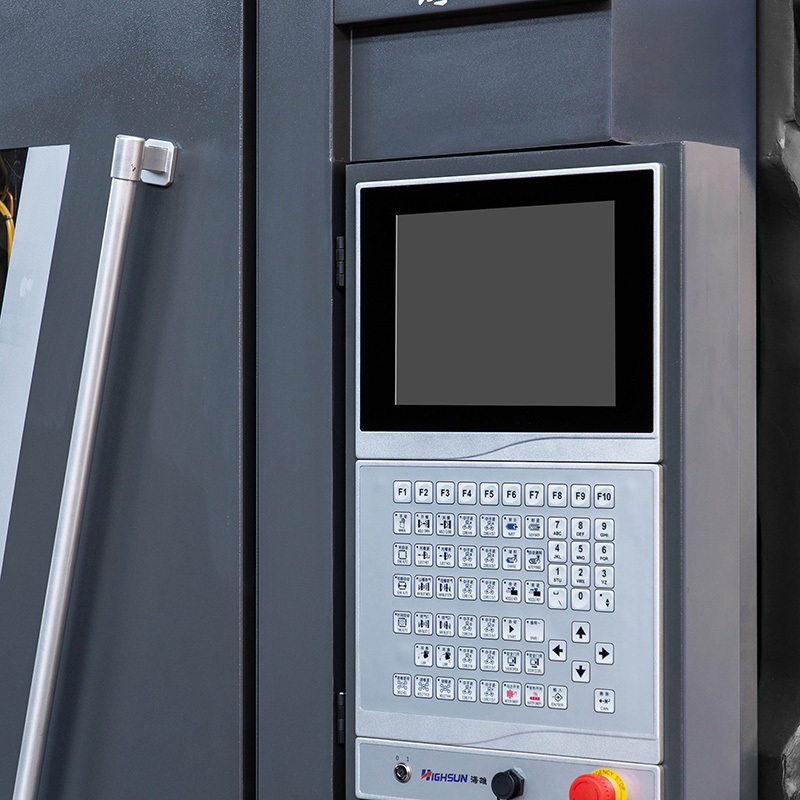

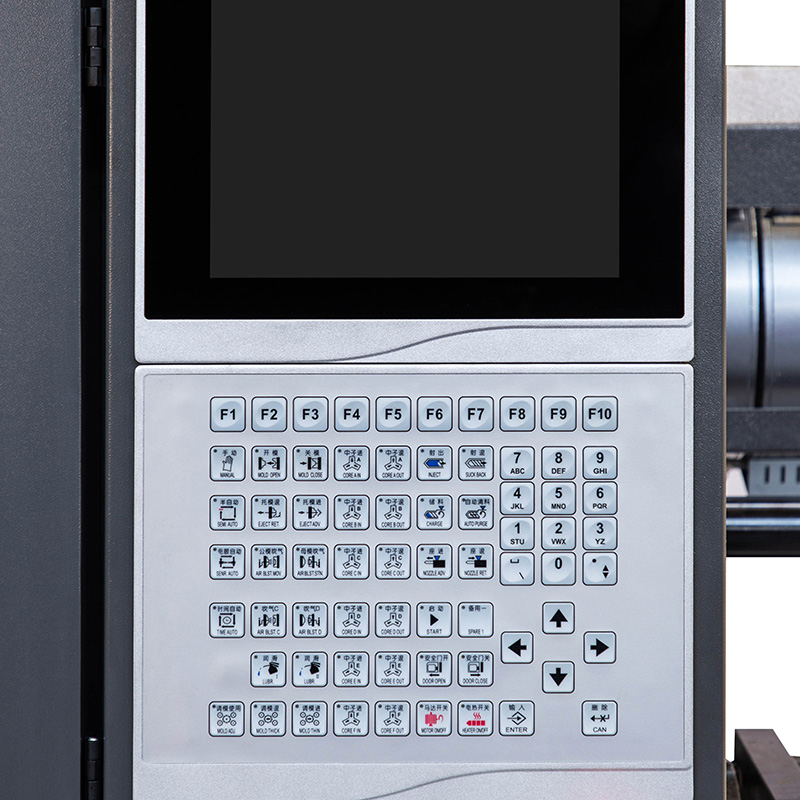

HXYD-520: HXYD hybrid injection molding machine

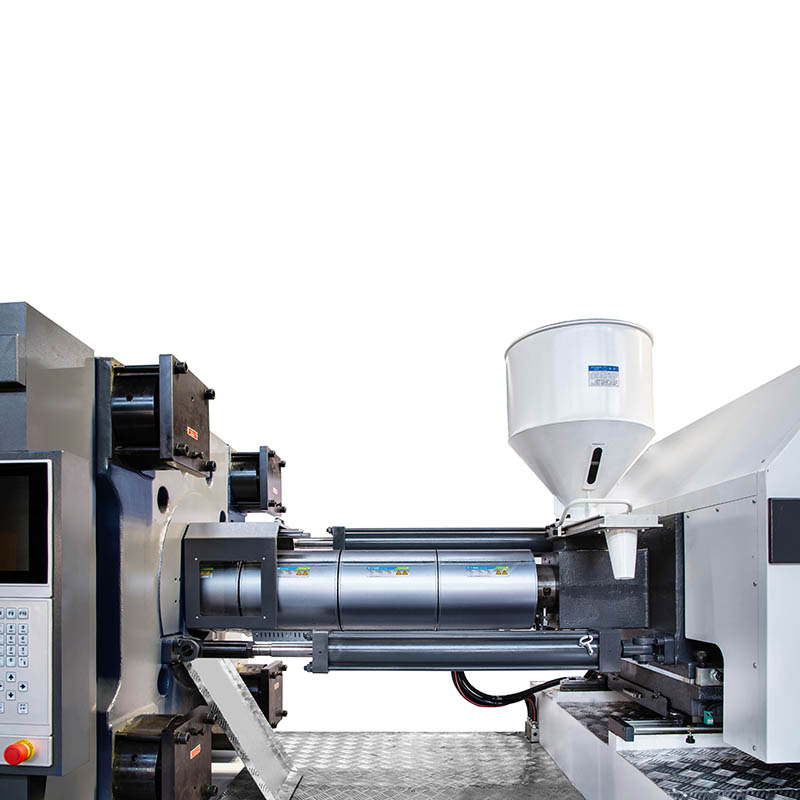

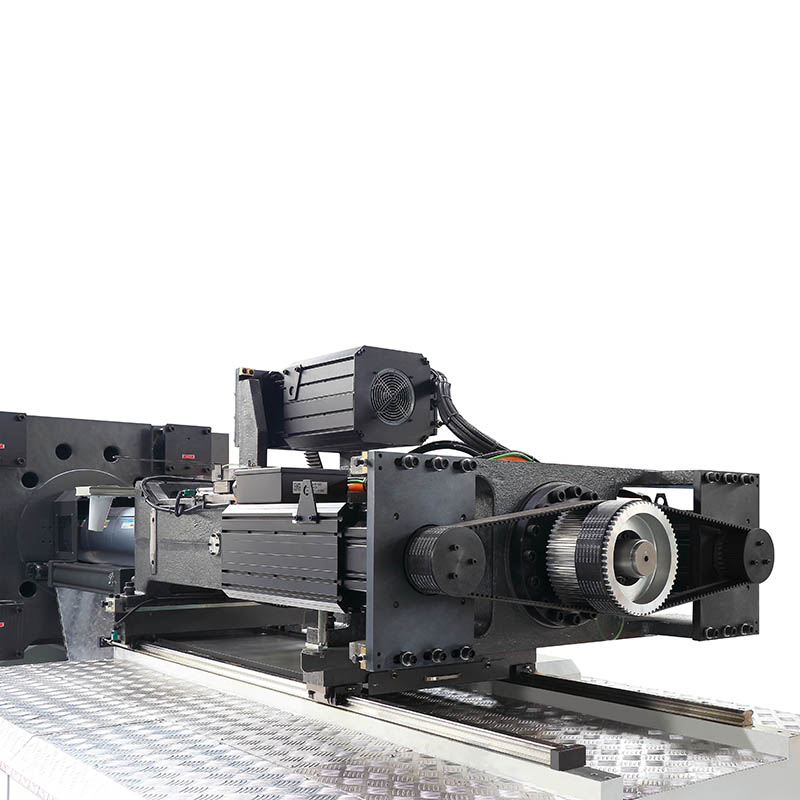

This injection molding machine employs cutting-edge hybrid oil-electric drive technology, seamlessly integrating the hydraulic system's robust clamping force with the electric system's precise injection control. The electric system, equipped with high-performance motors, delivers rapid and accurate power for material injection, ensuring high-speed and precise filling of mold cavities, thereby significantly enhancing production efficiency and product quality. Simultaneously, the hydraulic system focuses on generating an exceptional 520-ton clamping force to maintain mold tightness during injection, effectively preventing material leakage. The synergistic operation of both systems achieves highly efficient power output, surpassing the performance of traditional injection molding machines in terms of power dynamics.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-430: HXYD hybrid injection molding machine
NEXT：HXYD-600: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 530/i2300H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	65	70	75
	SCREW L/D RATIO	L/D	21.5	20	20
	INJECTION CAPACITY IN THEORY	cm³	1128	1308	1502
	INJECTION WEIGHT(PS)	g	1027	1191	1367
	INJECTION PRESSURE	MPa	2088	1800	1568
	PLASTICIZING CAPACITY	g/s	90	105	120
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60+60(pour)+59(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	5300
	MOVING MOULD-PLATE STROKE	mm	780
	MAX. MOULD HEIGHT	mm	800
	MIN. MOULD HEIGHT	mm	320
	SPACE BWTWEEN TIE-BARS (W*H)	mm	820*770
	HYDRAULIC EJECTOR FORCE	KN	181
	HYDRAULIC EJECTOR STROKE	mm	200
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	30
	MACHINE DIMENSION (LWH)	m	8.132.092.32
	MACHINE WEIGHT	t	23
	OIL TANK CAPACITY	L	650

MODEL: HXYD 530/i1600H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	60	65	70
	SCREW L/D RATIO	L/D	21.6	20	20
	INJECTION CAPACITY IN THEORY	cm³	791	929	1078
	INJECTION WEIGHT(PS)	g	720	845	980
	INJECTION PRESSURE	MPa	2000	1704	1469
	PLASTICIZING CAPACITY	g/s	75	90	105
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	5300
	MOVING MOULD-PLATE STROKE	mm	780
	MAX. MOULD HEIGHT	mm	800
	MIN. MOULD HEIGHT	mm	320
	SPACE BWTWEEN TIE-BARS (W*H)	mm	820*770
	HYDRAULIC EJECTOR FORCE	KN	181
	HYDRAULIC EJECTOR STROKE	mm	200
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	28
	MACHINE DIMENSION (LWH)	m	8.132.092.32
	MACHINE WEIGHT	t	22.3
	OIL TANK CAPACITY	L	650

MODEL: HXYD 530/i1400H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	55	60	65
	SCREW L/D RATIO	L/D	21.8	20	20
	INJECTION CAPACITY IN THEORY	cm³	665	791	929
	INJECTION WEIGHT(PS)	g	605	720	845
	INJECTION PRESSURE	MPa	2142	1800	1534
	PLASTICIZING CAPACITY	g/s	60	75	90
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+38+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	5300
	MOVING MOULD-PLATE STROKE	mm	780
	MAX. MOULD HEIGHT	mm	800
	MIN. MOULD HEIGHT	mm	320
	SPACE BWTWEEN TIE-BARS (W*H)	mm	820*770
	HYDRAULIC EJECTOR FORCE	KN	181
	HYDRAULIC EJECTOR STROKE	mm	200
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	24.3
	MACHINE DIMENSION (LWH)	m	8.132.092.32
	MACHINE WEIGHT	t	17.5
	OIL TANK CAPACITY	L	650
