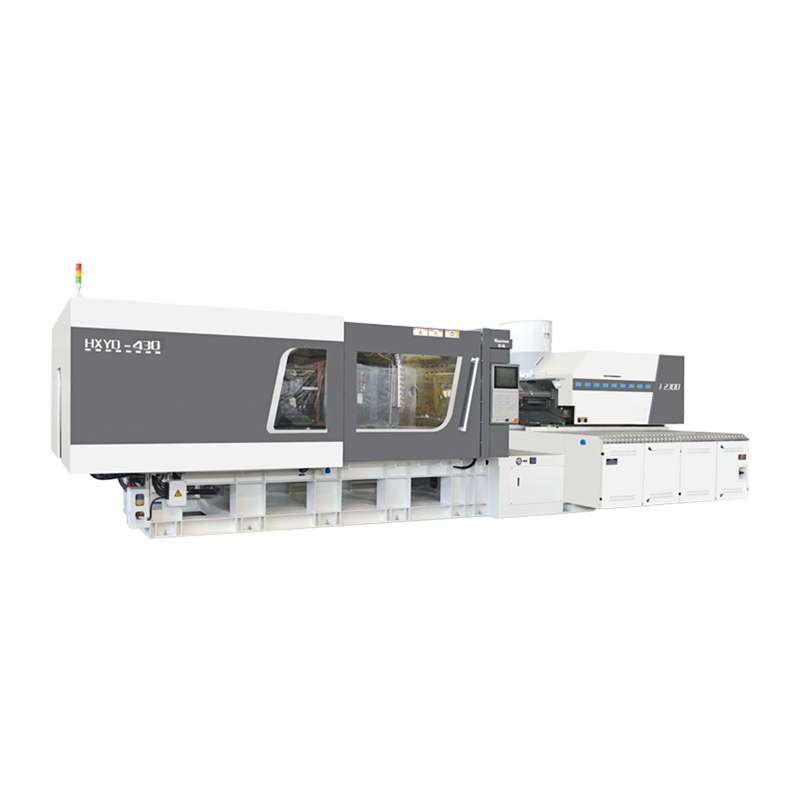

HXYD-430: HXYD hybrid injection molding machine

This injection molding machine features an intuitive and user-friendly human-machine interface with a large-screen graphical menu design that is clean and straightforward for easy operation and comprehension. Operators can effortlessly configure injection parameters such as temperature, pressure, speed, and time via the touchscreen, while also monitoring real-time equipment status, production data, and other critical information. This capability enables prompt adjustments to production processes, significantly enhancing operational convenience and workflow efficiency.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-350: HXYD hybrid injection molding machine
NEXT：HXYD-520: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 430/i1600H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	60	65	70
	SCREW L/D RATIO	L/D	21.6	20	20
	INJECTION CAPACITY IN THEORY	cm³	791	929	1078
	INJECTION WEIGHT(PS)	g	720	845	980
	INJECTION PRESSURE	MPa	2000	1704	1469
	PLASTICIZING CAPACITY	g/s	75	90	110
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+30+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	4300
	MOVING MOULD-PLATE STROKE	mm	690
	MAX. MOULD HEIGHT	mm	780
	MIN. MOULD HEIGHT	mm	280
	SPACE BWTWEEN TIE-BARS (W*H)	mm	760*710
	HYDRAULIC EJECTOR FORCE	KN	180
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	28
	MACHINE DIMENSION (LWH)	m	7.651.952.26
	MACHINE WEIGHT	t	17.9
	OIL TANK CAPACITY	L	690

MODEL: HXYD 430/i1400H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	55	60	65
	SCREW L/D RATIO	L/D	21.8	20	20
	INJECTION CAPACITY IN THEORY	cm³	665	791	929
	INJECTION WEIGHT(PS)	g	605	720	845
	INJECTION PRESSURE	MPa	2142	1800	1534
	PLASTICIZING CAPACITY	g/s	60	75	90
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+30+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	4300
	MOVING MOULD-PLATE STROKE	mm	690
	MAX. MOULD HEIGHT	mm	780
	MIN. MOULD HEIGHT	mm	280
	SPACE BWTWEEN TIE-BARS (W*H)	mm	760*710
	HYDRAULIC EJECTOR FORCE	KN	180
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	24.3
	MACHINE DIMENSION (LWH)	m	7.651.952.26
	MACHINE WEIGHT	t	17.5
	OIL TANK CAPACITY	L	690

MODEL: HXYD 430/i1000H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	50	55	60
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm³	471	570	678
	INJECTION WEIGHT(PS)	g	428	518	617
	INJECTION PRESSURE	MPa	2178	1800	1513
	PLASTICIZING CAPACITY	g/s	50	60	75
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+30(melt)+30+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	4300
	MOVING MOULD-PLATE STROKE	mm	690
	MAX. MOULD HEIGHT	mm	780
	MIN. MOULD HEIGHT	mm	280
	SPACE BWTWEEN TIE-BARS (W*H)	mm	760*710
	HYDRAULIC EJECTOR FORCE	KN	180
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	20.3
	MACHINE DIMENSION (LWH)	m	7.651.952.26
	MACHINE WEIGHT	t	17.1
	OIL TANK CAPACITY	L	690
