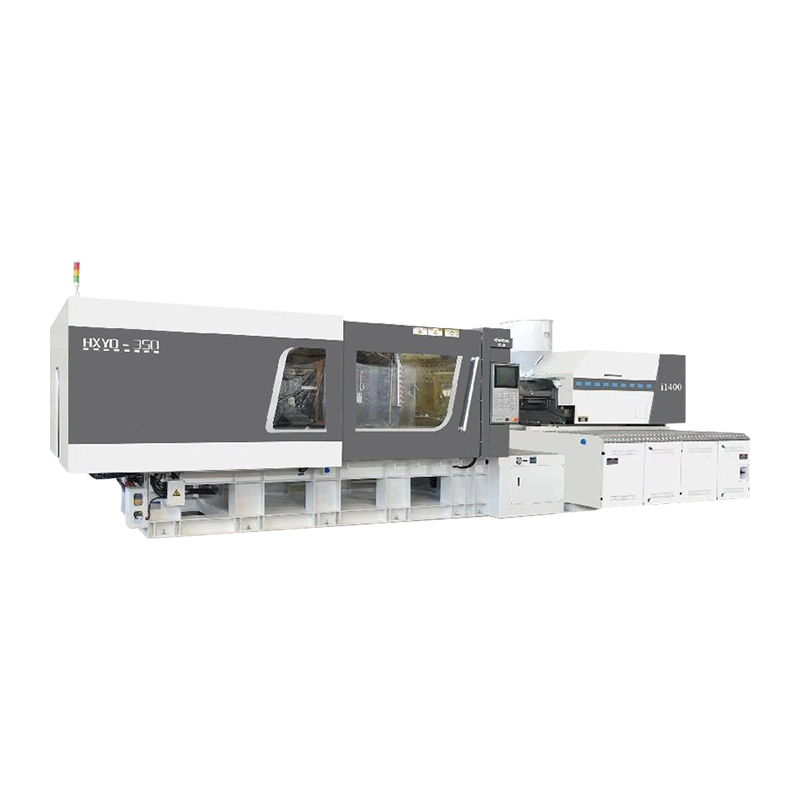

HXYD-350: HXYD hybrid injection molding machine

This machine prioritizes critical factors such as heat dissipation and protection. The optimized thermal management structure ensures that all components maintain stable temperatures within safe ranges during prolonged continuous operation, preventing overheating-induced performance degradation and malfunctions. This design provides a solid foundation for the equipment’s stable operation.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-260: HXYD hybrid injection molding machine
NEXT：HXYD-430: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 350/i1400H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	55	60	65
	SCREW L/D RATIO	L/D	21.8	20	20
	INJECTION CAPACITY IN THEORY	cm³	665	791	929
	INJECTION WEIGHT(PS)	g	605	720	845
	INJECTION PRESSURE	MPa	2142	1800	1534
	PLASTICIZING CAPACITY	g/s	60	75	90
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	67(pour)+44(melt)+47(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	3500
	MOVING MOULD-PLATE STROKE	mm	630
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W*H)	mm	710*660
	HYDRAULIC EJECTOR FORCE	KN	125
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	24.3
	MACHINE DIMENSION (LWH)	m	7.321.882.28
	MACHINE WEIGHT	t	14.1
	OIL TANK CAPACITY	L	530

MODEL: HXYD 350/i1000H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	50	55	60
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm³	471	570	678
	INJECTION WEIGHT(PS)	g	428	518	617
	INJECTION PRESSURE	MPa	2178	1800	1513
	PLASTICIZING CAPACITY	g/s	50	60	75
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+30(melt)+47(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	3500
	MOVING MOULD-PLATE STROKE	mm	630
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W*H)	mm	710*660
	HYDRAULIC EJECTOR FORCE	KN	125
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	20.3
	MACHINE DIMENSION (LWH)	m	7.321.882.21
	MACHINE WEIGHT	t	13.5
	OIL TANK CAPACITY	L	530

MODEL: HXYD 350/i900H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	45	50	55
	SCREW L/D RATIO	L/D	22.2	20	20
	INJECTION CAPACITY IN THEORY	cm³	381	471	570
	INJECTION WEIGHT(PS)	g	347	428	518
	INJECTION PRESSURE	MPa	2469	2000	1653
	PLASTICIZING CAPACITY	g/s	42	50	60
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+25(melt)+47(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	3500
	MOVING MOULD-PLATE STROKE	mm	630
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W*H)	mm	710*660
	HYDRAULIC EJECTOR FORCE	KN	125
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	16.83
	MACHINE DIMENSION (LWH)	m	7.321.882.21
	MACHINE WEIGHT	t	13.2
	OIL TANK CAPACITY	L	530
