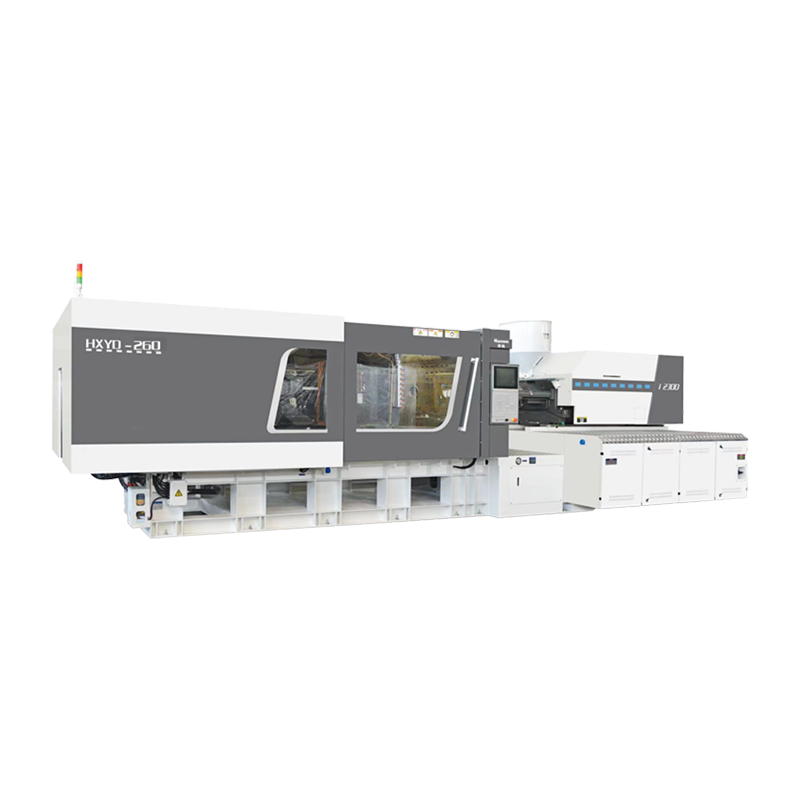

HXYD-260: HXYD hybrid injection molding machine

The HXYD260T injection molding machine combines the hydraulic system's high clamping force with the full-electric drive's high-precision control, making it widely applicable in precision manufacturing fields such as consumer electronics, automotive parts, and medical packaging. Its design integrates energy efficiency, high productivity, and intelligent features, particularly suited for mass production of small to medium-sized, high-precision components.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-200: HXYD hybrid injection molding machine
NEXT：HXYD-350: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 260/i1000H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	50	55	60
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm³	471	570	678
	INJECTION WEIGHT(PS)	g	428	518	617
	INJECTION PRESSURE	MPa	2128	1800	1513
	PLASTICIZING CAPACITY	g/s	50	60	75
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+30(melt)+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2600
	MOVING MOULD-PLATE STROKE	mm	530
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	610*560
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	16.83
	MACHINE DIMENSION (LWH)	m	6.611.632.15
	MACHINE WEIGHT	t	10.2
	OIL TANK CAPACITY	L	412

MODEL: HXYD 260/i900H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	45	50	55
	SCREW L/D RATIO	L/D	22.2	20	20
	INJECTION CAPACITY IN THEORY	cm³	381	471	570
	INJECTION WEIGHT(PS)	g	347	428	518
	INJECTION PRESSURE	MPa	2469	2000	1653
	PLASTICIZING CAPACITY	g/s	42	50	60
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+25(melt)+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2600
	MOVING MOULD-PLATE STROKE	mm	530
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	610*560
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	13.55
	MACHINE DIMENSION (LWH)	m	6.611.632.15
	MACHINE WEIGHT	t	10
	OIL TANK CAPACITY	L	412

MODEL: HXYD 260/i650H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	40	45	50
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm³	263	334	412
	INJECTION WEIGHT(PS)	g	240	303	375
	INJECTION PRESSURE	MPa	2531	2000	1620
	PLASTICIZING CAPACITY	g/s	30	42	50
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	47(pour)+25(melt)+38(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2600
	MOVING MOULD-PLATE STROKE	mm	530
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	610*560
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	13.55
	MACHINE DIMENSION (LWH)	m	6.611.632.15
	MACHINE WEIGHT	t	9.7
	OIL TANK CAPACITY	L	412
