HXYD Hybrid Machine

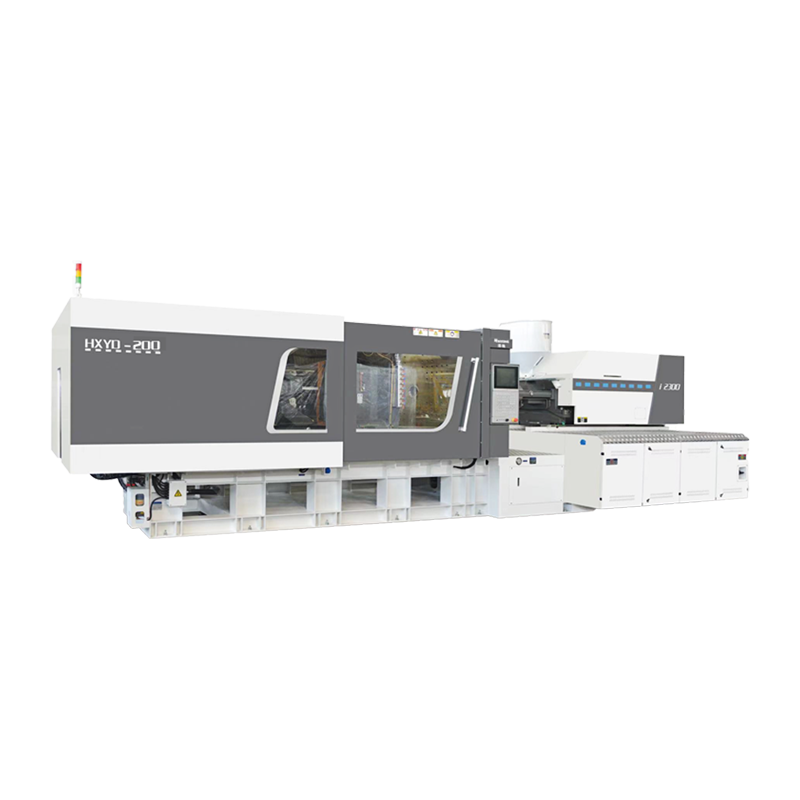

HXYD-200: HXYD hybrid injection molding machine

The HXYD hybrid injection molding machine combines the hydraulic system’s high clamping force with the precision and energy-saving benefits of all-electric systems, making it ideal for energy-sensitive production environments demanding high stability. The 200-ton model primarily targets small to medium-sized precision product sectors, such as consumer electronics, medical packaging, and automotive components, addressing industrial needs for high precision and low energy consumption.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-160: HXYD hybrid injection molding machine
NEXT：HXYD-260: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 200/i900H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	45	50	55
	SCREW L/D RATIO	L/D	22.2	20	20
	INJECTION CAPACITY IN THEORY	cm³	381	471	570
	INJECTION WEIGHT(PS)	g	347	428	518
	INJECTION PRESSURE	MPa	2469	2000	1653
	PLASTICIZING CAPACITY	g/s	42	50	60
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	60(pour)+25(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2000
	MOVING MOULD-PLATE STROKE	mm	550
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	620*570
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	13.55
	MACHINE DIMENSION (LWH)	m	6.111.62.1
	MACHINE WEIGHT	t	9.3
	OIL TANK CAPACITY	L	240

MODEL: HXYD 200/i650H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	40	45	50
	SCREW L/D RATIO	L/D	22.5	20	20
	INJECTION CAPACITY IN THEORY	cm³	263	334	412
	INJECTION WEIGHT(PS)	g	240	303	375
	INJECTION PRESSURE	MPa	2531	2000	1620
	PLASTICIZING CAPACITY	g/s	30	42	50
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	47(pour)+25(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2000
	MOVING MOULD-PLATE STROKE	mm	550
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	620*570
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	13
	MACHINE DIMENSION (LWH)	m	6.111.62.1
	MACHINE WEIGHT	t	9.1
	OIL TANK CAPACITY	L	240

MODEL: HXYD 200/i450H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	36	40	45
	SCREW L/D RATIO	L/D	23.3	21	21
	INJECTION CAPACITY IN THEORY	cm³	183	226	286
	INJECTION WEIGHT(PS)	g	166	205	260
	INJECTION PRESSURE	MPa	2469	2000	1580
	PLASTICIZING CAPACITY	g/s	20	30	42
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	40(pour)+21(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	2000
	MOVING MOULD-PLATE STROKE	mm	550
	MAX. MOULD HEIGHT	mm	600
	MIN. MOULD HEIGHT	mm	230
	SPACE BWTWEEN TIE-BARS (W*H)	mm	620*570
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	13
	MACHINE DIMENSION (LWH)	m	6.111.62.1
	MACHINE WEIGHT	t	7.8
	OIL TANK CAPACITY	L	240
