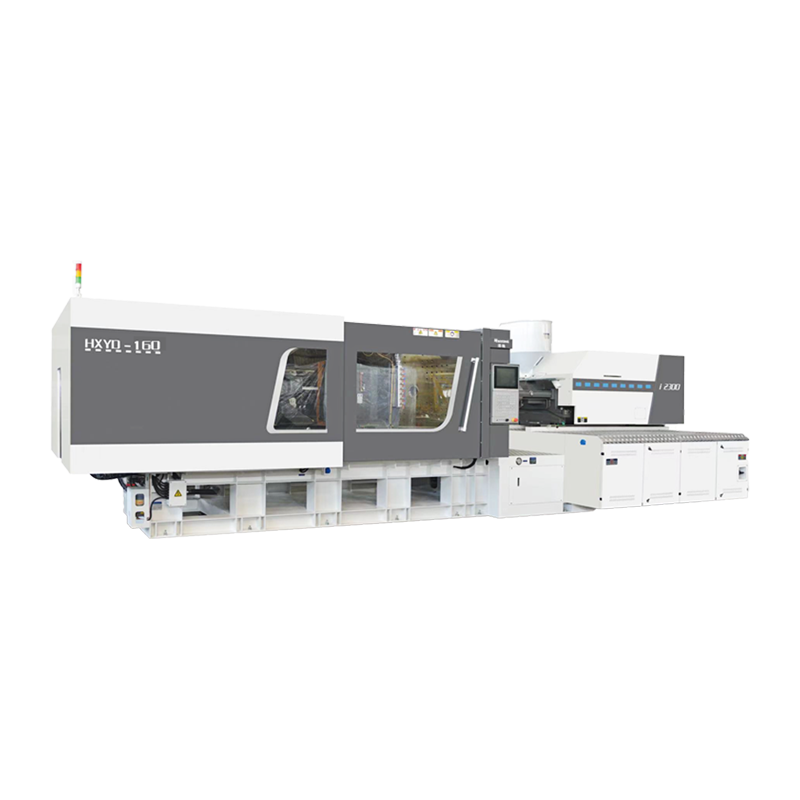

HXYD-160: HXYD hybrid injection molding machine

This injection molding machine is equipped with industry-leading electronic control systems and ultra-high-precision sensors, enabling ultra-precise regulation of critical parameters such as shot volume, injection speed, pressure, and temperature. This significantly reduces defect rates and ensures highly consistent, stable product quality.
The high responsiveness of the electric drive allows the machine to swiftly and accurately execute complex injection actions, seamlessly meeting stringent requirements for product details and surface quality. This capability fulfills the demands of high-end product manufacturing.

The HXYD60T hybrid injection molding machine the power advantages of traditional hydraulic injection molding machines with the high-precision control characteristics of all-electric machines, making it particularly suitable for producing energy consumption-sensitive small-to-medium-sized products requiring precision molding. By employing hybrid electro-hydraulic technology, it reduces energy consumption, enhances operational stability, and adapts to complex process requirements.

E-mail: haixiong@highsun-machinery.com

PREV：HXYD-130: HXYD hybrid injection molding machine
NEXT：HXYD-200: HXYD hybrid injection molding machine

Description
Video

MODEL: HXYD 160/i650H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	40	45	50
	SCREW L/D RATIO	L/D	22.5	20	20
	INJECTION CAPACITY IN THEORY	cm³	263	334	412
	INJECTION WEIGHT(PS)	g	240	303	375
	INJECTION PRESSURE	MPa	2531	2000	1620
	PLASTICIZING CAPACITY	g/s	30	42	50
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	47(pour)+25(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	1600
	MOVING MOULD-PLATE STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BWTWEEN TIE-BARS (W*H)	mm	570*520
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	11
	MACHINE DIMENSION (LWH)	m	5.81.42.0
	MACHINE WEIGHT	t	7.5
	OIL TANK CAPACITY	L	190

MODEL: HXYD 160/i450H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	36	40	45
	SCREW L/D RATIO	L/D	23.3	21	21
	INJECTION CAPACITY IN THEORY	cm³	183	226	286
	INJECTION WEIGHT(PS)	g	166	205	260
	INJECTION PRESSURE	MPa	2469	2000	1580
	PLASTICIZING CAPACITY	g/s	20	30	42
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	40(pour)+21(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	1600
	MOVING MOULD-PLATE STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BWTWEEN TIE-BARS (W*H)	mm	570*520
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	11
	MACHINE DIMENSION (LWH)	m	5.81.42.0
	MACHINE WEIGHT	t	7.5
	OIL TANK CAPACITY	L	190

MODEL: HXYD 160/i350H
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	32	36	40
	SCREW L/D RATIO	L/D	23.6	21	21
	INJECTION CAPACITY IN THEORY	cm³	144	183	226
	INJECTION WEIGHT(PS)	g	131	166	205
	INJECTION PRESSURE	MPa	2531	2000	1620
	PLASTICIZING CAPACITY	g/s	16	22	30
	SCREW SPEED	rpm	400
	INJECTION VELOCITY	mm/s	350
	MOTOR POWER	KW	38(pour)+17(melt)+30(oil)
CLAMPING UNIT	CLAMPING FORCE	KN	1600
	MOVING MOULD-PLATE STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BWTWEEN TIE-BARS (W*H)	mm	570*520
	HYDRAULIC EJECTOR FORCE	KN	78
	HYDRAULIC EJECTOR STROKE	mm	150
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	16
	HEATING CAPACITY	KW	10.5
	MACHINE DIMENSION (LWH)	m	5.81.42.0
	MACHINE WEIGHT	t	7.3
	OIL TANK CAPACITY	L	190
