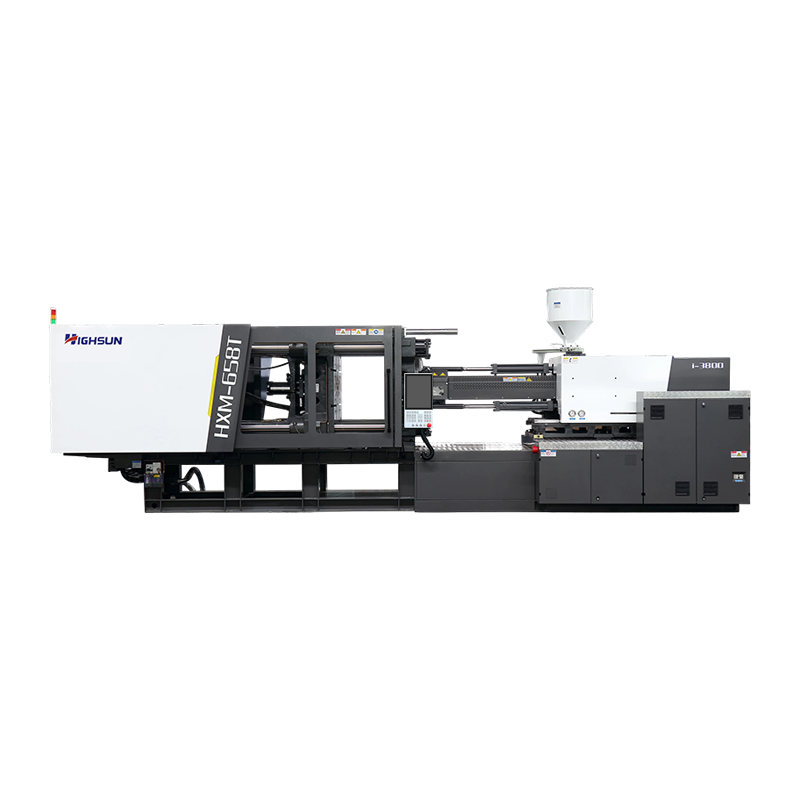

HXM658-T: HXM optimized edition for painting bucket
HXM Optimization For Crate / Painting Bucket

HXM658-T: HXM optimized edition for painting bucket

The entire frame of the Model 658 undergoes aging treatment to eliminate internal stresses, ensuring long-term stability under high-load operations. Core components are manufactured from high-strength alloy steel, coupled with precision guide rails and ball screw drive systems, achieving a molding accuracy within ±0.1mm. This effectively guarantees the roundness of the paint bucket body, the flatness of the weld seams, and the sealing integrity of the bucket opening, meeting packaging quality standards for various industries such as food-grade and chemical-grade applications.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM658-T: HXM optimized edition for painting bucket
PREV：HXM750-T: HXM optimized edition for painting bucket
NEXT：HXM558-T: HXM optimized edition for painting bucket

  • MODEL:HXM658-II/i5700

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    D

    INJECTION UNIT

    SCREW DIAMETER

    mm

    85

    90

    95

    100

    SCREW L/D RATIO

    L/D

    22

    21

    20

    19

    INJECTION CAPACITY IN THEORY

    cm3

    2610

    2926

    3260

    3612

    INJECTION WEIGHT(PS)

    g

    2375

    2663

    2967

    3287

    oz

    83.7

    93.9

    104.6

    115.9

    INJECTION PRESSURE

    MPa

    221

    197

    177

    159

    INJECTION RATE

    g/s

    496

    556

    620

    687

    PLASTICIZING CAPACITY

    g/s

    70

    80

    85

    90

    SCREW SPEED

    rpm

    145

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    6580

    MOVING MOULD-PLATE STROKE

    mm

    970

        MAX. MOULD HEIGHT

    mm

    950

    MIN. MOULD HEIGHT

    mm

    350

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    970*920

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    260

    EJECTOR NUMBER

    n

    17

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    53.7

    MACHINE DIMENSION (L*W*H)

    m

    9.52*2.27*2.65

    MACHINE WEIGHT

    t

    30.8

    OIL TANK CAPACITY

    L

    850
