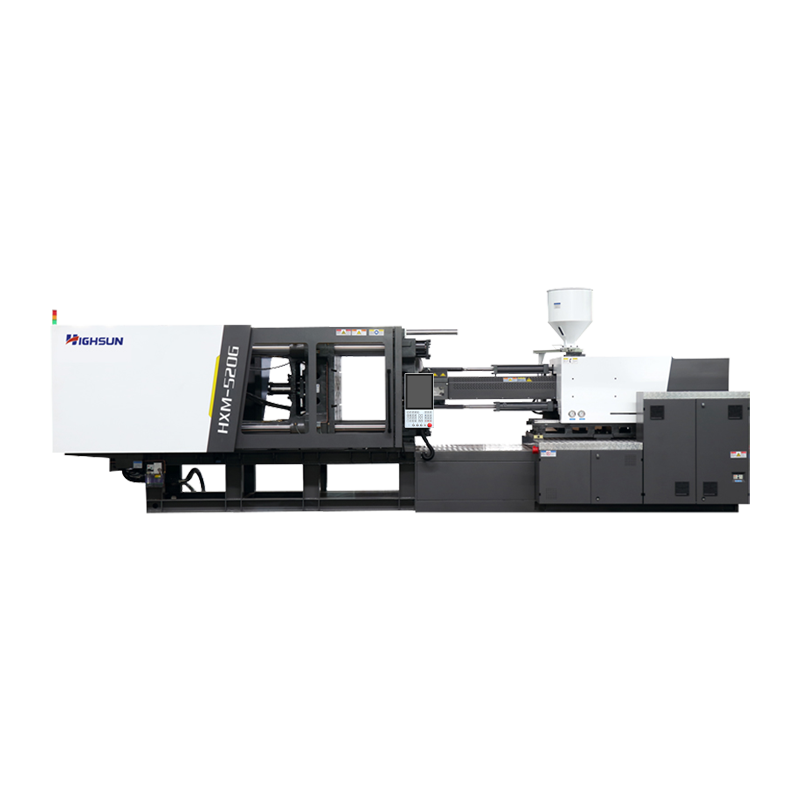

HXM520-T: HXM optimized edition for painting bucket
HXM Optimization For Crate / Painting Bucket

HXM520-T: HXM optimized edition for painting bucket

Leveraging advanced technology and optimized design, the 520T excels in production efficiency. Its rapid plasticizing speed, precise injection control, and high-speed mold opening/closing movements significantly shorten the production cycle per crate. In large-scale manufacturing, this machine boosts production capacity, enabling businesses to generate higher economic returns.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM520-T: HXM optimized edition for painting bucket
PREV：HXM480-T: HXM optimized edition for painting bucket
NEXT：HXM580-T: HXM optimized edition for painting bucket

  • MODEL: HXM520-G/4300

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    95

    100

    SCREW L/D RATIO

    L/D

    19

    19

    INJECTION CAPACITY IN THEORY

    cm³

    2977

    3377

    INJECTION WEIGHT(PS)

    g

    2709

    3073



    oz

    95.5

    108.3

    INJECTION PRESSURE

    MPa

    146

    131

    INJECTION RATE

    g/s

    668

    832

    PLASTICIZING CAPACITY

    g/s

    95

    110

    SCREW SPEED

    rpm

    170

    190

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    5200

    MOVING MOULD-PLATE STROKE

    mm

    830

        MAX. MOULD HEIGHT

    mm

    820

    MIN. MOULD HEIGHT

    mm

    300

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    820*800

    HYDRAULIC EJECTOR FORCE

    KN

    125

    HYDRAULIC EJECTOR STROKE

    mm

    210

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    40+47

    HEATING CAPACITY

    KW

    27

    MACHINE DIMENSION (L*W*H)

    m

    8.05*2.07*2.41

    MACHINE WEIGHT

    t

    17.7

    OIL TANK CAPACITY

    L

    630
