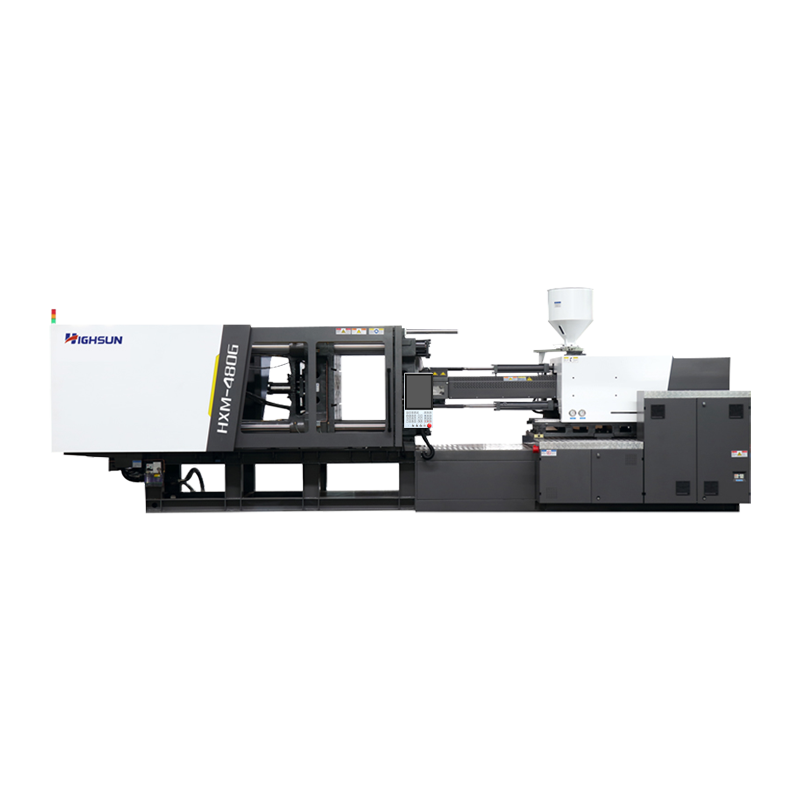

HXM480-T: HXM optimized edition for painting bucket
HXM Optimization For Crate / Painting Bucket

HXM480-T: HXM optimized edition for painting bucket

480T Fruit Crate Injection Molding Machine
The 480T is specifically designed for high-efficiency production of agricultural transport crates and storage turnover bins, optimized for molding eco-friendly plastics such as HDPE and PP.

Core Advantages:

High Clamping Force: Ensures stable mold locking for large-scale molds, accommodating complex crate structures with precision.

Energy Efficiency: Utilizes servo motors and variable-frequency control technology, reducing energy consumption by 30%-50% while achieving a daily output of thousands of units.

Automation Integration: Equipped with robotic arms, conveyor belts, and an intelligent temperature control system, enabling end-to-end automation from raw material processing to finished product sorting. This minimizes manual intervention and enhances product yield

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM480-T: HXM optimized edition for painting bucket
PREV：HXM368-T: HXM optimized edition for painting bucket
NEXT：HXM520-T: HXM optimized edition for painting bucket

  • MODEL: HXM480-G/3700

    TECHNICAL PARAMETER TABLE

    A

    B

    INJECTION UNIT

    SCREW DIAMETER

    mm

    90

    95

    SCREW L/D RATIO

    L/D

    19

    19

    INJECTION CAPACITY IN THEORY

    cm³

    2544

    2835

    INJECTION WEIGHT(PS)

    g

    2315

    2580



    oz

    81.6

    91.0

    INJECTION PRESSURE

    MPa

    148

    133

    INJECTION RATE

    g/s

    657

    732

    PLASTICIZING CAPACITY

    g/s

    99

    108

    SCREW SPEED

    rpm

    200

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    4800

    MOVING MOULD-PLATE STROKE

    mm

    770

        MAX. MOULD HEIGHT

    mm

    800

    MIN. MOULD HEIGHT

    mm

    280

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    770*740

    HYDRAULIC EJECTOR FORCE

    KN

    125

    HYDRAULIC EJECTOR STROKE

    mm

    210

    EJECTOR NUMBER

    n

    13

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    25

    MACHINE DIMENSION (L*W*H)

    m

    7.63*2.02*2.32

    MACHINE WEIGHT

    t

    14.8

    OIL TANK CAPACITY

    L

    530
