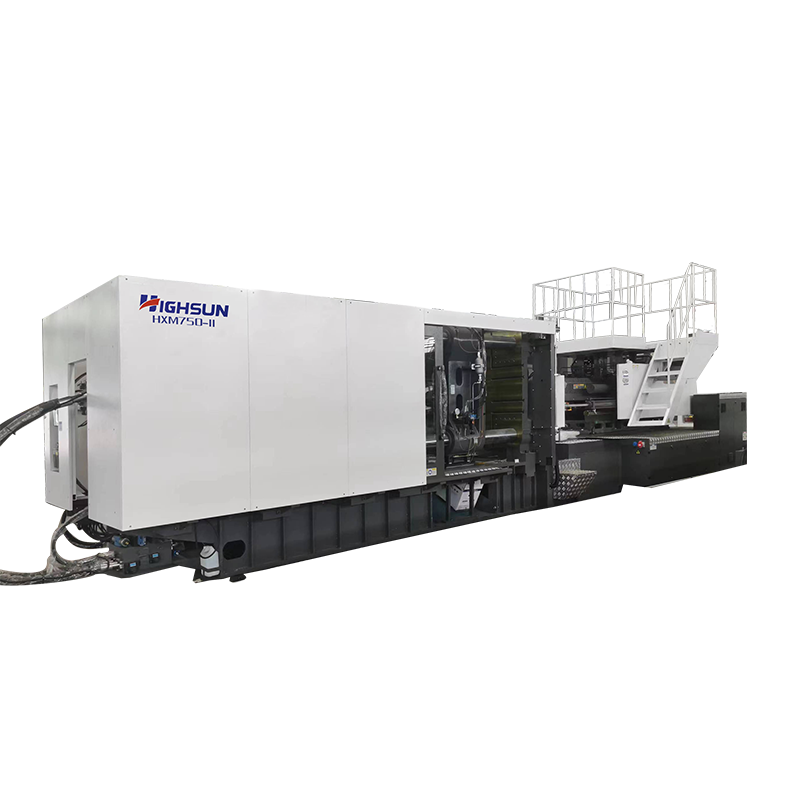

HXM750-II: HXM servo injection molding machine
HXM Servo Machine

HXM750-II: HXM servo injection molding machine

Test results demonstrate 40%-60% lower energy consumption compared to conventional machines in standard plastic product production. Additionally, the servo drive system’s ultra-fast response enables swift transitions between actions like mold opening/closing, injection, and ejection, drastically shortening cycle times. For example, in plastic packaging container production, output per unit time can increase by over 30%, significantly boosting efficiency.

E-mail: haixiong@highsun-machinery.com
Contact Us
  • HXM750-II: HXM servo injection molding machine
PREV：No previous article
NEXT：No next article

  • MODEL: HXM750-II/6100

    TECHNICAL PARAMETER TABLE

    A

    B

    C

    D

    INJECTION UNIT

    SCREW DIAMETER

    mm

    90

    95

    100

    105

    SCREW L/D RATIO

    L/D

    23

    22

    21

    20

    INJECTION CAPACITY IN THEORY

    cm³

    2861

    3188

    3534

    3894

    INJECTION WEIGHT(PS)

    g

    2603

    2901

    3216

    3543

    oz

    91.8

    102.3

    113.4

    124.9

    INJECTION PRESSURE

    MPa

    213

    191

    173

    157

    INJECTION RATE

    g/s

    546

    608

    674

    743

    PLASTICIZING CAPACITY

    g/s

    76

    85

    90

    98

    SCREW SPEED

    rpm

    110

    CLAMPING UNIT

    CLAMPING FORCE

    KN

    7500

    MOVING MOULD-PLATE STROKE

    mm

    1020

        MAX. MOULD HEIGHT

    mm

    980

    MIN. MOULD HEIGHT

    mm

    400

    SPACE BWTWEEN TIE-BARS (W*H)

    mm

    1020*970

    HYDRAULIC EJECTOR FORCE

    KN

    227

    HYDRAULIC EJECTOR STROKE

    mm

    280

    EJECTOR NUMBER

    n

    21

    OTHERS

    PUMP PRESSURE

    MPa

    17.5

    MOTOR POWER

    KW

    40+40

    HEATING CAPACITY

    KW

    62.2

    MACHINE DIMENSION (L*W*H)

    m

    10.62*2.34*2.77

    MACHINE WEIGHT

    t

    36.4

    OIL TANK CAPACITY

    L

    1000
